Summary of Contents for horeca 1638

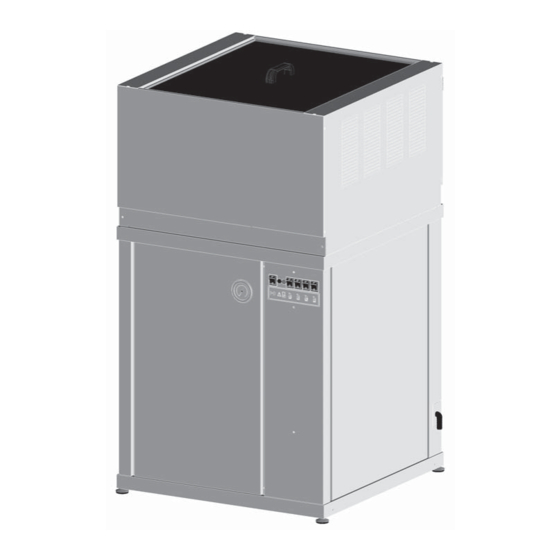

- Page 1 1638 37.5kW steam generator 1645 45kW steam generator 1672 60kW steam generator Use and Maintenance 16xx Geyser 58L-ed4010...
- Page 2 16xx Geyser 58L-ed4010...
-
Page 3: Table Of Contents
16xx GEYSER 58 Index Index 1. Introduction 1.1. Content and purpose of this manual 1.2. Safety precautions 1.3. Manufacturer’s liability 2. Appliance description 2.1. Appliance identification 2.2. Technical data 3. Installation 3.1. Goods receiving 3.2. What’s inside the packing 3.3. Electrical connections 3.4. -
Page 4: Introduction
Introduction 16xx GEYSER 58 1. Introduction Use of the appliance is allowed only to professional operators who have been trained on how to operate the appliance. In any case the use of the appliance is forbidden to children under 14 years of age. 1.1. -
Page 5: Appliance Description
2.1. Do not alter or modify in any way the data recorded on the tag. Do not remove the tag. 2.2. Technical data For dimensions see Figure 2.2. Type 1638 1645 1672 Power supply 400V 3N AC 50Hz Water inlet Ø... - Page 6 16xx GEYSER 58 Figure 2.2 - Appliance dimensions Models without tank. Types 1638, 1645, 1672 Power inlet Steam outlet Boiler drain Water inlet Models with top tank. Types 1638, 1645, 1672 Power inlet Steam outlet Boiler drain Condensate inlet Water inlet Overflow...
-
Page 7: Installation
If it does not, call a technician immediately, as the safety of the equipment is impaired. Table 3.5 - Data for electric connection Type Plug Power cord 1638 Type H05VV-F 5 x 25mm 1645 IEC 60309 plug 3P+N+T 400V 3N 100 A... - Page 8 Installation 16xx GEYSER 58 Figure 3.1 - List of inlets and outlets for connection Figure 3.2 - Water and steam connection Safety valve exhaust Steam outlet (female thread G 1/2") Boiler discharge outlet (female thread G 1/2") Condensate return inlet (female thread G 1/2") Water inlet (fitting for hose Ø16mm) Overflow (fitting for hose Ø32mm) Water tank discharge (female thread G 1/4")
-
Page 9: Use
16xx GEYSER 58 4. Use the steam outlet valve (B-Figure 3.1); Turn on the main switch (1). If the pressure vessel is empty, the pump will start to fill it with water. When the water reaches working level, light (3) turns on. The unit described in this manual is an electrically operated steam Turn on as many heating elements as needed (4). -
Page 10: Maintenance
Maintenance 16xx GEYSER 58 5. Maintenance Figure 5.1 - Cleaning the water tank and filter 5.1. Maintenance allowed to the user 5.1.1. Every week • Clean appliance body with a soft non abrasive cloth. WARNING: Do not use aggressive detergents or sol- vents that may ruin appliance parts •... -
Page 11: Maintenance To Be Carried Out By The Technician Every Year
16xx GEYSER 58 Maintenance 5.2. Maintenance to be carried out by the Figure 5.4 - Cleaning of the components to be carried out by the technician technician every year WARNING: The maintenance operations described in this chapter must only be carried out by qualified personnel. Use only Original spare parts. -
Page 12: Troubleshooting
Troubleshooting 16xx GEYSER 58 6. Troubleshooting 6.1. Solution to common problems, allowed to the user Please refer to Table 6.1 for the solutions to most common problems. CAUTION – DO NOT ATTEMPT TO REPAIR THE APPLIANCE WITHOUT PROPER ADVICE Call the service centre in the following cases: •... -
Page 13: Solution To Failures, Allowed Only To The Authorised Service Center
16xx GEYSER 58 Troubleshooting 6.2. Solution to failures, allowed only to the authorised service center WARNING - This chapter is for the exclusive use of an authorised technician. For maintenance and replacement of compo- nents always refer to a service center. Table 6.2 - Solution of failures Symptom Cause... -
Page 14: Appliance Stop
Appliance stop 16xx GEYSER 58 7. Appliance stop Figure 7.1. – How to secure the appliance to the pallet 7.1. Protracted stoppage Should the appliance have to remain out of action for a lengthy pe- riod: Discharge the boiler Close all connections with water, steam and condensate cir- cuits Disconnect the electrical power Clean dust and fluff from the cabinet... -
Page 15: Technical Drawings
16xx GEYSER 58 Technical drawings 8. Technical drawings The drawings in this chapter can be used only by the support service. Do not perform any activity on the appliance without written authorization by the manufacturer. 16xx Geyser 58L-ed4010... - Page 16 Technical drawings 16xx GEYSER 58 16xx Geyser 58L-ed4010...
- Page 17 CALDERA TERMOSTATO SERBATOIO TANK THERMOSTAT THERMOSTAT THERMOSTAT TERMOSTATO TS1 - TS2 TERMOSTATO SICUREZZA SAFETY THERMOSTAT SICHERHEITSTHERMOSTAT THERMOSTAT DE SÉCURITÉ TERMOSTATO DE SEGURIDAD Part Descrizione Description Beschreibung Designation Descripción ELECTRIC DIAGRAM - SCHEMA ELETTRICO ed 0807 Mod. 1638-1645-1672 16xx Geyser 58L-ed4010...
-
Page 18: Spare Parts Diagrams
Spare parts 16xx GEYSER 58 9. Spare parts diagrams Please refer to the following diagrams when ordering spare parts. To avoid mistakes, always provide code and description of the required spare part. Always use original spare parts. 16xx Geyser 58L-ed4010... - Page 19 16xx GEYSER 58 Spare parts VALVOLA RITEGNO CHECK VALVE RÜCKSCHLAGVENTIL VANNE A GRAVITE LV. FLUJO SIMPLE Á VALV. SICUREZZA SAFETY VALVE SICHERHEITSVENTIL VANNE SECURITE LV. SEGURIDAD Á G1419001 ISOLAMENTO INSULATION ISOLIERUNG ISOLEMENT AISLAMIENTO G1411001 CORPO CALDAIA PRESSURE VESSEL KESSEL GENERATEUR CALDERA E033225 ELETTROVALVOLA...
- Page 20 HEIZSTAB RESISTANCE RESIST. 0250328 GAURNIZIONE GASKET DICHTUNG JOINT EMPAQUETADURA 0270213 FLANGIA FLANGE FLANSCH FLASQUE ARANDELA Code Q.ty Descrizione Description Beschreibung Designation Descripción G14614 37.5kW HEATING ELEMENTS - GRUPPO RESISTENZE 37,5kW ed 3507 Part of: 1638 Geyser 37,5kW 16xx Geyser 58L-ed4010...
- Page 21 TERMINAL BOARD KLEMME BORNE BORNE 0220305 MORSETTO TERMINAL BOARD KLEMME BORNE BORNE 0220202 TAPPO COVER SKAPPE COUVERTURE TAPON 37,5kW 60kW 45kW Code Descrizione Description Beschreibung Designation Descripción Q.ty ELECTRIC PANEL - QUADRO ELETTRICO ed 0209 Part of: 1638-1645-1672 16xx Geyser 58L-ed4010...
- Page 22 Spare parts 16xx GEYSER 58 Z504 KIT TERMOREGOLAT. KIT THERMOREGULAT. WÄRMERREGLER THERMOREGULAT TERMORREGUL. S1511002 FILTRO SEBATOIO FILTER FILTER FILTRE FILTRO S0221001 RUBINETTO ROBINET HAHN ROBINET GRIFO G0342001 SFERA GALLEGG. FLOATING BALL KÜGEL SCHWIMMER SPHERE FLOTTEUR BOLA FLOTANTE GUARNIZIONE GASKET DICHTUNG JOINT EMPAQUETADURA E0411002...
- Page 23 16xx GEYSER 58 Spare parts 0160110 RACCORDO FITTING ANSCHLUSSTÜCK RACCORD RACOR RACCORDO FITTING ANSCHLUSSTÜCK RACCORD RACOR 0160109 Code Q.ty Descrizione Description Beschreibung Designation Descripción ECONOMIZER GROUP (option) LS20 ed 0108 GRUPPO ECONOMIZZATORE (opzionale) 16xx Geyser 58L-ed4010...
- Page 24 Dealer Manufacturer Document identification Edition: 4010 Date created: 28/08/2007 Date last edited: 08/10/2010 Internal code: 16xx Geyser 58L-ed4010...
