_EN_

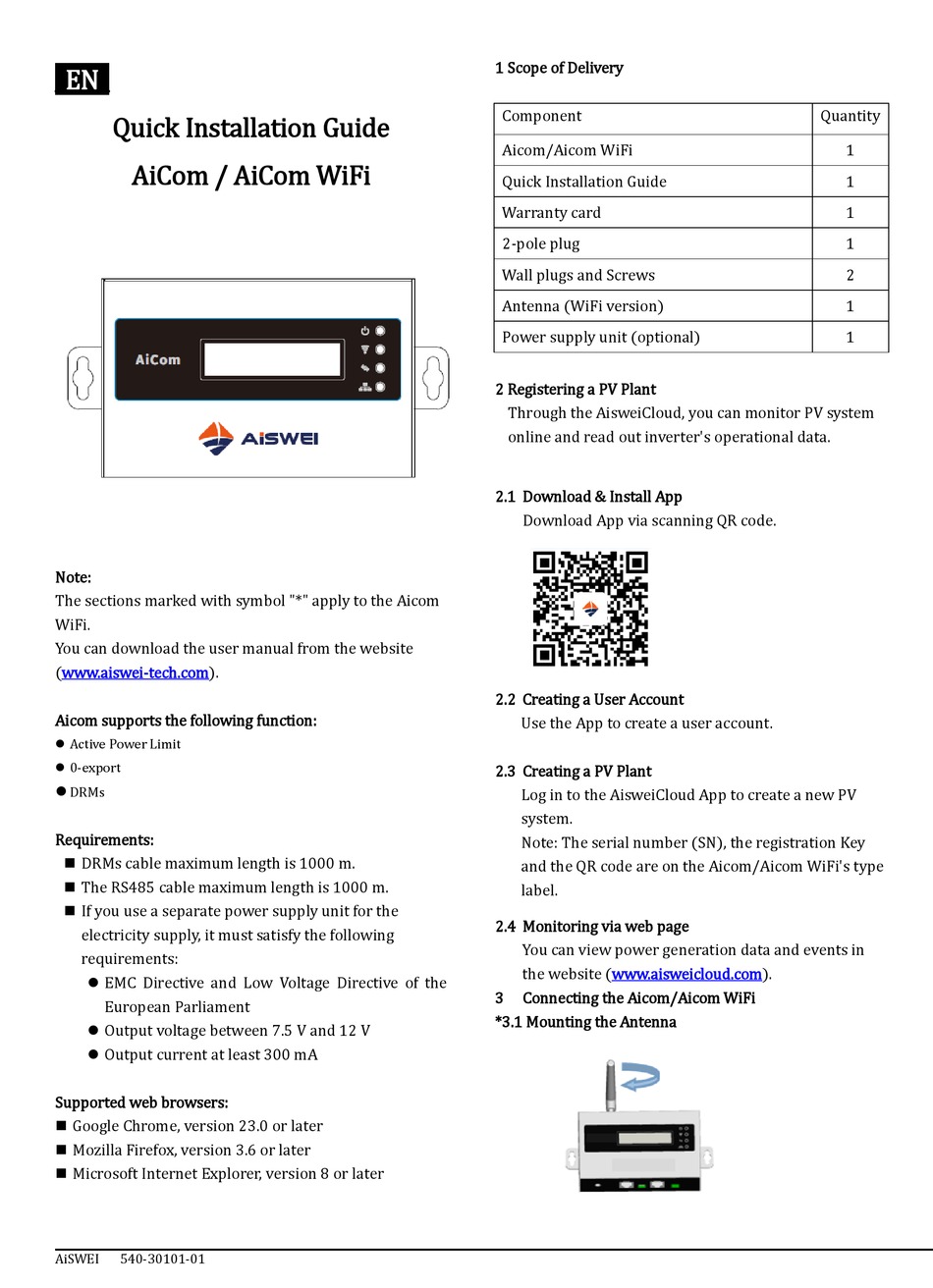

Quick Installation Guide

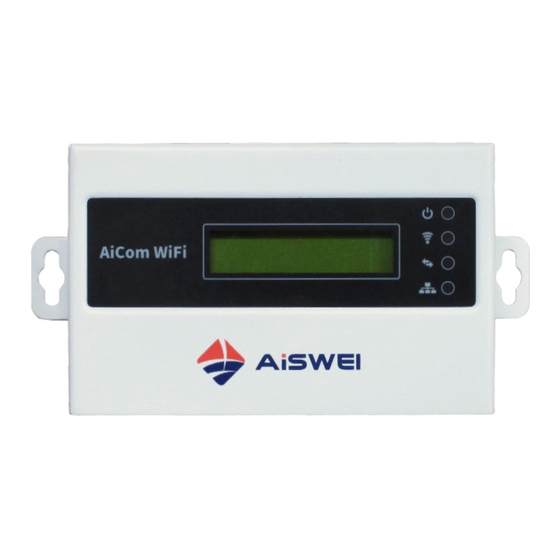

AiCom / AiCom WiFi
Note:
The sections marked with symbol "*" apply to the Aicom
WiFi.
You can download the user manual from the website
(www.aiswei-tech.com).
Aicom supports the following function:
⚫ Active Power Limit
⚫ 0-export
DRMs
Requirements:
◼ DRMs cable maximum length is 1000 m.
◼ The RS485 cable maximum length is 1000 m.
◼ If you use a separate power supply unit for the
electricity supply, it must satisfy the following
requirements:
⚫ EMC Directive and Low Voltage Directive of the
European Parliament
⚫ Output voltage between 7.5 V and 12 V
⚫ Output current at least 300 mA
Supported web browsers:
◼ Google Chrome, version 23.0 or later
◼ Mozilla Firefox, version 3.6 or later
◼ Microsoft Internet Explorer, version 8 or later
AiSWEI
540-30101-01
1 Scope of Delivery
Component
Aicom/Aicom WiFi
Quick Installation Guide
Warranty card
2-pole plug
Wall plugs and Screws
Antenna (WiFi version)
Power supply unit (optional)
2 Registering a PV Plant
Through the AisweiCloud, you can monitor PV system
online and read out inverter's operational data.
2.1 Download & Install App
Download App via scanning QR code.
2.2 Creating a User Account
Use the App to create a user account.
2.3 Creating a PV Plant
Log in to the AisweiCloud App to create a new PV
system.
Note: The serial number (SN), the registration Key
and the QR code are on the Aicom/Aicom WiFi's type
label.
2.4 Monitoring via web page
You can view power generation data and events in
the website (www.aisweicloud.com).
3
Connecting the Aicom/Aicom WiFi
*3.1 Mounting the Antenna
Quantity
1
1
1
1
2
1
1
