Summary of Contents for Hissmekano Viksam 3.0

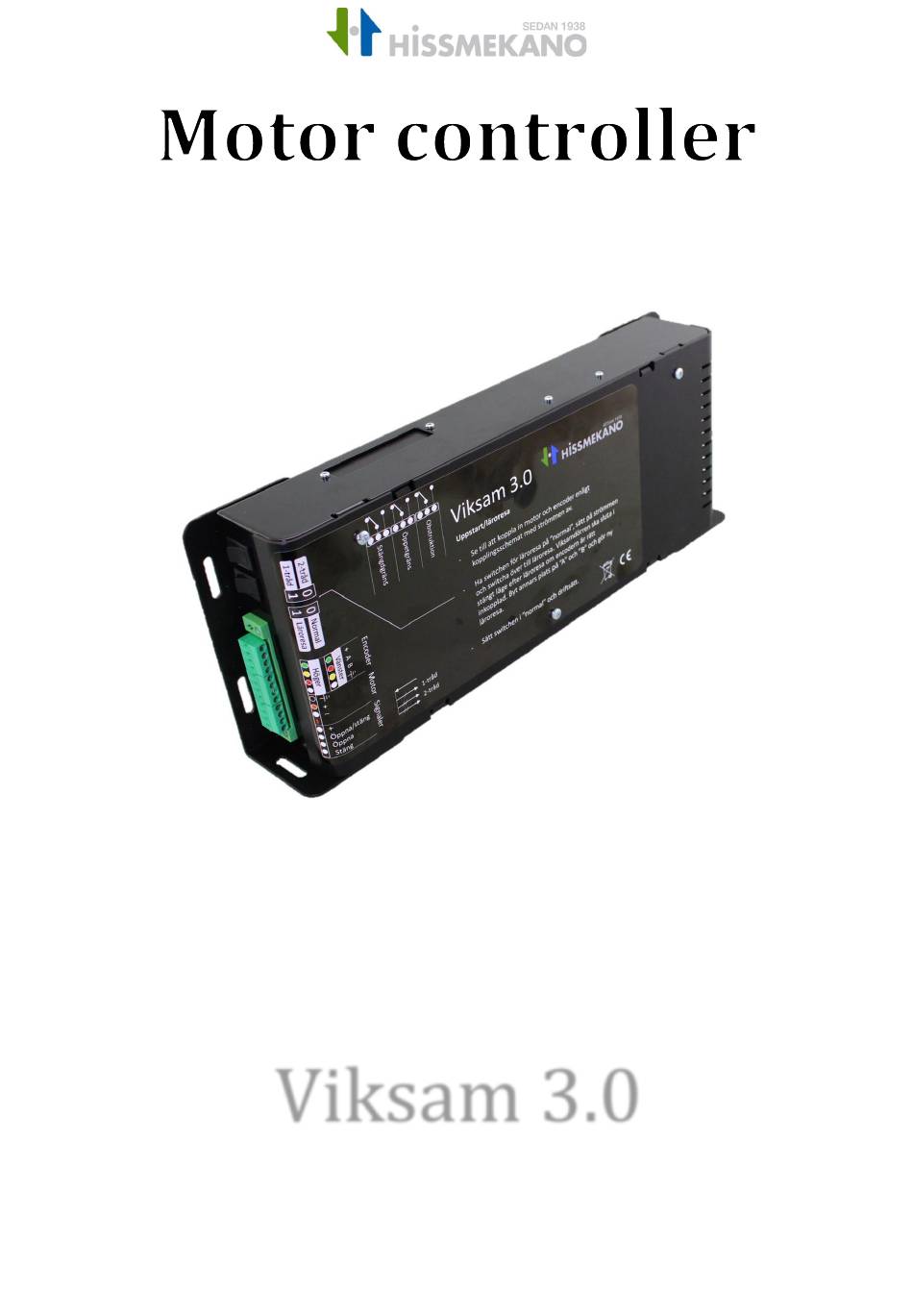

- Page 1 Viksam 3.0...
-
Page 2: Table Of Contents
Door hanging ........................... 7 Commissioning ..........................8 Learning trip ..........................8 Manual mode .......................... 8 Troubleshooting ..........................9 Spare parts............................. 10 Maintainance ..........................10 Lubrication of tension roller ....................10 Adjustment of belt......................... 10 Manual Viksam 3.0 version 2 – October 2022... -
Page 3: Data
12 x screw terminals for motor/encoder/signals Supply cable: IEC C14 Relay contacts Obstruction Closed door position Open door position Buttons Normal operation/learning trip 2-Threads [COM to open or close] / 1-Thread [COM to open/close] Dimensions 410x160x70mm Manual Viksam 3.0 version 2 – October 2022... -
Page 4: Installation
Mount the belt around the idler pulley and gearwheel from the motor. Connect the belt ends with the belt coupling. Cut the length of the belt if necessary. Belt with belt coupling Manual Viksam 3.0 version 2 – October 2022... - Page 5 10mm before it stops when you open the door manually. Attach the control to the basket/car roof using the appropriate screw in the 6mm wide slotted holes for vertical or horizontal mounting. Manual Viksam 3.0 version 2 – October 2022...
-
Page 6: Connections
3.2 Motor and encoder connection The motor is delivered including an encoder with cabling that is connected as shown below. NOTE. The encoder is connected differently depending on whether it is a right- or left-hanging door. Manual Viksam 3.0 version 2 – October 2022... -
Page 7: Interface And Settings
In case of blocking, the door will reverse and then make another opening attempt where the door slows down to the position where the door was previously blocked. After a complete open/close cycle, the door returns to normal operation again. Manual Viksam 3.0 version 2 – October 2022... -
Page 8: Relay Contacts
NOTE. When changing direction, it is important to switch off the power and start up the steering learning journey mode. Otherwise, there is a risk that the door runs at full speed toward the limit positions when it thinks that the position is outside the doorway. Manual Viksam 3.0 version 2 – October 2022... -
Page 9: Commissioning
"2-wire" and "Normal" positions and jumper between screw terminals "9" and "11" (open) / " 12” (close). NOTE. Be sure to disconnect the cables that go to the elevator control before the jumper. Manual Viksam 3.0 version 2 – October 2022... -
Page 10: Troubleshooting
5 Troubleshooting Manual Viksam 3.0 version 2 – October 2022... -
Page 11: Spare Parts
Push the roller down so that a small gap appears and spray some spray grease into the gap that appears. Recommended to be performed at the time of service. 7.2 Adjustment of belt If adjustment of the belt is required, see the instructions in chapter 3.5. Manual Viksam 3.0 version 2 – October 2022...
