Summary of Contents for American Recorder AllCast SYSTEM 1.0

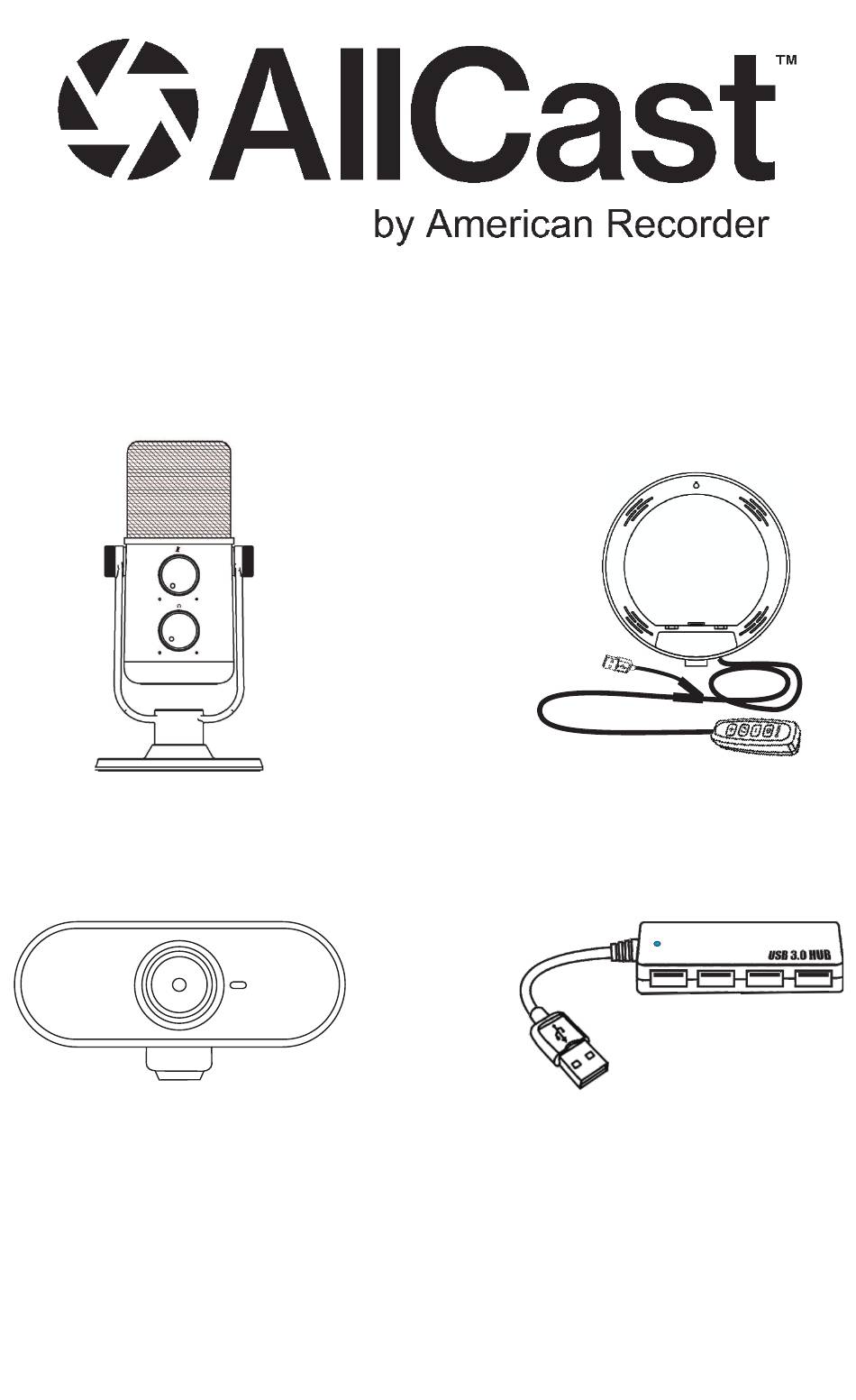

- Page 1 SYSTEM 1.0 USB MICROPHONE 6” RING LIGHT WEBCAM HD FULL HD WEBCAM 4 PORT USB 3.0 HUB DEVISE USER MANUAL...
- Page 2 USB Microphone Controls and Connections Microphone Capsule Microphone Gain & Mute Switch Control 3.5mm Audio Microphone Gain TRS Jack & Mute Switch Control USB C Connector Mic Stand (not used with ALLCAST Mic Arm) FRONT BACK Connecting USB Microphone USB Extension Cable USB 3.0 Hub USB Input...
- Page 3 USB Microphone Quick Guide FRONT BACK USB Microphone Computer Settings Right Click Mouse Left Click Mouse USB MICROPHONE 4/10/2021...
- Page 4 USB Microphone Computer Settings (cont.) 4/10/2021 USB Microphone Adjusting USB Microphone Level 4/10/2021 USB MICROPHONE...
- Page 5 Application Setting: (Example - Zoom) (USB Microphone) (USB Microphone) Using USB Microphone with Apple Mac Supports Mac OS 10.7.5 or later Version, USB 2.0 or later Click sequence USB Microphone USB Microphone...
- Page 6 USB Microphone Specifications...
- Page 7 Ring Light Controls Decrease light level Power On/Off Ê Ë Increase Light Level Color Temperature Adjustment (daylight or incandescent) HD WEBCAM NOTE: Remove protective covers after mounting and before use. WEBCAM HD FULL Connect to Computer or USB Hub 1/4” - 20 Mount thread SPECIFICATIONS FEATURES Lens: HD lens...
- Page 8 USB 3.0 Hub LED Power Indicator FEATURES: High speed USB 3.0 Up to 5Gbps Plug and play, no driver required Overload voltage and current protection LED status indicator USB A to Computer Downward compatible (6’ USB A type extension High-strength ABS plastic enclosure cable provided) Supports Windows XP/VISTA//7/8/10 &...
