WHAT YOU GET:
TOP
SIDE
BACKPLATE
800mm
BUNGEE
BASE
FRONT
PULL
TAB
x 3

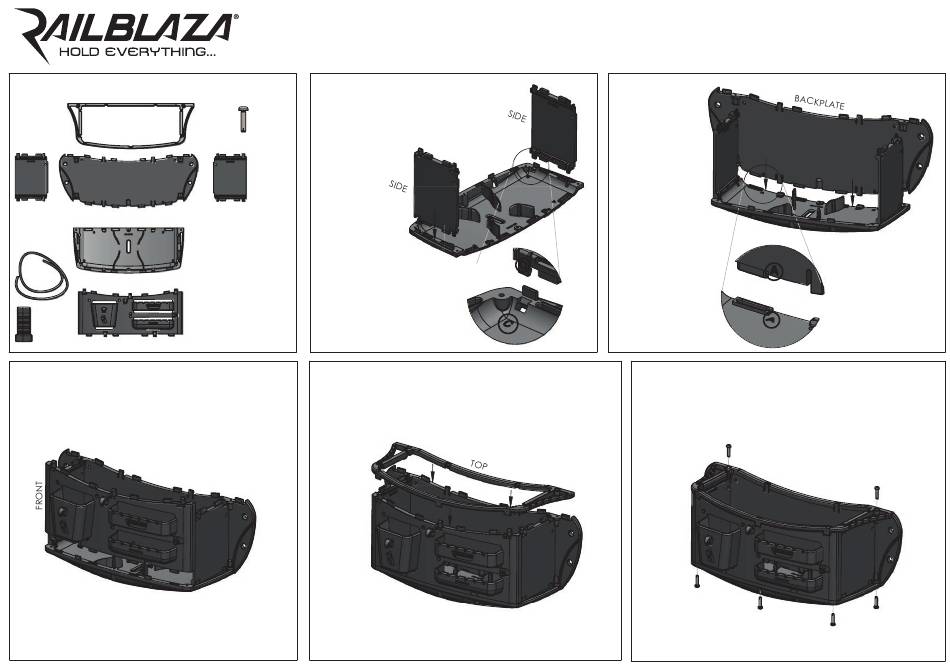

STEP 3:
Clip FRONT
into BASE
RAILBLAZA TACKLE CADDY
ASSEMBLY INSTRUCTIONS
ASSEMBLY
STEP 1:
SCREWS
Clip SIDES into BASE
x 8
SIDE
Ensure C on
To help with
SIDES and C
assembly find
on BASE
letters on inside
match up as
of parts to
shown
match up.
STEP 4:
Clip TOP onto assembly securing
the FRONT, SIDES and BACKPLATE
•
#1 pozi screwdriver
YOU WILL NEED:
•
knife / scissors
•
tape (plastic or masking)
STEP 2:
Clip
BACKPLATE
into BASE
Ensure A
and B on
BACKPLATE
match with
A and B on
BASE
STEP 5:
Use screwdriver to tighten 8 x self
tapping screws into screw holes
RB-ID27.B
