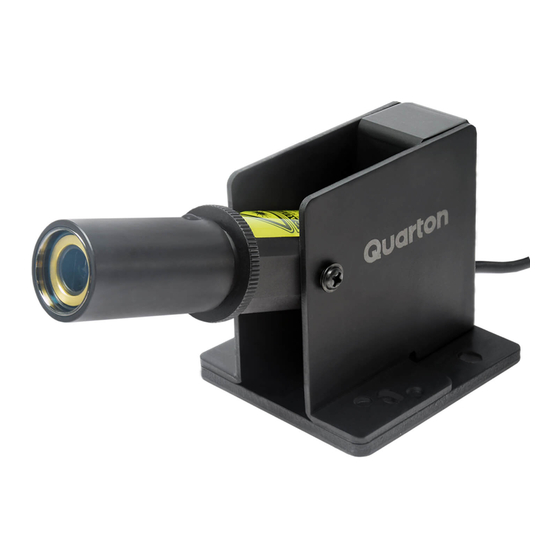

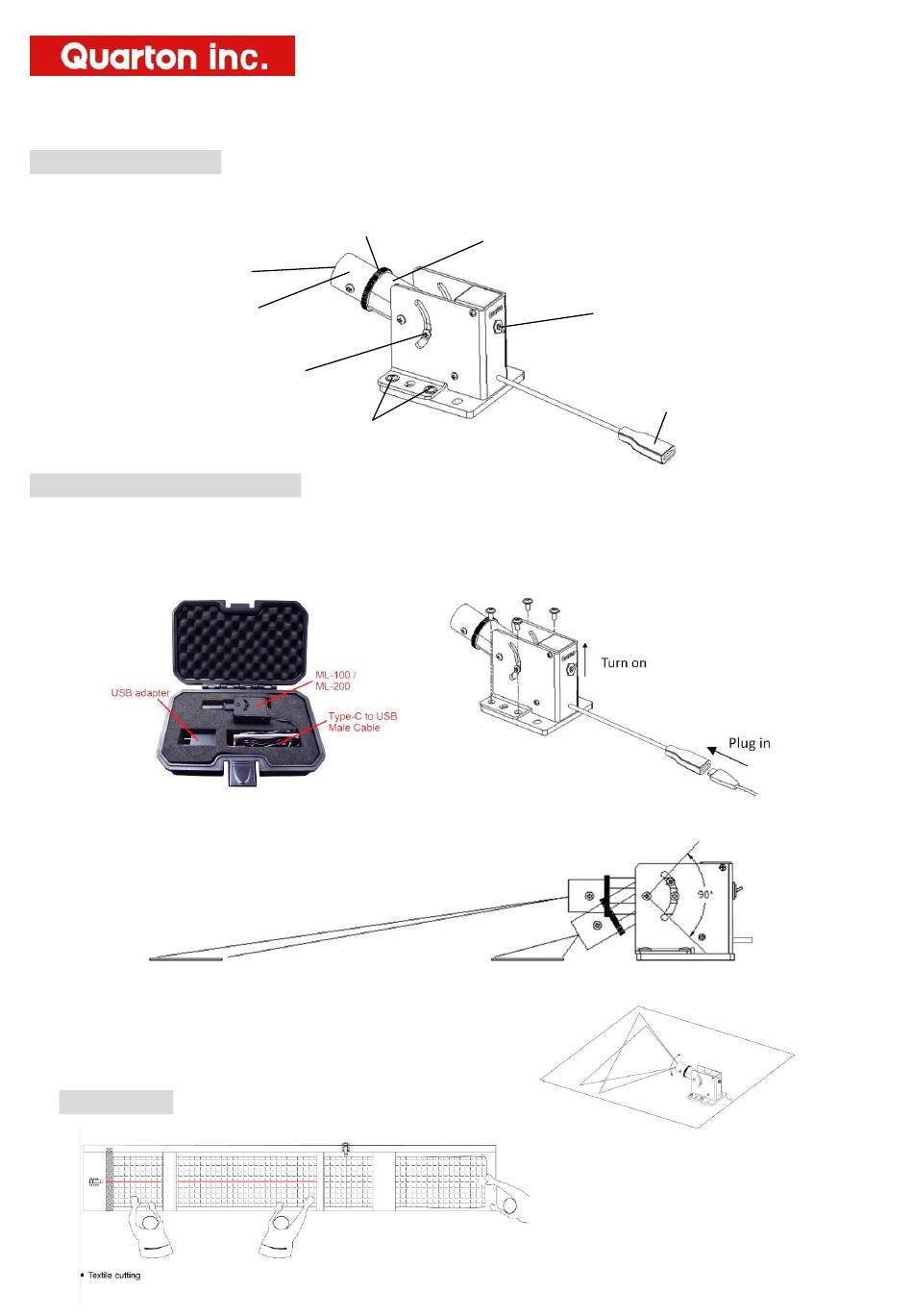

OPERATION FUNCTIONS
Laser aperture
Adjustable bushing
Fixing screw
OPERATION THE ML-100 / ML-200
1.
Attach the ML-100 / ML-200 to the cutting machine with four M4 screws (screws not included).
2. Plug in ML-100 / ML-200 with the Type-C to USB Male Cable, then connect cable to the USB adapter.
3. USB adapter plug in the outlet and turn on the ON/OFF switch.
4. Loose the fixing screw gently and adjust the module housing to project the laser
line into position you want. Tighten the fixing screw to fix the laser's position.
5. Loose the fixing ring. Rotate the adjustable bushing to find the angle you want.
Tighten the fixing ring to fix the laser line's angle.
6. Cut the stuff along the laser line.
APPLICATIONS
ML-100 / ML-200
INSTRUCTIONS
Fixing ring
Module housing
Setting holes
ON/OFF switch
Type C female connector
Advertisement
Table of Contents
Related Manuals for Quarton ML-200
Summary of Contents for Quarton ML-200
- Page 1 Attach the ML-100 / ML-200 to the cutting machine with four M4 screws (screws not included). 2. Plug in ML-100 / ML-200 with the Type-C to USB Male Cable, then connect cable to the USB adapter. 3. USB adapter plug in the outlet and turn on the ON/OFF switch.
- Page 2 Stone cutting Press Brake Wood cutting Wood cutting SPECIFICATIONS Model name ML-100 ML-200 Dimension(L X W X H) 4.92”x2.13”x2.32” (12.5cm X 5.4cm X 5.9cm) 4.92”x2.13”x2.32” (12.5cm X 5.4cm X 5.9cm) Weight 250±5g / 8.81±0.17 oz. 250±5g / 8.81±0.17 oz. Wavelength...
