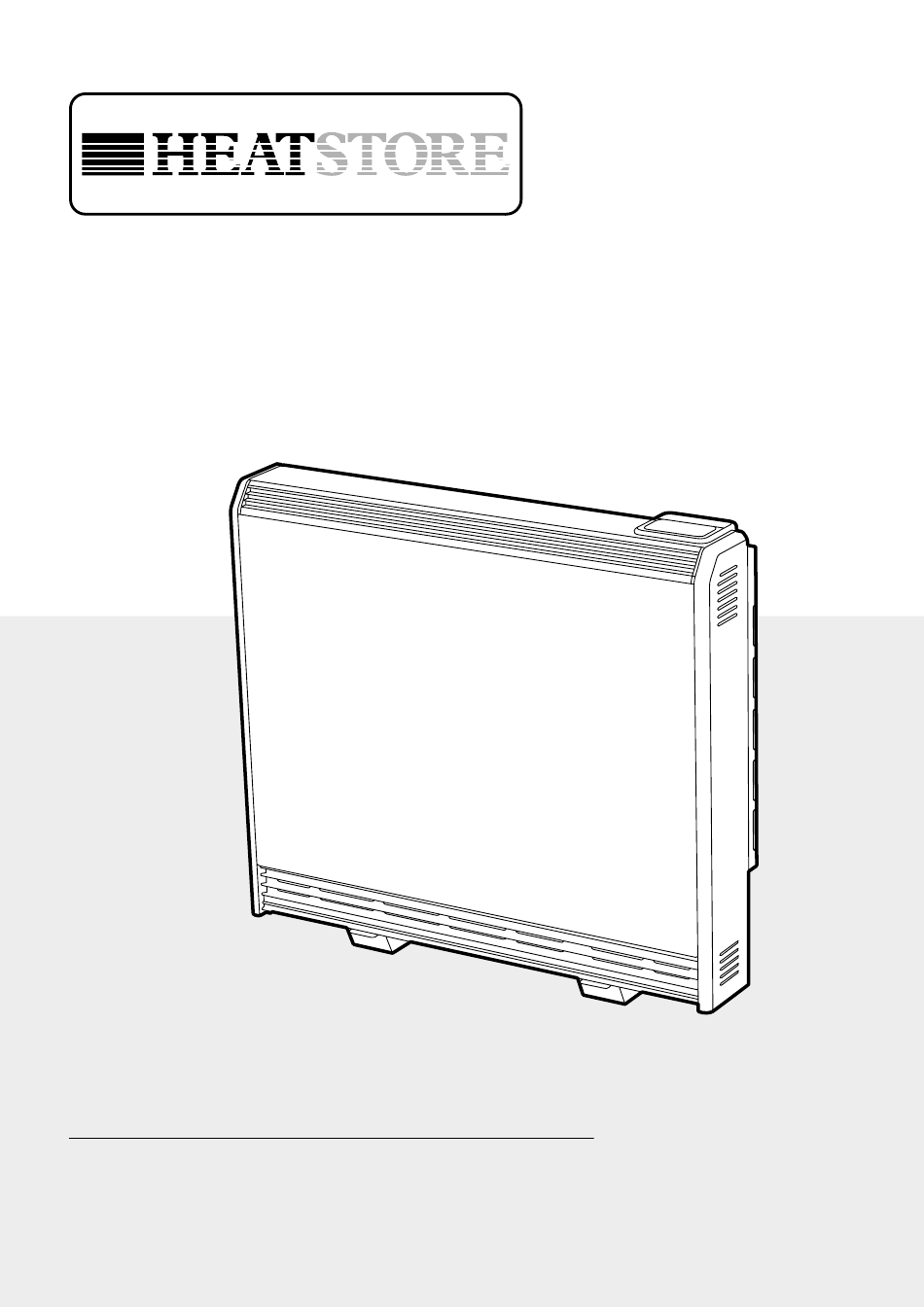

INSTRUCTION MANUAL
Installation and Operating
Heatstore HSDS Storage Heater
Models: HSDS050 / HSDS070 / HSDS100 / HSDS125 / HSDS150
These instructions should be read carefully
and retained for future use. Note also the
information presented on the appliance.
08/80280/0
ISSUE: 4 Series: A

Advertisement

Table of Contents
loading

Summary of Contents for Heatstore HSDS050

  • Page 1 INSTRUCTION MANUAL Installation and Operating Heatstore HSDS Storage Heater Models: HSDS050 / HSDS070 / HSDS100 / HSDS125 / HSDS150 These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. 08/80280/0 ISSUE: 4 Series: A...
  • Page 2: Important Safety Advice

    IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR GUARANTEE IMPORTANT SAFETY ADVICE When using electrical heaters, basic precautions should always be followed to reduce the risk of fi...
  • Page 3: Operating Warnings

    OPERATING WARNINGS IMPORTANT: Remember to observe all safety warnings and precautions when operating the heater on the automatic or timer modes, either attended or unattended since a fi re risk exists when the heater is accidentally covered or obstructed. Mains cables are not provided with this heater. CAUTION: Do not use if either of the heater’s mains power leads become damaged.
  • Page 4: Child Safety

    CHILD SAFETY WARNING - Fixing kit screws are a potential choking hazard. WARNING - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.
  • Page 5: Technical Details

    Technical Details Models HSDS050 HSDS070 HSDS100 HSDS125 HSDS150 Nominal Output (kW) 0.50 0.75 1.00 1.25 1.50 Storage Element Rating 230/240V~: 936/1020W 1435/1560W 2042/2220W 2540/2760W 3024/3300W Boost Output 230/240V~: 312/340W 479/520W 681/740W 847/920W 1008/1100W Rated Charge Period: 7.7 - 7 Hours 7.7 - 7 Hours...
  • Page 6 Preparation 1. Place the heater within its packaging fl at on the ground with arrows printed on the base of the carton pointing upwards. 2. Feet fi tted default position position) moved outside position (Y position) if necessary. (Fig. 1a and Fig. 1b).
  • Page 7 Fig. 2 Fig. 3 Ensure the back of the heater is fl ush against the wall. If the skirting board is taller than 120mm and deeper than 15mm it should be cut to accommodate safe installation of the heater. Do not place objects within 300mm of the front of the heater and 150mm (min.
  • Page 8: Installing The Heater

    Installing the Heater IMPORTANT Head of wall fi xing screw must be fl anged pan head type and have a diameter no less than 11mm. No countersunk headed screws to be used for wall fi xing. The heater must be securely fi xed to a wall. Screws with suitable wall fi xings for solid walls are provided.
  • Page 9 6. Six fi xing positions must be selected for models HSDS100, HSDS125, HSDS150 and at least 4 fi xing positions for models HSDS050 and HSDS070. Fig. 6. Common fi xing points for all heater sizes are shown in both Fig. 4 and Fig. 5.
  • Page 10: Electrical Connections

    Electrical Connections Warning: Before obtaining access to terminals, all supply circuits must be disconnected. 7. The heater leaves the factory confi gured to operate with two mains supplies, a 24 hour peak supply and an off peak switched supply. (Fig. 7) Not suitable for use on single supply.
  • Page 11 8. The mains cable entry and terminal block will be visible on the right hand side of the unit. Insert the mains cables through the cable gland at the bottom of the heater in readiness for connection (Fig. 8). IMPORTANT - Only heat resistant ordinary polyvinyl chloride sheathed fl exible cord should be used, the following codes apply;...
  • Page 12 Fig. 9 Fig. 10 Fig. 11 Fig. 12...
  • Page 13 Building the Heater Core 9. Remove the inner front and insulation to gain access to the core of the heater. Lay the inner front carefully to one side to ensure it is not damaged. (Fig. 9) 10. Remove the cardboard element support and dispose of. (Fig. 10) Energy Cells The energy cells are supplied separately to the heater in packs of three.
  • Page 14 Fig. 13 Fig. 14 Fig. 15 Fig. 16...
  • Page 15 13. The third row of energy cells is positioned in a manner similar to the fi rst row. Again be careful not to damage or dislodge the element. (Fig. 13) 14. Fit the fourth row of energy cells above the third row in the upside position. Again, the fi...
  • Page 16: Operation

    Operation The controls are located on the top of the heater. The heater is fi tted with an adjustable electronic controller consisting of a display screen and six touch sensitive buttons. Display Screen ‘Menu’ Button ‘Back’ Button ‘Up and Down’ Arrows ‘Enter’...
  • Page 17: Control Functions

    Control Functions The heater controls can be easily adjusted by using the six buttons on the User Interface. The Display Screen shows the options available at each stage of adjustment. Menu - displays the main options list; - Date/Time - Set the date and time. - Mode - Set the mode of operation.
  • Page 18: Main Screen

    Main Screen After 30 seconds the heater will default back to the Main Screen. Here the chosen temperature is displayed along with the mode of operation. Any use of the Advance, Boost, Setback function will be displayed here, and pressing Enter will show engineer’s diagnostics and 7 day history screens.
  • Page 19: Modes Of Operation

    Modes of Operation The heater comes pre-programmed with a set of heating profi les. There are three options available - two pre-programmed and one user adjustable timer; User Timer (pre-programmed, factory default) - provides greatest fl exibility to the user. Four time slots are available throughout the day and these can be customised for each day of the week.
  • Page 20 Choosing and Setting a Mode Timer Modes To choose a timer mode press Menu and then Down to select Mode. Then press Enter. Then select Timer Mode, again using the Enter button. Select the mode required, by pressing the Up or Down followed by Enter. For options Out All Day, and User Timer, three choices are available - Select, Preview and Modify.
  • Page 21 In Holiday mode the date until the room will be unoccupied can be set/adjusted together with the required room temperature. Press Up and Down to set the return date, then press the Enter button. Press Up and Down to choose a temperature to be maintained during this period and press the Enter button.
  • Page 22 Advance The Advance function allows the heating profi le of the heater to be changed temporarily. When a timer has been selected, the Advance function is used to begin the next Comfort On mode early. If the heater is in Comfort Off mode and heat is required, press the Advance button. If the heater is in Comfort On and heat is not required, press the Advance button and the heater will turn off...
  • Page 23: Child Lock

    Options The Options menu allows the settings to be modifi ed to suit the user’s preferences. These are; DST Rule - Select your daylight saving setting. The heater clock will automatically adjust for daylight saving (British Summer Time as it is often referred to). If no adjustment is required then select none.
  • Page 24: User Information

    User Information User Information Press and hold Enter for fi ve seconds to enter the User Information menu; Open Window detection (OW), when enabled, the heater will reduce the target room temperature to limit the energy waste when an open window is detected. Disabled as default. Factory Reset returns all settings to the factory presets.
  • Page 25 Service In order to enter the Service menu, Back, Menu & Enter must be pressed simultaneously and held for 10 seconds. Charge Time - for Service personnel use only. Allows to set up to three tariff specifi c charge time periods. No charge times limitation as factory default.
  • Page 26: Slave Mode

    Slave Mode If more than one heater is installed in the same room it is recommended that the Service Menu largest capacity heater is set as the master Ch arge Time and all smaller capacity products are set as Slave Mode Landlord L ock Rm Temp Offset slaves.
  • Page 27 This page is deliberately left blank.
  • Page 28: Energy Saving Tips

    Energy Saving Tips The energy we use to heat, light and power our homes contributes over a quarter of the UK’s carbon emissions, the principle contributor to climate change. Around half the energy used in the home is for heating and hot water, so using your heating system effi ciently will not only help the environment, but also save you money.
  • Page 29 Important During the initial operation, some odour may be noticed due to the newness of materials used in manufacture. This is normal and will disappear after a short period of use. It is however advisable to keep the room well ventilated. Cleaning WARNING - ALWAYS ISOLATE THE POWER SUPPLY BEFORE CLEANING THE HEATER.
  • Page 30 +44 1179 235 375 or visit https://www.heatstore.co.uk/#contact and complete the online form. We will need details of your Heatstore product, its serial number and a description of the fault which has occurred. You can fi nd the model number and serial number for your Heatstore product on the heaters side.
  • Page 31 • You must provide to Heatstore or its authorised agents on request the original receipt as proof of purchase and - if required by Heatstore - proof of delivery. If you are unable to provide this documentation, you will be required to pay for any repair work required.
  • Page 32: Battery Replacement

    Battery Replacement Fig. 17 Fig. 18 Fig. 19 Fig. 20 IMPORTANT: Before replacing the battery ensure the heater is isolated from the electricity supply. NOTE – Battery should be disposed of in an appropriate manner This product is fi tted with a replaceable battery in the controls. To replace the battery, follow the steps below.
  • Page 33 Type of heat output / room temperature control Electronic room temperature control plus 7 day timer Contact details Heatstore, Victoria Road, Avonmouth, Bristol, BS11 9DB Tel: +44 1179 235 375 This product complies with Lot20 of the Energy Effi ciency Directive (2015/1188).
  • Page 34: Circuit Diagram

    Circuit Diagram HSDS Series A...
  • Page 35 This page is deliberately left blank.
  • Page 36 Tel: +44 1179 235 375 Heatstore, Victoria Road, Avonmouth, Bristol, BS11 9DB © Heatstore. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Heatstore This product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility...
