BDE-RFM208P-S1 USER GUIDE
Wireless Module
BDE-RFM208P-S1 USER GUIDE
Introduction
This user guide is for BDE-RFM208P-S1, a Wireless Module based on TI CC1352P.
It is a quick start guide for how to connect the module with the evaluation board BDE-EVB07 or
with the TI launchpad, and how to build the first application. It also shows a demo for how BDE-
RFM208P-S1 receives a data packet that is sent from another BDE-RFM208P-S1.

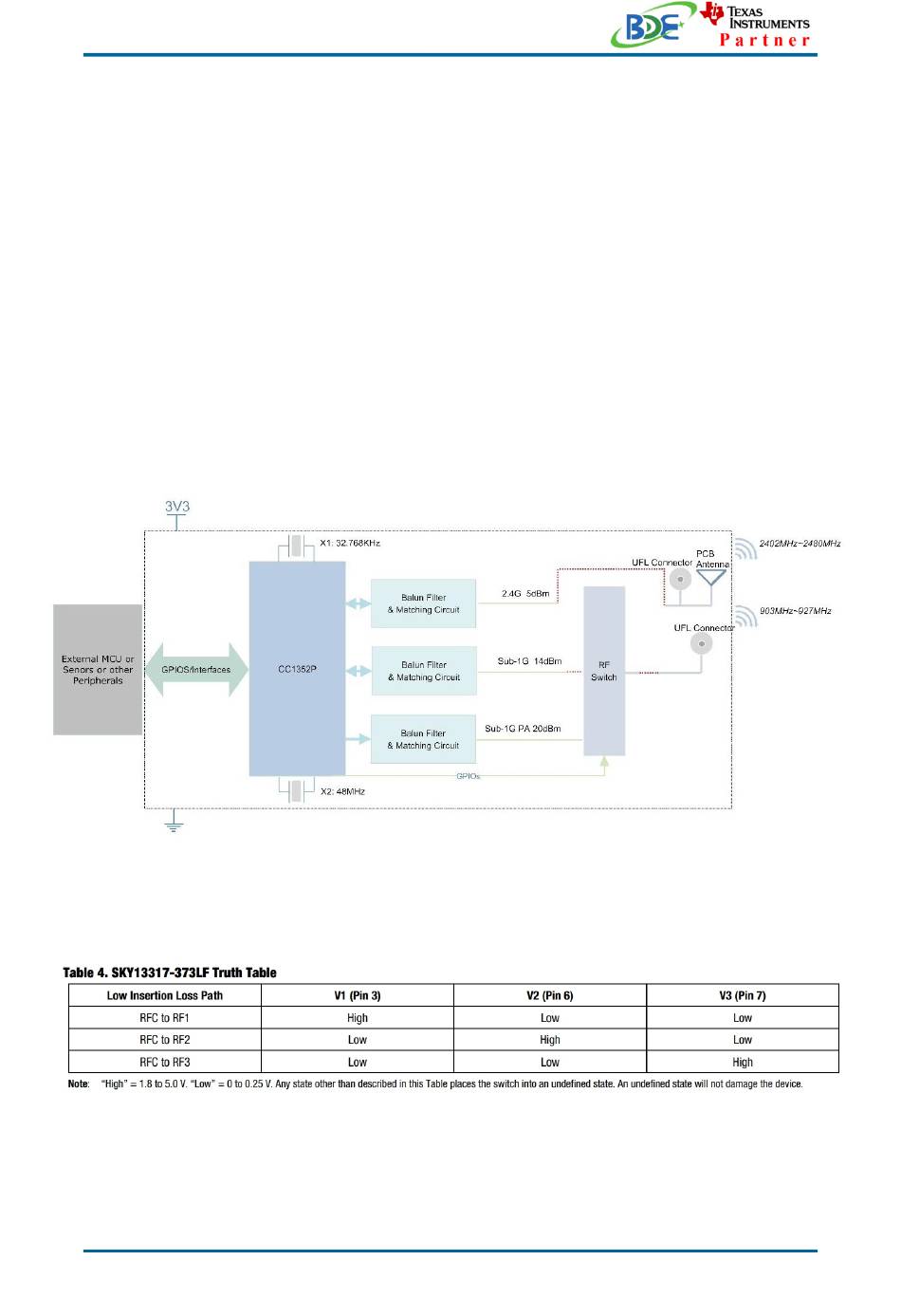

Hardware Diagram
A. Block Diagram
B. RF Switch True Table
C. Antenna Selection Schematic
The module is using the switch to select 14 dBm or 20 dBm TX power and also the
RX path for the Sub-1GHz band. 2.4-GHz band is standalone for having its own antenna.
BDE Technology Inc.
1 / 24
User Guide
info@bdecomm.com
Advertisement
Related Manuals for BDE BDE-RFM208P-S1
Summary of Contents for BDE BDE-RFM208P-S1
- Page 1 It is a quick start guide for how to connect the module with the evaluation board BDE-EVB07 or with the TI launchpad, and how to build the first application. It also shows a demo for how BDE- RFM208P-S1 receives a data packet that is sent from another BDE-RFM208P-S1.
-
Page 2: Get Ready
BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Get Ready The following tools are recommended to develop with BDE-RFM208P-S1. Hardware tools: • Two modules of BDE-RFM208P-S1(BDE-RFM208P-S1-BDE Technology Inc. (bdecomm.com)) • Two BDE-ADP208 V1.0 (adaptor board) • PC or Laptop info@bdecomm.com BDE Technology Inc. - Page 3 A. Connect the Hardware If chose EVB07: USB cable to connect EVB07 and PC or laptop. Plug BDE-RFM208P-S1 with the adaptor board into the dev board and connect all the pins with Jumpers as the following picture shows. info@bdecomm.com BDE Technology Inc.
- Page 4 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module If chose TI Launchpad: The connection is as following. Connection Designator BDE-RFM208P-S1 LaunchPad Pin 3V3 Power Ground RESET DIO16 DIO17 Optional: TDO，TDI，RXD，TXD B. Build the Application Download and install the CCS and SDK ◼...
- Page 5 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Select an option to download CCS Unzip the package to a local disc Click the setup of CCS info@bdecomm.com BDE Technology Inc. 5 / 24...
- Page 6 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Click “Next” Select the default option info@bdecomm.com BDE Technology Inc. 6 / 24...
- Page 7 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Click “Next” info@bdecomm.com BDE Technology Inc. 7 / 24...
- Page 8 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Select the Installation Directory Select the default option info@bdecomm.com BDE Technology Inc. 8 / 24...
- Page 9 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module 10. Select the component 11. Select the default option info@bdecomm.com BDE Technology Inc. 9 / 24...
- Page 10 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module 12. Click “Next” 13. Click “Next” info@bdecomm.com BDE Technology Inc. 10 / 24...
- Page 11 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module 14. Waiting for installation to complete Software Development Kit (SDK) installation ◼ Click on this option Select an option you need to download SDK info@bdecomm.com BDE Technology Inc. 11 / 24...
- Page 12 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Log in to your TI account, if you are a new user, register a TI account first info@bdecomm.com BDE Technology Inc. 12 / 24...
- Page 13 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Select “civil” if your application is for civil use Select “Yes” and submit Download SDK info@bdecomm.com BDE Technology Inc. 13 / 24...
- Page 14 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Installation Click “Next” info@bdecomm.com BDE Technology Inc. 14 / 24...
- Page 15 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Select the default option info@bdecomm.com BDE Technology Inc. 15 / 24...
- Page 16 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module 10. Select the Installation directory 11. Click “Next” info@bdecomm.com BDE Technology Inc. 16 / 24...
- Page 17 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module 12. Waiting for installation to complete Run an example/demo code ◼ info@bdecomm.com BDE Technology Inc. 17 / 24...
- Page 18 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module For the first module, find the option named “Import CCS project…” 2. According to the following path to find the sending end project: ti\simplelink_cc13x2_26x2_sdk_5_10_00_48\examples\rtos\CC1352P1_L AUNCHXL\ easylink\ rfEasyLinkRx\tirtos\ccs Right Click the project to build the receiving end project info@bdecomm.com...
- Page 19 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Click this bug icon (means download and debugging) C lick on this option to start debugging info@bdecomm.com BDE Technology Inc. 19 / 24...
- Page 20 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Find the file which is named “rfEasyLinkRx.c” and the function which is named “rxDoneCb”, and set a breakpoint at the line as the arrows shows For another module, according to the following path to find the sending info@bdecomm.com...
- Page 21 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module end project: ti\simplelink_cc13x2_26x2_sdk_5_10_00_48\examples\rtos\CC1352P1_L AUNCHXL\ easylink\ rfEasyLinkTx\tirtos\ccs Right Click the project to build the sending end project info@bdecomm.com BDE Technology Inc. 21 / 24...
- Page 22 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module Click this bug icon (means download and debugging) C lick on this option to start debugging info@bdecomm.com BDE Technology Inc. 22 / 24...
- Page 23 BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module You can see the lights flashing (means sending a data uninterruptedly) 12. The program stops at the breakpoint info@bdecomm.com BDE Technology Inc. 23 / 24...
-
Page 24: Other Resources
BDE-RFM208P-S1 USER GUIDE User Guide Wireless Module By far you should’ve built your first application successfully. For further development, please check out the CC1352P-S1 data sheet, product information and User guide support | TI.com page and download the (https://www.ti.com/lit/pdf/swcu185) Other Resources...
