Summary of Contents for LeCavist LKS116VN

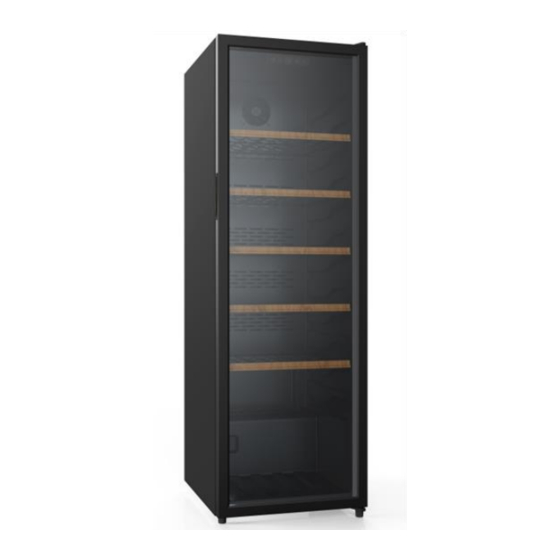

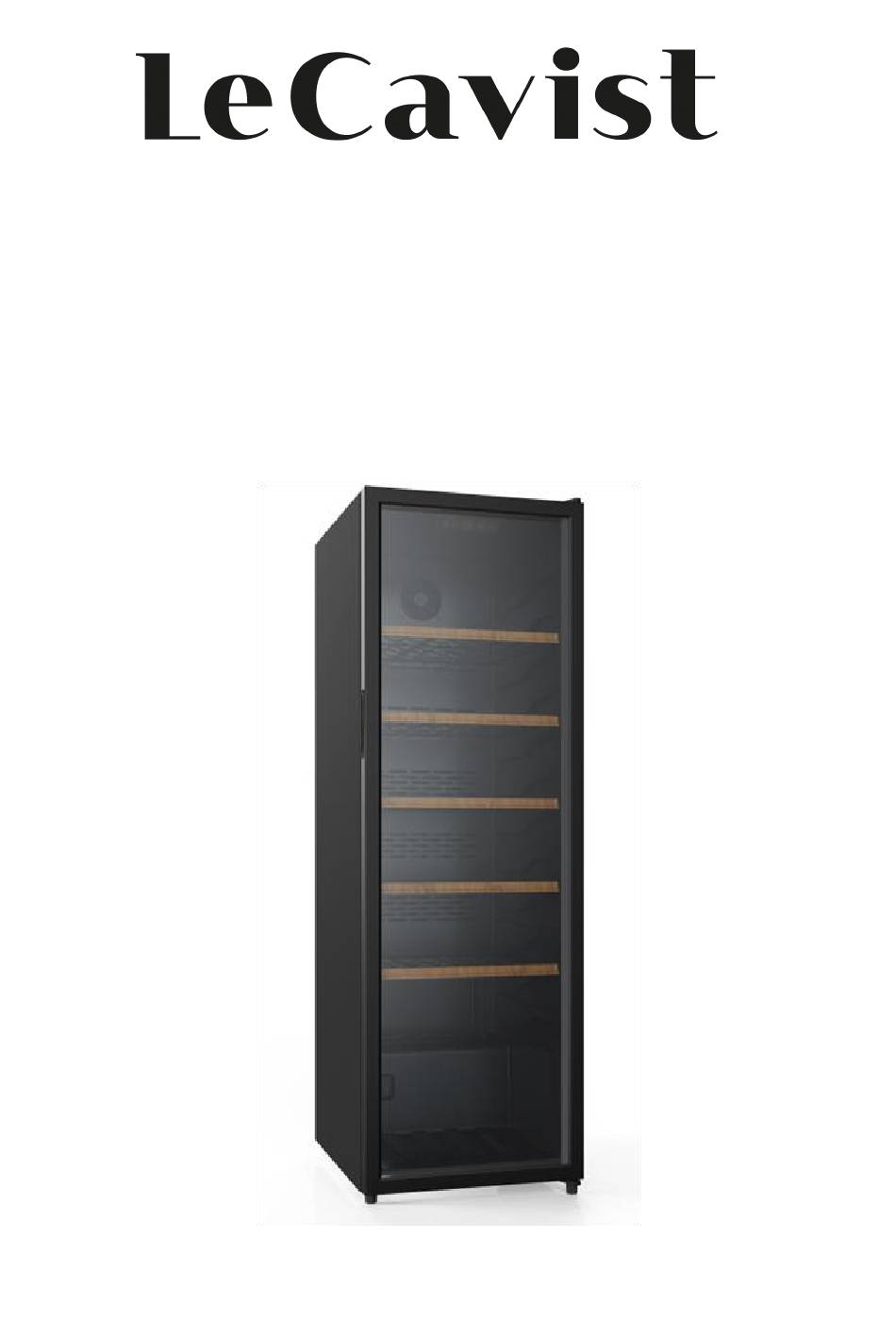

  • Page 1 User guide WINE FRIDGE LKS116VN...
  • Page 2: Important Security Warnings

    IMPORTANT SAFETY INSTRUCTIONS Please read this user guide carefully and in full before installing and using the wine fridge. It is important that this guide is kept with the fridge for future reference. If the wine fridge is given to another person, make sure the user guide follows the fridge so that the new owner can properly install and use the fridge.
  • Page 3 The meaning of these symbols in this user guide is outlined below. Important information about your personal safety and how to avoid damaging the fridge. General information and advice Environmental information Fire risk Risk of electric shock...
  • Page 4 GENERAL SAFETY For your safety and the safety of others, please read these safety instructions carefully before installing and using your wine fridge. • This fridge is intended for domestic use or in similar settings such as: o kitchen areas in an office or other business environments; and o hotels (for guest use), motels and other residential environments.
  • Page 5 • The refrigerant gas contained in this device is isobutane (R600a). It is a flammable gas. When transporting and installing the unit, be careful not to damage any part of the refrigeration system. • Do not use anything sharp to defrost the device. •...
  • Page 6 CHILD SAFETY This fridge may be used by children aged 8 years or older and by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they are properly monitored, or if instructions on the safe use of the fridge have been given and if the risks involved have been appropriately assessed.
  • Page 7 ELECTRICAL SAFETY • Do not connect the fridge to a power outlet that is not protected from overloads. • Never use power boards with multiple sockets to connect the device. WARNING: Do not immerse the cord in water, handle the electrical components or grip them with wet hands.
  • Page 8 WARNING: Danger of Electrocution WARNING: The ventilation openings on the fridge's casing must remain uncovered. Be careful not to block them. WARNING: Do not use mechanical devices inside the wine fridge. WARNING: Do not dismantle or otherwise damage the refrigeration system. WARNING: Do not use electrical appliances in the wine fridge, other than those recommended by the manufacturer.
  • Page 9 INSTALLATION • This wine fridge is heavy. Be careful when moving it. • When transporting the fridge, be careful not to damage any part of the refrigeration system. • Important! Leave your device vertical for 24 hours before plugging it in for the first time so the refrigerant gas can equalise.
  • Page 10: Table Of Contents

    Summary IMPORTANT SECURITY WARNINGS Page 1 I DESCRIPTION OF THE APPLIANCE Page 11 II TECHNICAL CHARACTERISTICS Page 12 III INSTALLATION Page 14 A. Location Page 15 B. Unpacking the device and discarding the packaging items Page 15 C. Foot adjustment Page 16 D.
  • Page 11 This user guide is available in the following languages: FRENCH (original version) Other versions are a translation of the original. For an electronic version of the user guide, including the French version, visit www.triomph-australia.com.
  • Page 12: I Description Of The Appliance

    I DESCRIPTION OF THE APPLIANCE 1. Digital control panel & display 2. Fan 3. Metal shelves with wooden trim 4. Temperature sensor 5. UV glass door 6. Adjustable foot...
  • Page 13: Technical Characteristics

    II TECHNICAL CHARACTERISTICS Item number LKS116VN Model JC-210 Power supply 220-240 V Electric current 1.5A Power of the lamp Dimensions W x D x H 540 x 601 x 1244 mm Weight 41kg Type of installation Free standing Door orientation...
  • Page 14 ENERGY-RELATED PRODUCT SHEET Brand TRIOMPH Reference LKS116VN Capacity (L) 213L The coldest storage temperature setting that can be maintained 5˚C continuously Defrost Automatic Climate class N/ST. This fridge is designed Climate class to be used in an ambient temperature of between 16-38˚C.
  • Page 15: Installation

    III INSTALLATION Recommendations: The location you have selected for your wine fridge should: • be well ventilated • be away from any source of heat and direct sunlight; • not be frequently wet (e.g. laundry, bathroom); • have a level floor; •...
  • Page 16: Location

    A. Location To ensure adequate ventilation of the fridge, allow a minimum of 15 cm between the wine fridge and the nearby walls as shown in the illustration below. B. Unpacking the device and discarding the packaging. Remove all packaging, as well as protective elements inside the device's compartments, before turning it on.
  • Page 17: Foot Adjustment

    C. Foot adjustment Your wine fridge is equipped with an adjustable foot to facilitate levelling. It is recommended to adjust the front feet to level the wine fridge. Correctly levelled feet will limit noise and vibration of the wine fridge. Turn the adjustable foot by hand (be careful not to jam your fingers).
  • Page 18: Changing The Orientation Of The Door

    F. Change in the orientation of the door: The door can be right or left opening. Change the door by following the instructions below. Making this change requires 2 people. Instructions for changing the "right-hung" door and reassembling it so it is "left-hung": 1.
  • Page 19 9. Place the top hinge on the opposite side. 10. Place the door on the fridge, then loosely screw the hinge without tightening completely. 11 Once the door is installed, adjust the hinge by tightening the screws until the door is in the correct place.
  • Page 20: Before Use

    IV BEFORE USE Wait 24 hours before starting your wine fridge. We recommend that you leave your wine fridge upright, clean it with soapy water and leave it open to eliminate residual odors. Recommendations: • Place the fridge in a cool place away from sunlight and heat sources. •...
  • Page 21: Using Your Wine Fridge

    V USING YOUR WINE FRIDGE A. Loading your wine fridge • You can load your wine bottles in single or double rows. • For loading, take note of the following: if you don’t have enough bottles to completely fill your wine fridge, it’s best to spread the load over the entire height of the wine cellar to avoid a thermal imbalance at the top or bottom of the fridge.
  • Page 22: Loading Plan

    SETTING TYPES: Please note that depending on where your wine fridge is kept, how often the door is open, the ambient temperate and the loading, the time taken to reach the set temperate varies. Usually, it takes about 24 hours for the wine fridge to reach the desired temperature and indicate a stable temperature on the digital display.
  • Page 23: Adjustable Shelves

    The indoor fan helps keep the temperature consistent throughout the fridge. The fridge door should not be kept open for long periods of time as it will impact the fridge’s ability to remain cool. This wine fridge is called mono temperature, which means that you have a single choice of temperature.
  • Page 24 • Door seal protection: Ensure you open the door completely before removing shelves from their rails. • Do not slide multiple loaded shelves outwards as it may cause bottles to fall or may cause the wine fridge to tip forward. •...
  • Page 25: Functions And Temperature Setting

    D. Functions and temperature setting Please note that depending on the selected settings and the loading, it can take 24 hours for the wine fridge to reach the desired temperature. • Plug the power cord into a suitable power supply •...
  • Page 26 Decrease temperature K4: Press the button once, the LED display will flash indicating the current temperature. Press again to set the temperature. 1 touch will reduce the temperature by 1 degree. The blink stops after 5 seconds without action on your part, and the newly set temperature is recorded. The LED display then shows the actual inside temperature Mode Fahrenheit/Celsius K4: Switch the temperature display between Fahrenheit/Celsius by pressing the button.
  • Page 27: Wine Service Temperature Table

    E. Wine service temperatures: The table below shows the recommended serving temperatures for different wine. Recommended Wine temperature Champagne, sparkling 6˚C White: Sémillon, Sauvignon Blanc 8˚C Vintage Champagne 10˚C Dry white: Chardonnay 10˚C Dry white: Gewürztraminer, Riesling, Pinot gris 10˚C Sweet late harvested white: Sauternes, Barsac, 10˚C Monbazillac...
  • Page 28: Power Outage

    F. Power outage In the event of a power outage, all temperature settings will be automatically preserved, unless you change the thermostat setting. A power outage of an hour or two will not affect the temperature of your wine cellar. To avoid a sudden change in temperature when the power supply is turned off, you should avoid opening the door.
  • Page 29: Maintenance And Cleaning

    VI MAINTENANCE AND CLEANING A. Defrosting Your wine cellar is designed with a "natural" defrosting system. When the engine is shut down, the refrigerated surfaces of the wine cellar automatically defrost. The de-icing water descends into a drainage container near the compressor at the back of the wine fridge. This water is evaporated by the heat produced by the compressor.
  • Page 30 At certain times of the year, condensation on the door may occur. If this happens, wipe the water from the door and avoid opening the door of the fridge often as this amplifies the difference between the inside of the fridge and the ambient temperature. In case of prolonged absence, empty and clean the appliance;...
  • Page 31: Troubleshooting

    VII TROUBLESHOOTING Some issues can be easily resolved. Before using after-sales service or a repairman, please see the following table: Problem POSSIBLE CAUSES The wine cellar The fridge is not plugged in or it is switched off doesn't work. The circuit breaker is triggered, or the fuse is damaged. Check to see if the power outlet is powered by connecting another electrical appliance.
  • Page 32 The light doesn't The socket is not plugged in. work. The circuit breaker has gone off or a fuse is damaged. The lighting button is stuck on "OFF." Vibration. The wine fridge may not be level. The wine cellar Squeaking or slamming may come from the circulation of the seems to be refrigerant gas, which is normal.
  • Page 33: Warranty

    VIII WARRANTY WARRANTY EXCLUSIONS The warranty does not cover the wear parts of the product, or the problems or damage resulting from: (1) superficial deterioration due to normal wear and tear of the product. (2) defects or deteriorations due to the product's contact with food or liquids, and due to corrosion caused by rust.
  • Page 34: Caution

    IX CAUTION For more information about disposing of your fridge, you can contact your local or regional government. Electronic products that have not been selectively sorted are potentially hazardous to the environment and human health due to the presence of hazardous substances This wine cellar contains flammable foaming agents.
