Summary of Contents for Rocstor Enteroc N1823

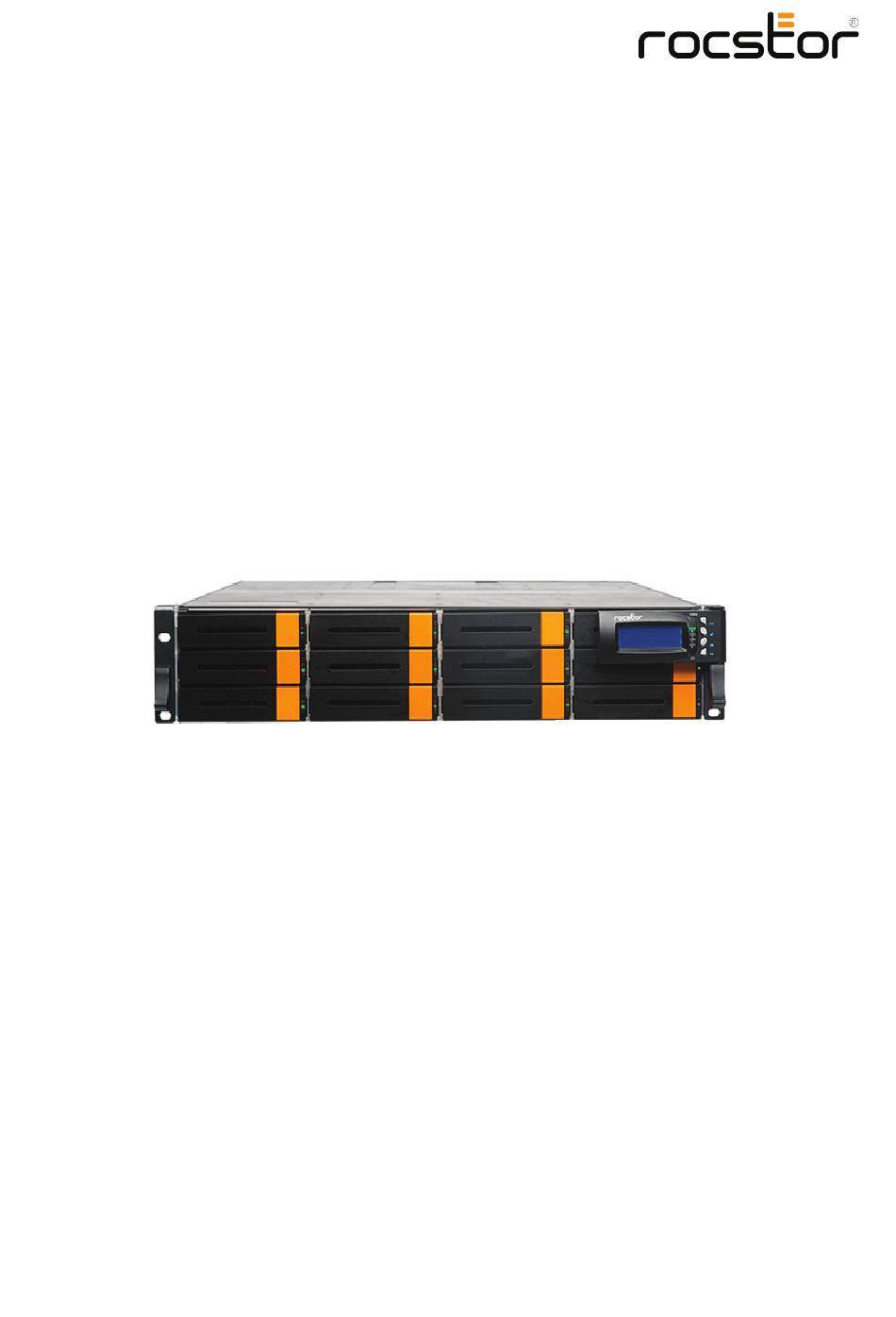

- Page 1 Enteroc N1823 12G SAS NAS System Hardware Manual Version 1.0...
-
Page 2: Table Of Contents
NAS System Table of Contents Preface .......................... 3 Before You Begin......................4 Chapter 1 Introduction .................... 5 1.1 Key Features ................................5 1.2 Technical Specifications ............................. 6 1.3 RAID Concepts ..............................7 1.4 Array Definition ..............................10 1.4.1 Drive Group ..............................10 1.4.2 Virtual Drive .............................. -
Page 3: Preface
NAS System Preface About this manual his manual provides information regarding the hardware features, installation and configuration of the SAS NAS System. Information contained in the manual has been reviewed for accuracy, but not for product warranty because of the various environment/OS/settings. -
Page 4: Before You Begin
NAS System Before You Begin efore going through with this manual, you should read and focus on the following safety guidelines. Information about the NAS System’s packaging and delivery are also included. To provide reasonable protection against any harm on the part of the user and to obtain maximum performance, user is advised to be aware of the following safety guidelines particularly in handling hardware components: Upon receiving of the product:... -
Page 5: Chapter 1 Introduction
NAS System Chapter 1 Introduction The NAS System 1.1 Key Features - Configurable to 19" rack-mountable 2U chassis - Supports up to Twelve (12) 2.5" and 3.5'' hot-swappable 12Gb/s SAS/SATA hard drives - Supports RAID levels 0, 1, 5, 6, 10, 50, 60 - Support Two 10Gb Ethernet ports for Server file-sharing application - Supports hot spare and automatic hot rebuild - Centralization of Data and Storage Management... -
Page 6: Technical Specifications
NAS System 1.2 Technical Specifications Hardware Platform Intel Quad Core Xeon 3.3G processor System Memory：8GB DDR4 ECC SDRAM up to 64GB Two 10Gb Ethernet ports (RJ-45) Up to Twelve (12) 2.5" and 3.5” hot-swappable 12Gb/s SAS. 6Gb/s SATA hard drives Real time drive activity and status indicators Connect up to 128 3Gb/s, 6Gb/s, or 12Gb/s SATA and SAS devices Two(2) 460W 80plus hot-swap power supplies with PFC... -
Page 7: Raid Concepts
NAS System 1.3 RAID Concepts RAID Fundamentals The basic idea of RAID (Redundant Array of Independent Disks) is to combine multiple inexpensive disk drives into an array of disk drives to obtain performance, capacity and reliability that exceeds that of a single large drive. The array of drives appears to the host computer as a single logical drive. - Page 8 NAS System drives to work concurrently on different I/O operations, and thus maximize the number of simultaneous I/O operations that can be performed by the array. Definition of RAID Levels RAID 0 is typically defined as a group of striped disk drives without parity or data redundancy.
- Page 9 NAS System Under RAID 5 parity information is distributed across all the drives. Since there is no dedicated parity drive, all drives contain data and read operations can be overlapped on every drive in the array. Write operations will typically access one data drive and one parity drive.
-
Page 10: Array Definition
NAS System Dual-level RAID achieves a balance between the increased data availability inherent in RAID 1 and RAID 5 and the increased read performance inherent in disk striping (RAID 0). These arrays are sometimes referred to as RAID 0+1 or RAID 10 and RAID 0+5 or RAID In summary: RAID 0 is the fastest and most efficient array type but offers no fault-tolerance. -
Page 11: Virtual Drive
NAS System A Drive Group is a group of physical drives attached to the RAID controller, and where one or more Virtual Drives (VD) can be created. All Virtual Drives in the Drive Group use all of the physical drives in the Drive Group. It is not possible to have multiple Disk Groups on the same physical disks. -
Page 12: Identifying Parts Of The Nas System
NAS System Two (2) power cords Two (2) Ethernet LAN cables One (1) RS232 null modem cable (phone jack to DB9) Spare screws, etc. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance. 2.3 Identifying Parts of the NAS System The illustrations below identify the various parts of the subsystem. -
Page 13: Lcd Front Panel
NAS System 2.3.1.1 LCD Front Panel Front Panel The LCD front panel is an option to setup some system settings. To start using the LCD panel, press the Select button to login and configure the system. See the LCD menu diagram in the next section. Parts Function Press this button to return to the previous... - Page 14 NAS System Use the Up or Down arrow keys to go through Up and Down the information on the LCD screen. This is also Arrow buttons used to move between each menu when you configure the system. Use the function keys to navigate through the menus in the front panel. The menus will show the system status and allows you to configure network settings, password and mute the alarm buzzer.
-
Page 15: Rear View
NAS System TEMP NORMAL RAID NORMAL DISK INFORMATION DISK_1 *O* TEMP 35C DISK_12 *O* TEMP 35C RAID ARRAY NAME SIZE: xxxxGB INFORMATION RAID LEVEL NORMAL/REBUILD/INIT NETWORK ETHO IP ETH0 NETMASK SUBMIT IP INFORMATION xxx.xxx.xxx.xxx 255.255.255.0 SETTING(YES/NO) ETH1 IP ETH1 NETMASK SUBMIT IP xxx.xxx.xxx.xxx 255.255.255.0... - Page 16 NAS System 3. RS232 Port (Phone-Jack) – This is used for upgrading the firmware of JBOD Controller SAS Expander board. 4. VGA Port – Use this to connect a VGA monitor. 5. LAN Ports – The system comes with two 10Gb Ethernet ports LAN0 and LAN1. 6.
-
Page 17: Drive Carrier Module
NAS System 8. AC Power Input Socket – Use this to plug in the power cable connected from power source. 9. Power Supply A, B – Two power supplies PSU-A and PSU-B are located at the rear of the NAS System. 10. -
Page 18: Installing Hard Drives
NAS System Every Drive Carrier has 2 status indicator lights. The status indicator light is used for Power On/Error. When this light is GREEN the power is on and everything is functioning normally. When the Power On/Error light is RED, then an error has occur that requires the user’s attention. - Page 19 NAS System b. Pull out an empty disk tray. Pull the lever handle outwards to remove the carrier from the enclosure. c. Place the hard drive in the disk tray. Turn the disk tray upside down. Align the four screw holes of the SAS/SATA disk drive in the four Hole A of the disk tray. To secure the disk drive into the disk tray, tighten four screws on these holes of the disk tray.
-
Page 20: Installing 2.5" Disk In A Disk Tray
NAS System Four bottom mounting holes of drive Four bottom mounting holes of drive Tray Hole A Tray Hole A Different screw positions: Comparing 6-Disk Drive to existing Drive NOTE: All the disk tray holes are labelled accordingly. d. Slide the tray into a slot. e. - Page 21 NAS System Tray Open Button b. Pull out an empty disk tray. Pull the lever handle outwards to remove the carrier from the enclosure. c. Place the disk drive in the disk tray. Turn the disk tray upside down. Align the four screw holes of the disk drive in the four of the disk tray.
-
Page 22: Preparing The System
NAS System Tray Hole W NOTE: All the disk tray holes are labelled accordingly. e. Slide the tray into a slot. Press the lever in until you hear the latch click into place. The Status LED will turn green when the subsystem is powered on and HDD is good. 2.6 Preparing the System 1. -
Page 23: Powering On
NAS System 2.7 Powering On 1. Plug in the two power cords into the AC Power Input Socket of PSU located at the rear of the NAS System. NOTE: The NAS System is equipped with redundant, full range power supplies with PFC (power factor correction). The system will automatically select voltage. - Page 24 Rocstor. The replacement part or product takes on either the Limited Warranty status of the removed part or product or the thirty (30) day limited warranty of the spare part. In the unlikely event that your Rocstor product has a recurring failure, Rocstor, at its discretion, may elect to provide you with a replacement unit of Rocstor‘s choosing that is at least equivalent to your Rocstor branded product in hardware performance.
- Page 25 Rocstor does not warrant that the operation of this product will be uninterrupted or error-free. Rocstor is not responsible for damage that occurs as a result of your failure to follow the instructions that came with the Rocstor branded product.
- Page 26 PERFORM, INCLUDING ANY LOST PROFITS OR SAVINGS OR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. ROCSTOR IS NOT LIABLE FOR ANY CLAIM MADE BY A THIRD PARTY OR MADE BY YOU FOR A THIRD PARTY. THIS LIMITATION OF LIABILITY ALSO APPLIES WHETHER DAMAGES ARE SOUGHT OR A CLAIM IS MADE UNDER THIS LIMITED WARRANTY OR AS A TORT CLAIM (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY), A CONTRACT CLAIM OR ANY OTHER CLAIM.
- Page 27 Rocstor on the Rocstor branded product or included with the Rocstor branded product at the time of your purchase or lease of the product is available for a fee. WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate...
- Page 28 “Rocstor” makes no representation or warranty as to the suitability or fitness of these devices for any specific application. Technical Support All Rocstor hard drives are backed by free telephone technical support for t ( ) years from the date of purchase.
- Page 29 Rocstor is a California Company; U.S.A. Contact Information Corporate Headquarters , California 913 U.S.A. Office: +1 (818) - 000 Email: info@Rocstor.com Technical Support / RMA Tel: (8 ) (USA and Canada) Tel: +1 (818) - 000 (Domestic and Hours: 9:00 am - 5:00 pm PST...
