Operations Manual

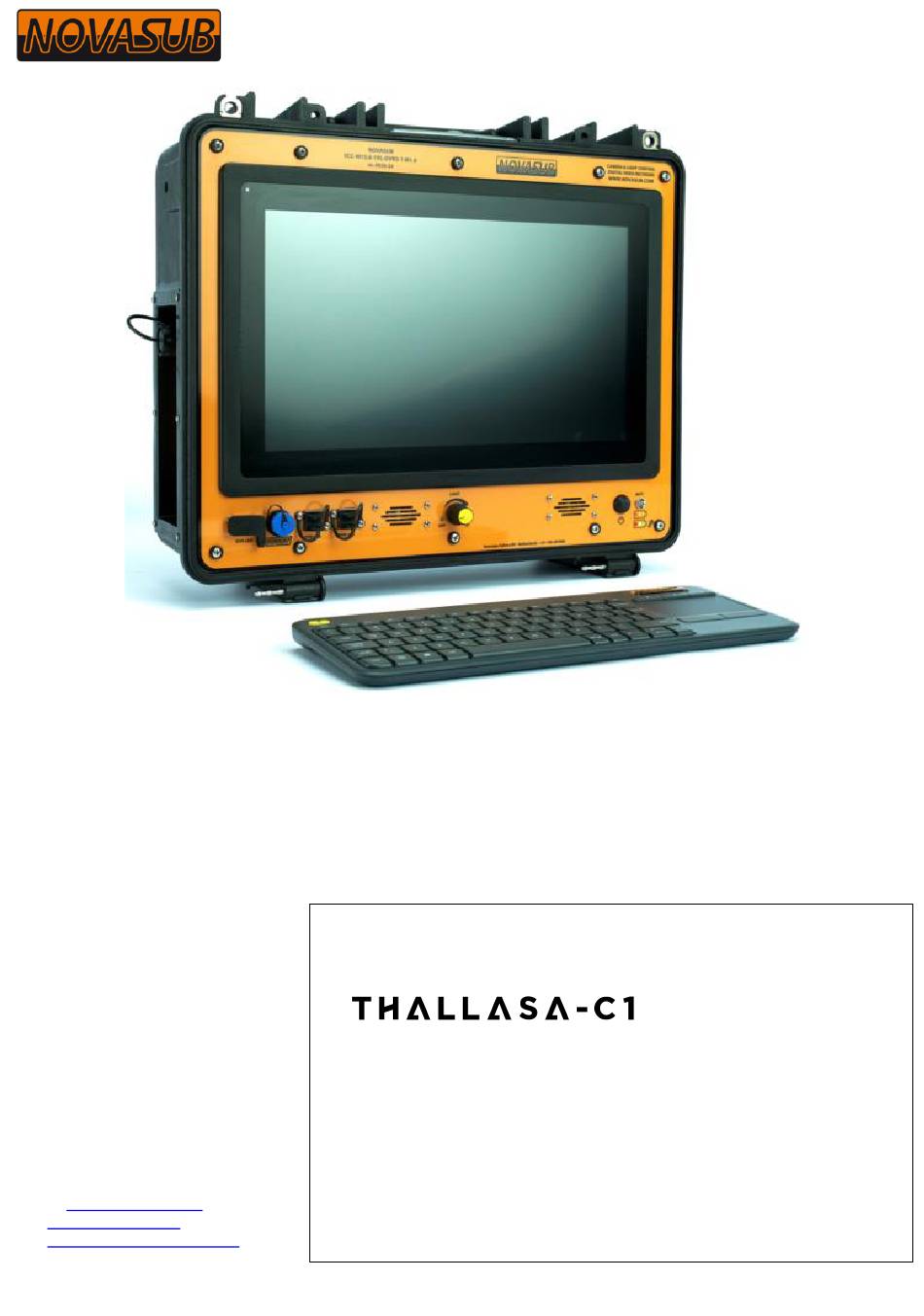

SCC-M15.6-xVL-DVR3-x
NOVASUB Surface control case with integrated
camera and light control, DVR3 and 15.6" Touch
daylight screen
Version: 1.3 - Date: 14-09-2022
SCC-M15.6-xVL-DVR3-x Manual
Advertisement
Table of Contents
Summary of Contents for Novasub THALLASA-C1
- Page 1 SCC-M15.6-xVL-DVR3-x Manual Operations Manual SCC-M15.6-xVL-DVR3-x NOVASUB Surface control case with integrated Seascape Subsea BV camera and light control, DVR3 and 15.6” Touch De Hoogjens 22 daylight screen 4254 XW Sleeuwijk The Netherlands Version: 1.3 - Date: 14-09-2022 T. +31-183-307900 info@novasub.com www.novasub.com...
-
Page 2: Table Of Contents
HELP & SUPPORT ..................................15 WARRANTY ....................................16 Warranty Period....................................16 Exclusions and Limitations ................................16 This Limited Warranty is not enforceable if item: ........................... 16 Limitation of Liability ..................................16 www.novasub.com Version: 1.3 - Date: 14-09-2022 2 of 16... -
Page 3: Abbreviations / Terminology
SCC-M15.6-xVL-DVR3-x Manual Abbreviations / Terminology Ampere hour Comms Diver Communication Diver Depth Gauge Diver Gas Analyzer DVR3 Digital Video Recorder NovaBus Novasub proprietary data transfer port Volt AC www.novasub.com Version: 1.3 - Date: 14-09-2022 3 of 16... -
Page 4: Introduction
DVR3 The Novasub DVR3 is the 3rd generation video recording software developed by Seascape Subsea. The software is completely redesigned from the ground up to accommodate better ease of use, new features, and better image quality. -
Page 5: Specifications
12 hours Size Length 474 mm Width 415 mm Height 214 mm Weight 12.7 kg Light voltage is only settable from G4.1 and up. USB3.0 is only available from G4.1 and up. www.novasub.com Version: 1.3 - Date: 14-09-2022 5 of 16... -
Page 6: Maintenance
Have your system serviced each 2 years by a Novasub Authorized Service Center. This service will include a general operational check, replacement of the battery, and overall upgrade of firmware. The service requires special tools and training. -
Page 7: General
Comms out 1 Comms Out 2 Video Out 2 Umbilical 2 Audio in 2 Depth Data See manual: DVR3 – Video Software Power Connection External Monitor See manual: DVR3 – Video Software www.novasub.com Version: 1.3 - Date: 14-09-2022 7 of 16... -
Page 8: Basic Controls
The monitor is fitted with a light sensor in the top left corner. The sensor react on the ambient light and regulates automatically the monitor back-light. If the ambient light increases the back light also increases, For example when you use it outside. Light sensor www.novasub.com Version: 1.3 - Date: 14-09-2022 8 of 16... -
Page 9: Procedures
If you also want to record the comms in the DVR3 then you need to connect in addition the “Audio Out” on the communication system to the “Audio in” on the DVR3 using an RCA-RCA cable. For Novasub communication systems this can be separate for each diver. -
Page 10: Dvr3 - Video Software
If your system has a DVR3 it can also be found in the “Help” function. That can be opened with the question mark in the bottom of the screen. All manuals and resources can be found under the “Support” tab on the website: www.novasub.com/support/ www.novasub.com Version: 1.3 - Date: 14-09-2022... -
Page 11: Hardware Settings
If your system has a DVR3 it can also be found in the “Help” function. That can be opened with the question mark in the bottom of the screen. All manuals and resources can be found under the “Support” tab on the website: www.novasub.com/support/ www.novasub.com Version: 1.3 - Date: 14-09-2022... -
Page 12: Connectors
GND Cam Vcc Cam Video + Video - Comms Mic Comms Mic Comms head Comms head Depth V+ Depth Out+ Optional in case of depth sensor / data sensor rs485+ rs485- www.novasub.com Version: 1.3 - Date: 14-09-2022 12 of 16... - Page 13 Diver 1 &2 Camera,Light & 4 wire comms Type Amphenol MS3102A-20-29S Mating type MS3106A-20-29P Function Pin layout GND Light Vcc Light GND Cam Vcc Cam Video + Video - Comms Mic Comms Mic Comms Head Comms Head www.novasub.com Version: 1.3 - Date: 14-09-2022 13 of 16...
- Page 14 Function Pin layout Depth sensor1 + Depth sensor1 - Depth sensor2 + Depth sensor2 - rs485B rs485A SCC 01-10 NovaBus, rs485 Type Bulgin,PX0412/08S Mating type PX0410/08P Function Pin layout rs485B rs485A www.novasub.com Version: 1.3 - Date: 14-09-2022 14 of 16...
-
Page 15: Help & Support
Further details about a Warranty Statement can be found at the chapter 12 Warranty For technical support contact your local a Novasub Authorized Service Center or Seascape Subsea BV. Seascape Subsea BV is the manufacturer of all Novasub branded products. -
Page 16: Warranty
2. has been repaired using unauthorized spare parts; modified or repaired by unauthorized Service Center; 3. serial number has been removed, altered or made illegible in any way, as determined at the sole discretion of Novasub; 4. has been exposed to chemicals. Novasub does not warrant that the operation of the product will be uninterrupted or error free, or that the product will work with any hardware or software provided by a third party.
