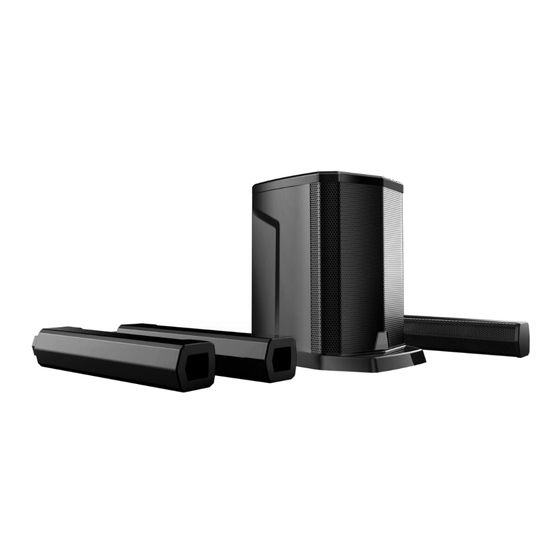

- Page 1 00072103 McGrey E-208LA column system, active 00072104 McGrey E-208LAB Battery column system, active Operating instructions Revision: 02-2022...
-
Page 2: Table Of Contents
Content Safety precautions ....................3 Additional precautions ................... 3 Connection of two E-208LA(B) column systems ........... 4 Bluetooth connection ....................4 Connection panel and functions ................5 Connection panel and functions ................6 Technical specifiactions ..................7 Simplified EU Declaration of Conformity ............... - Page 3 Thank you for choosing this product. To ensure that you are fully satisfied with this product, please read these operating instructions carefully before using our product. Keep these operating instructions in a safe place. The operating instructions must be passed on to all subsequent users. Follow the operating instructions! The signal word WARNING indicates hazards that can lead to serious injuries if no precautionary measures are taken.
-
Page 4: Safety Precautions
Safety precautions Always place the appliance securely on a level surface to avoid injury from the appliance falling over. Do not place any devices that can heat up (e.g. lighting equipment or fog machines) on the housing. Do not clean the plastic housing with solvents or other chemical-based cleaning agents. Keep the unit away from rain and moisture. -
Page 5: Connection Of Two E-208La(B) Column Systems
Connection of two E-208LA(B) column systems It is possible to connect two McGrey E-208LA or E-208LAB column systems via TWS stereo link or with a simple XLR cable, using one speaker as the "master" and the other speaker as the "slave". -
Page 6: Connection Panel And Functions
Connection panel and functions PAIR... -
Page 7: Connection Panel And Functions
Connection panel and functions 1. MP3 player Change between MODE USB/SD/BLUETOOTH Allows the user to connect a second, identical device to BLUETOOTH to create a stereo pair Play/Pause Repeat Previous song Next song SD card input USB Stick Input 2 & 7. Effect control: Control the amount of echo/delay effect on the microphone inputs here. -
Page 8: Technical Specifiactions
Technical specifications E-208LA E-208LAB Frequency range 50~20kHz 50~20kHz Sensitivity 104dB 104dB Sub output power RMS 70 Watt 70 Watt Sub output power PEAK 140 watts 140 Watt Tweeter output power RMS 30 Watt 30 Watt Tweeter output power PEAK 60 Watt 60 Watt 2Ω... -
Page 9: Simplified Eu Declaration Of Conformity
Simplified EU Declaration of Conformity Musikhaus Kirstein GmbH hereby declares that the column system type [McGrey E-208LA Column system, active and McGrey E-208LAB Battery column system, active] complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following web addresses: http://www.kirstein.de/docs/Konformitaetserklaerung/CE_Konformitaetserklaerung_...
