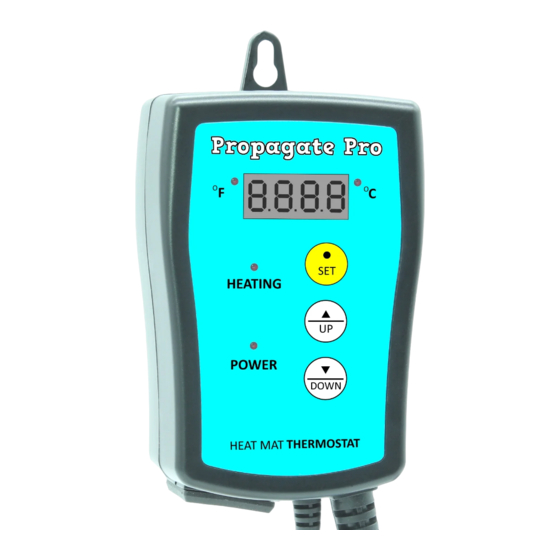

Heat Mat Thermostat Controller PPHTC-1
QUICK SETUP
1. Place the probe into the desired medium you wish to
control, for seeds/cuttings insert 1" to 1-½" into soil.
For controlling air temperature, you can use the
included suction cup or attach via clip or tape to an
open area away from drafts or cold surfaces.
2. Plug your heating device into the outlet on the bottom
of the thermostat.
3. Plug the thermostat's power cord into the electrical
outlet. The POWER LED light will turn on.
4. Changing Temperature Setpoint: Press the (SET)
button for 3 seconds until the display numbers
FLASH Press the '
button to adjust the temperature, press the (SET)
button again to set the chosen temperature.
USING THE CONTROLLER
Press and hold '
Fahrenheit.
Press and hold '
in Celsius.
INSTRUCTION MANUAL
' (UP) button to display temperature in
' (DOWN) button to display temperature
' (UP) or '
' (DOWN) arrow
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Propagate PRO PPHTC-1
- Page 1 Heat Mat Thermostat Controller PPHTC-1 INSTRUCTION MANUAL QUICK SETUP 1. Place the probe into the desired medium you wish to control, for seeds/cuttings insert 1” to 1-½” into soil. For controlling air temperature, you can use the included suction cup or attach via clip or tape to an open area away from drafts or cold surfaces.
- Page 2 When the unit is plugged in, the POWER LED light will be lit. The heating source (OUTLET PLUG) only has power when the HEATING LED light is lit. When the preset temperature is reached, the HEATING LED light will turn off, and shut off power to the (OULET PLUG). When the temperature drops 2°F (1°C) below your setpoint the HEATING LED light will be lit and send power to the (OULET PLUG).
