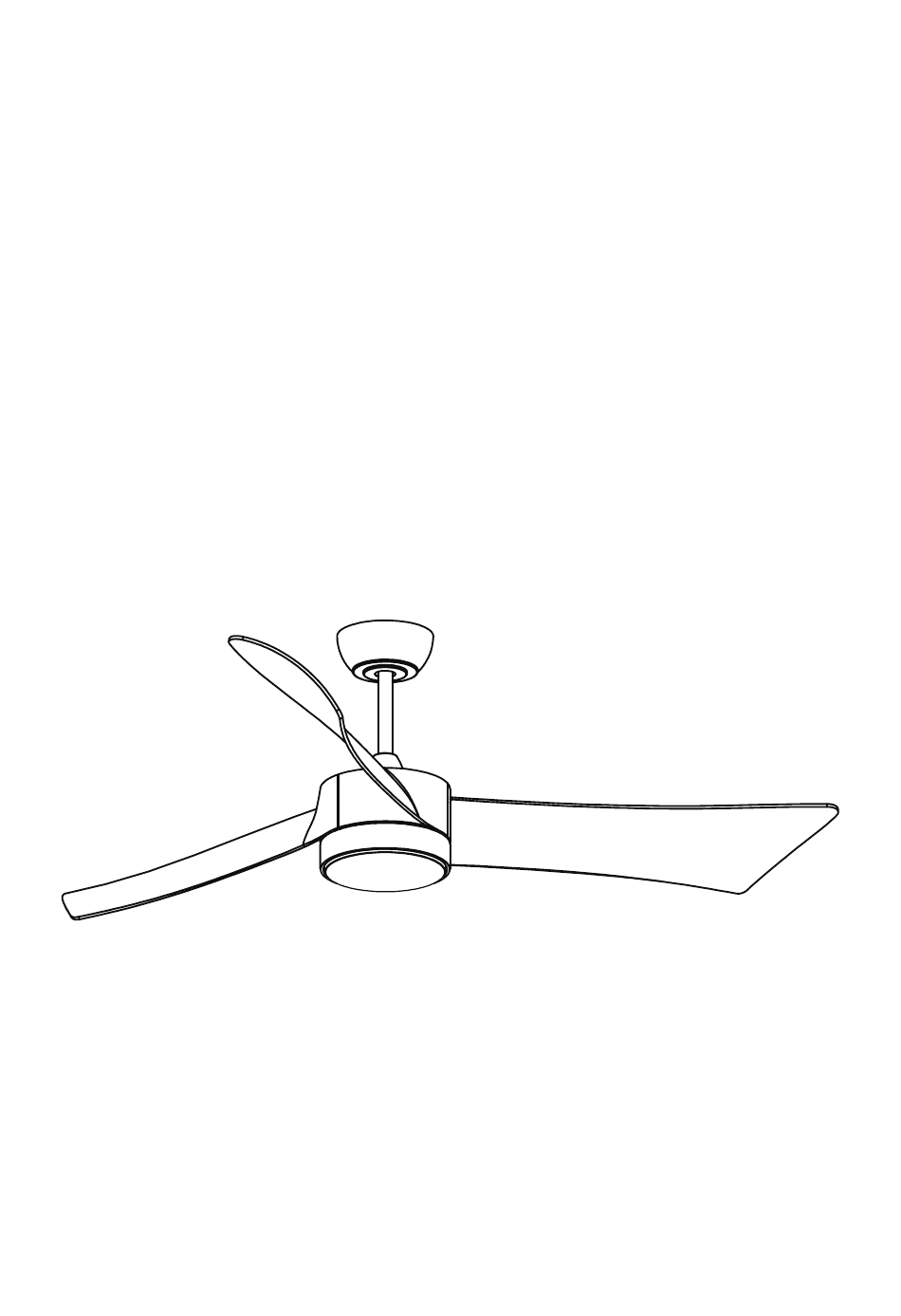

- Page 1 V20220822 CFN-1509-00 Instruction Manual Read Carefully Before Installation Keep for Future Reference...
-
Page 2: Table Of Contents
CONTENTS Introduction ......................1 Package Contents ....................2 Safety Information ....................3 Preparation......................4 Initial Installation ....................5 Downrod Mounting .................... 6 Circuit Connections ..................7 Canopy Installation ................... 8 Fan Blade Installation ..................8 Light Installation ....................9 Color Temperature Adjustment ................ 9 Remote Control Operation ................ -
Page 3: Package Contents
Package Connections Mounting Bracket Downrod Coupling Cover Canopy Cover Canopy Light Plate Fan Blades (×3) Shade Remote Control Receiver Fan Motor Assembly Mounting Screws (×2) Wire Nuts (×7) Metal Washers (×4) Spring Washers (×4) Mounting Bolts (×4) Balance Kit LED Light Kit... -
Page 4: Safety Information
Safety Information Warning! 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. -
Page 5: Preparation
Preparation 1. Turn off Your Power Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed junction box if you already have one installed. Failure to disconnect the power supply prior to installation may result in serious injury or death. -
Page 6: Initial Installation
Initial Installation Wood Ceiling Concrete Ceiling Anchor Bolt Mounting Bracket Supply Wires Metal/Spring Washer Mounting Screw/Bolt Step 1. Pass the supply wires through the central hole of the mounting bracket. Step 2. Secure the bracket to the junction box with appropriate fasteners. For wood or other thinner and weaker ceilings, use the mounting screws or bolts, the metal or spring washers, and drywall anchors (not included). -
Page 7: Downrod Mounting
Downrod Mounting Bolt Step 1. Remove the pin and clip from the downrod. Then partially loosen the two bolts in the yoke at the top of the motor assembly. Step 2. Carefully place the canopy, canopy cover, and coupling cover onto the downrod. Feed the lead wires from the fan motor through the downrod. -
Page 8: Circuit Connections
Circuit Connections Junction Box Mounting Bracket White (Neutral) Black (Live) Green or Bare Copper (Ground) Black White Receiver Receiver Blue (L) Pink (U) White (N) Gray (V) Red (W) Green (Ground) Pink (U) Blue (L) Gray (V) White (N) Red (W) White To Light (N) White... -
Page 9: Canopy Installation
Canopy Installation Step 1. Tuck all the connections neatly into the junction box. Step 2. Slide the canopy up to the mounting bracket and place the key hole slots over the mounting screws or bolts on the bracket. Rotate the canopy until the fasteners’ heads lock in place at the narrow section of the key hole. -
Page 10: Light Installation
Light Installation Step 1. Remove the bolts from the bottom of the fan motor. Step 2. Feed the wire plug of the fan motor through the middle of the light plate. Install the light plate onto the motor and secure it by replacing and tightening the bolts. Step 3. -
Page 11: Remote Control Operation
Remote Control Operation Install the remote control holder onto any wall or suitable flat surface using two mounting screws/bolts. LIGHT ON/OFF Function ALL OFF Main power switch Turns the light on or off and adjusts the color LIGHT temperature 1–6 Toggles among 6 fan speeds Starts or stops the fan Rotates the fan clockwise... -
Page 12: Troubleshooting
Contact Us Thank you for choosing our products! If you have any questions or comments, contact us at help@cs-supportpro.com and we'll resolve your issue ASAP! For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right.
