Summary of Contents for Martello Blastrac BMS 220ADB

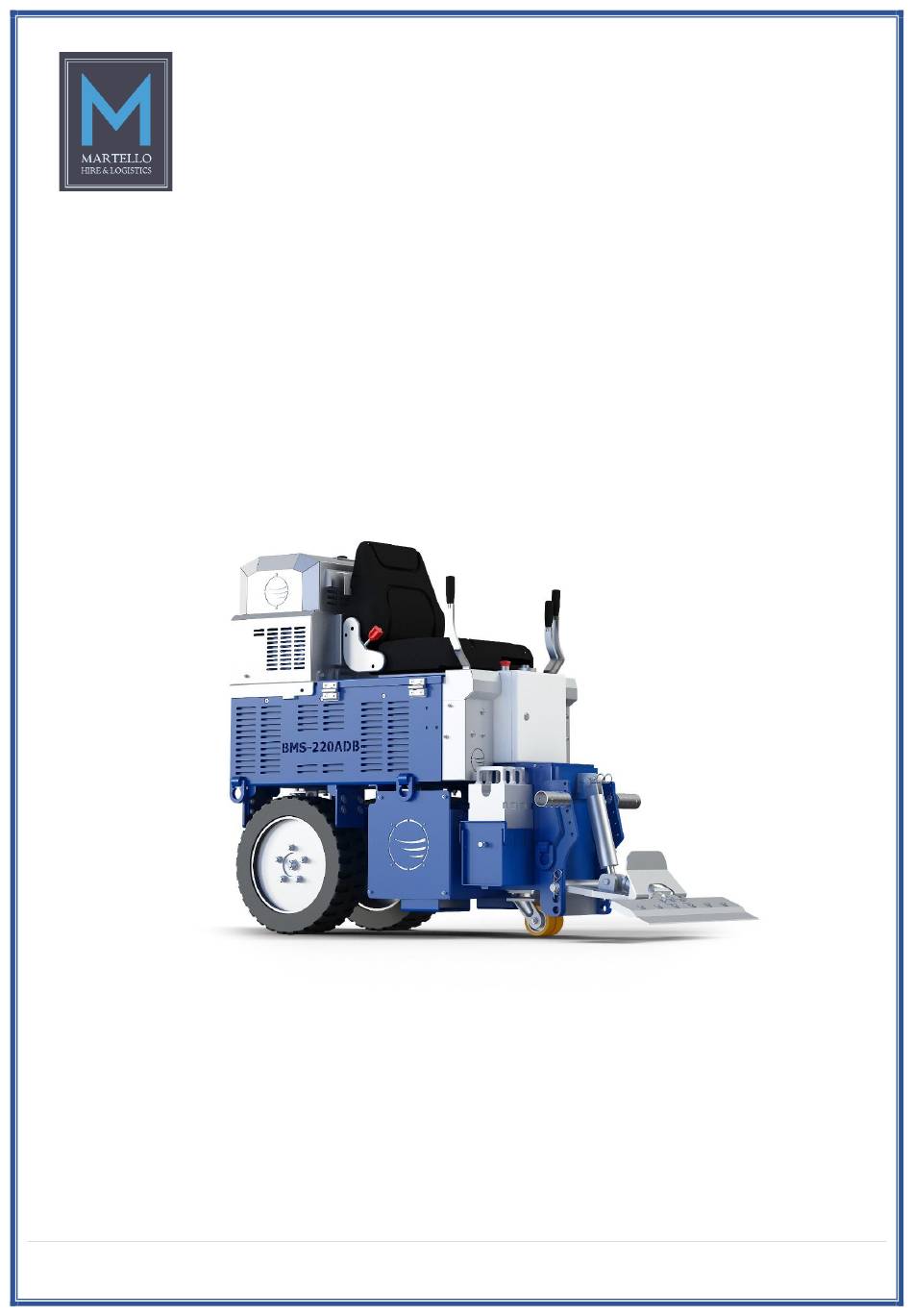

- Page 1 User Guide Blastrac BMS 220ADB Martello Hire & Logistics Limited Unit 12 Riverside Industrial Estate West Hythe Road Hythe Kent CT21 4NB Tel: 01303 901399 P a g e...
- Page 2 Machine Description The Blastrac BMS 220ADB machine is ideally suited for medium and large sized applications with the added benefit of being battery operated with built in charger. It is very manoeuvrable with a zero-turn radius, non-mark tyres and complete hydraulic control.
- Page 3 Do not make any changes to the machines electrical system. • Always call Martello Hire with any questions about the safety of the electrical components. • Do not use cables to move machine, keep cable away from heat, oil, sharp edges and moving parts.
- Page 4 • Do not use in a manner other than described. • In the event of malfunction or safety issue shut machine down immediately and contact Martello Hire. Transport Safety • Operate on level surfaces, do not operate on steep inclines or side traverses.
- Page 5 Initial Operation Checks • Check power supply cable is unplugged, and cable stored in the machine. • Ensure cables are not damaged. • Control levers should be in neutral position. • Hydraulic hose connections are tight and no evidence of leaks. •...
- Page 6 Pushing one handle forwards and pulling another handle backwards the machine will turn around on its axis. Correcting direction while moving is accomplished by slightly reducing pressure on one handle or the other while moving. 1. Left wheel control handle. Forward/Reverse Neutral=Brake 2.
- Page 7 The charger starts and stops automatically when the contact switch is off, and the plug is in. You can charge the batteries all night long, when the batteries are full the charger stops automatically. Warning! Always disconnect on board charger before operating the machine. Sound and Vibration Data Sound Level: 77 dB (A) relative to 20uPa.
- Page 8 The machine is supplied with one tool holder. Having additional tool holders, blade holders and blades will save time on the job. When the blade is dull, instead of taking the time to replace it or sharpen it on the job, replace it with another prepared set. Or, when a different type or size of blade is needed, you have them ready to use.
- Page 9 Blades Application Efficient and fast work can be achieved when you use the correct blades and settings. The operator must remember to prepare the correct angle and keep the blade sharp. During work the blade will become dull. To reduce this process the operator can add extra weights to the front or change the angle between the blade and the ground.
- Page 10 Always wear cut-resistant gloves when handling blades. Using Wing Blades Use only sharp winged blades. Types of Blades For different materials special tools need to be mounted. The shape and width are defined by many years of experience. Below are a few types described: Self-Scoring Blades.
- Page 11 Ditching Cross Room Ditching: • When removing hard to remove ceramic or VCT • Cross room ditch with a 50 to 155mm blade • Ditches 300mm to 600mm apart • In the same direction as floor removal • This relieves pressure of tiles holding each other •...
