Teknoware AALTO CONTROL TST5108 User Manual

Wireless monitoring unit
Hide thumbs Also See for AALTO CONTROL TST5108:
Table of Contents

Advertisement

Quick Links

Download this manual

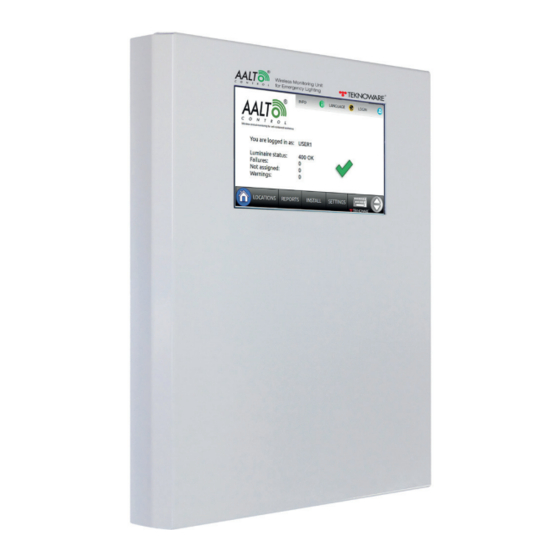

Wireless Monitoring Unit
U s e r G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AALTO CONTROL TST5108 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teknoware AALTO CONTROL TST5108

Summary of Contents for Teknoware AALTO CONTROL TST5108

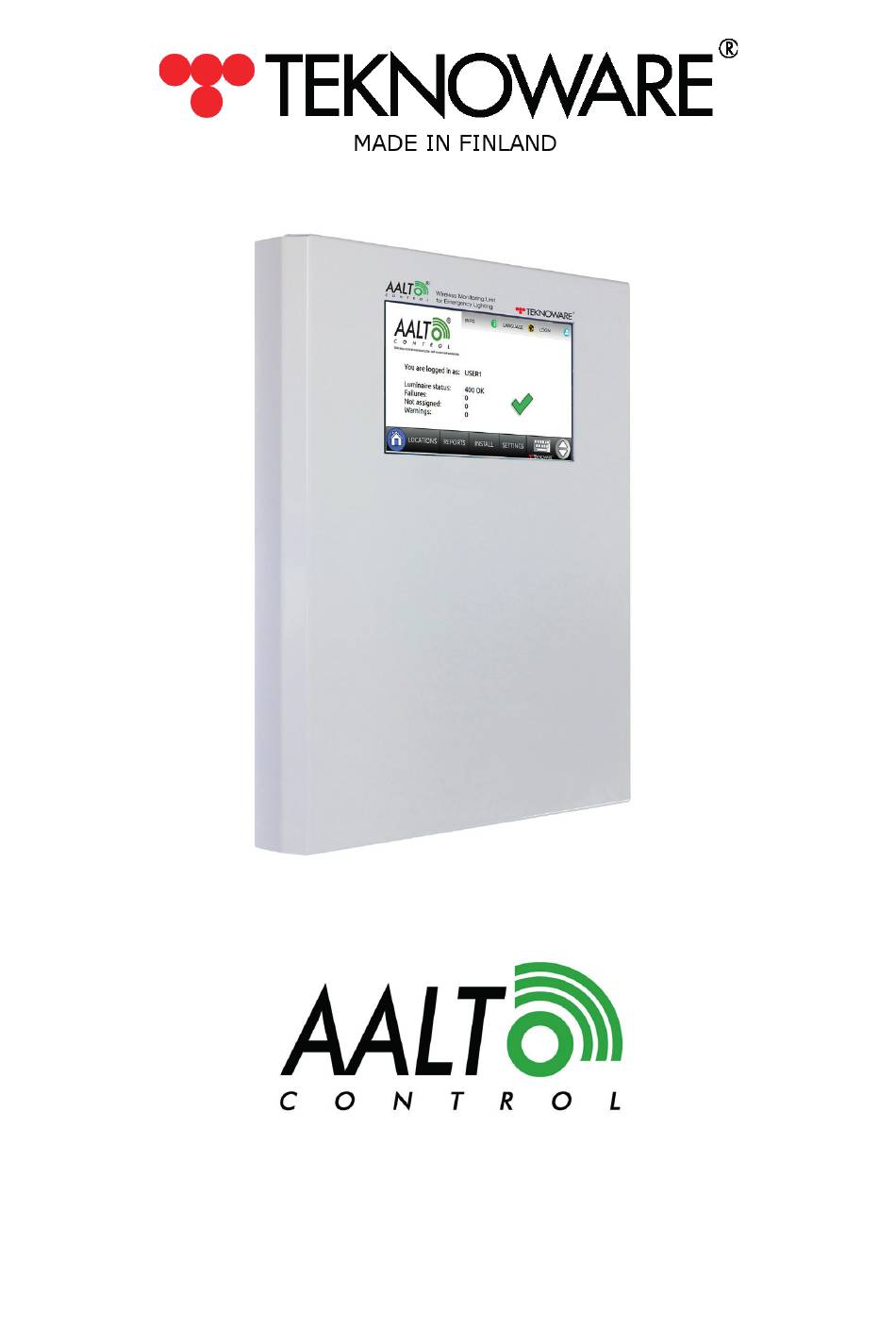

  • Page 1 Wireless Monitoring Unit U s e r G u i d e...

  • Page 2: Table Of Contents

    Table of Contents 1. System setup ....................3 1. 1. System Setup Process .................. 3 1. 2. First Login ....................3 1. 3. Setting up Software settings ................ 3 1. 4. Setting up Hardware settings ............... 4 1. 5. Setting up External Coordinator ..............5 1.

  • Page 3: System Setup

    AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 1. System setup 1. 1. System Setup Process To set up the system: 1. Log in for the first time and change the administrator password (Chapter 1. 2) 2. Check, and set the system time (Chapter 1. 3) 3.

  • Page 4: Setting Up Hardware Settings

    AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 Before making further system changes, make sure to check and set the system time by tapping the SET TIME button, and typing in the correct time and date. After setting the system time, make the following settings: 1.

  • Page 5: Setting Up External Coordinator

    AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 1. 5. Setting up External Coordinator Make sure that the external coordinator and the Aalto Control WMU unit are both connected to the network. Type in the IP address of the external coordinator, and tap SAVE. The IP address is set according to the local network settings.

  • Page 6: Adding Locations (Areas And Buildings)

    AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 1. 6. Adding Locations (Areas and Buildings) NOTE! If you intend to import the luminaire data from a CSV file, and the said file includes Location data (Buildings and Areas), you do not need to pre-create the Locations. They will be created automatically during import.
  • Page 7 AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 3. Type the Site name (for example the company name) and tap Enter, and then Apply. 4. Tap the menu icon again, and select Add Building. Name the Building (e.g. BUILDING1), tap Enter, and then Apply.

  • Page 8: Adding Luminaires

    AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 6. To add an Area, tap the menu icon next to the Building name, tap Add area, name the area (e.g. FLOOR 2), and tap Enter. 7. If you want to add more Areas, repeat step 6 8.

  • Page 9: Creating User Accounts

    4. To remove a user account, select a user from the list, and tap DELETE. Note that you cannot delete an Administrator user account, if the account is the last Administrator account in the system. NOTE! Make sure your administrator password is not lost. If the password is lost, contact Teknoware’s After Sales.

  • Page 10: Email Reporting Settings

    1. 10. Updating the Aalto Control WMU Software 1. First, make a backup from the Aalto Control WMU database (Chapter 1. 3). 2. Copy the update files received from Teknoware to a USB drive’s root folder, and insert the USB drive to the USB port.

  • Page 11: Basic Functions

    AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 2. Basic functions With the Aalto Control WMU you can: • Check faulty luminaires • Divide the luminaires into previously created locations • Set Note data for luminaires • View luminaire status and information •...

  • Page 12: Using Filters (Creating A Luminaires List)

    AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 2. 3. Using Filters (creating a Luminaires List) 1. To display the desired luminaires in REPORTS view, always first tap LOCATIONS and select the Site, Buildings and/or Areas, in which the luminaires to be shown are located. 2.

  • Page 13: Adding Luminaires To Locations (Install View)

    AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 6. Finally, tap the UPDATE VIEW button, to display the filtered luminaires (in REPORTS) in the selected locations (in LOCATIONS). NOTE! Depending on the amount of luminaires, displaying the luminaires may take a while. 7.

  • Page 14: Adding Notes To Luminaires (Install View)

    AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 5. Choose the Buiding and Area you wish to add these luminaires to. You can also write values for the Note fields, if you wish to add a note for all the selected luminaires. 6.

  • Page 15: Using Action Tab (Reports View)

    AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 5. Tap APPLY, and approve the changes by tapping OK. 6. Tap < in the right upper corner of the screen to return to Install view 2. 6. Using Action tab (REPORTS view) From the Action tab, you can set luminaires to BLINK state, remove the luminaires from the system and all locations, or set the Exit lights OFF or ON.
  • Page 16 AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 3. Select the STACK option, if you wish to stack all events by an individual luminaire into a single row. I.e., if this option is not selected, each individual event will create a row. In stacked view, tapping the “+”...

  • Page 17: Using Prohibitions Tab To Create Test Schedules (Reports View)

    2. 8. Using Prohibitions tab to create test schedules (REPORTS view) Test prohibition (only for selected Teknoware luminaire models) With the Test prohibition tool you can set up time periods, during which the luminaires are not allowed to run tests.
  • Page 18 AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 NOTE! Carefully plan the Test Prohibitions before implementing them, leaving enough time for each luminaire to run the automatic tests. It is recommended that no less than 12 hours of “free” time is left for each luminaire. Also note, that overlapping or large Test Prohibition groups may result in groups of luminaires running tests simultaneously.
  • Page 19 AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 APPENDIX 1. Adding luminaire info in CSV form When setting up the system, or making substancial updates into the luminaire info, the most convenient way to add or edit the luminaire info is by using a CSV-compatible spreadsheet software, such as OpenOffice Calc, or Microsoft Excel.
  • Page 20 AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 Adding/editing luminaire info with a spreadsheet software Remove the USB drive from the Aalto Control WMU, and insert it to a USB port of a computer with a CSV-compatible spreadsheet software. Open the previously created CSV file. The file contains a com- plete list of all the RFIDs of the luminaires in the system.
  • Page 21 AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 Make sure the table contains exactly 7 colums, and that in the file there is only information described above. For example, do not create a header row for the information. Also, do not use special format- ting such as colored font, bold or italics.
  • Page 22 AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017 Remove the USB drive, insert it back into the Aalto Control WMU console, and import the CSV file back to the system. The information added in the spreadsheet software is added to the system.
  • Page 23 AALTO CONTROL WMU USER GUIDE VOT97, Rev 1.1, 1.3.2017...
  • Page 24 Contact Information: Teknoware Oy PL 19, FI-15101 Lahti Ilmarisentie 8, FI-15200 Lahti Tel: +358 (0)3 883 020 Fax: +358 (0)3 8830 260 Email: Emergency lighting sales: emexit@teknoware.com After Sales / Product support: aftersales@teknoware.com www.teknoware.com...
