Summary of Contents for Refine APEX MAGNUM

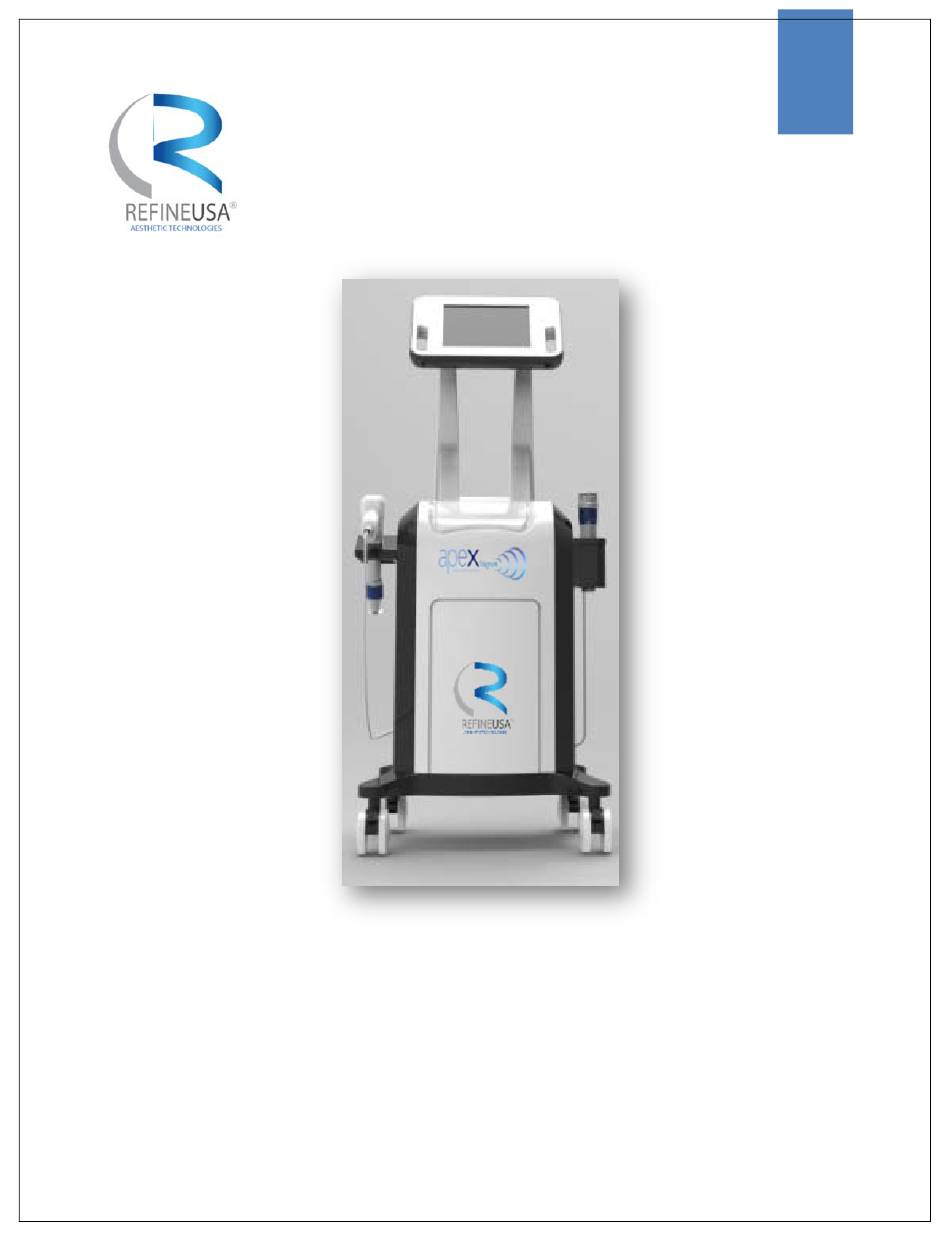

- Page 1 2019 APEX MAGNUM DUAL FUNCTIONING ACOUSTIC WAVE THERAPY SYSTEM User’s Guide Revision 1 12/11/2018...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ………………………………………………………………………………………………………….………………………………..2 Safety Warning ………………………………….…………………………………………………..……………………..………….….…………3 1 General Characteristics …………………………………..……………………………………………………….……….……….……..4 1.1 Shockwave Characteristics ………….…………………..……………………………………….………….….….…….5 1.2 Biological effects of Shockwave treatments..………………………………..……………….…………….…….6 1.3 Possible side effects of shockwave treatments ………….………….…...…………..………….….…..…..6 1.5 Contra-Indications for shockwave treatments ………….…..……………..…………..………….………..….6 2 Parts Introduction …………..………………………………………..………………….……………………………………...….……..7 2.1 Accessories List ……….………………………….………….………………………………………………….……..…..….7 2 .1.1 Parts Inventory List.…………………………………………………………………………………………………8 2.2 Accessories Installation ……………………………….……………………….………………………..………..…….…9... -
Page 3: Introduction
User: Thank you for choosing the APEX MAGNUM dual functioning acoustic wave therapy system. The Apex Magnum dual functioning acoustic wave therapy system is a high precision device. Please follow the instructions in order to operate the machine correctly. Please do not remove or interchange any accessories on the APEX machine. -
Page 4: Safety Warning
WARNING Safety note: READ THIS MANUAL TO LEARN ALL SAFETY REQUIRMENTS AND OPERATING PROCEDURES, BEFORE ATTEMPTING TO OPERATE THE SYSTEM. • High voltage components are contained inside the system. • Set proper parameters before applying treatment. • Do NOT open the back panel. USER’S INSPECTION WARNING Note the unit has not been designed for use in potentially explosive atmospheres. -
Page 5: General Characteristics
The APEX Magnum system has predefined programs stored in the memory of the main unit, a great time-saving feature. Based on detailed research and practical use of the device, the well-organized predefined programs will provide recommendations for the treatment of various conditions. -
Page 6: Shockwave Characteristics
Each type of generation method produces shockwaves with different time progressions and spatial arrangements. The APEX Magnum system provides both the pneumatic and electromagnetic principles of shockwave generation. A pressure wave is formed via a projectile. Using elastic impact, the kinetic energy of the projectile is transferred into the probe of the applicator and then into the client's body. -
Page 7: Biological Effects Of Shockwave Treatments
1.2 BIOLOGICAL EFFECTS OF SHOCKWAVE TREATMENT The effects of the shockwaves mainly occur at sites where there is a change in impedance, such as the bone/soft tissue interface. Analgesic effect: Destruction of afferent nerves and nerve receptors. CNS stimulants, sensed as pain, are also inflammation transmitter substances. Regression of pain caused by local ischemia. -
Page 8: Parts Introduction
2. PARTS INTRODUCTION 1. Touch Screen 2. Electromagnetic handle accessory frame 3. Pneumatic handle accessory frame 4. Plug for Pneumatic wave handle 5. Cooling Fan 6. Power Switch 7. Power Plug 8. Filter cup with pressure gauge 9. Plug for pedal switch 10. -
Page 9: Parts Inventory List
2.1.1 Parts Inventory List Item Description Quantity Pneumatic Handle Pneumatic hand piece Electromagnetic Handle Shockwave hand piece Pneumatic Transmitter Adapters Pneumatic transmitter adapter treatment heads Electromagnetic Transmitter Electromagnetic transmitter Adapters adapter treatment heads Foot pedal for power Foot Pedal Apex Silicone Caps Blue covers Apex Protective Sheaths Latex covers... -
Page 10: Accessories Installation
2.2 ACCESSORIES INSTALLATION Inspect the box for damage and report any to the transport carrier and the distributor. Do not proceed with assembly and set-up if the box is damaged. Keep the original box and packaging to ensure safe future transport of the device. When bringing the device from a cold environment into a warm one, do not plug it into the power source until the device has had time to equilibrate to room temperature (Minimum 2 hours). -
Page 11: Pneumatic Accessories
2.3 Pneumatic Accessories Pneumatic-shockwave handle Flat Pneumatic Transmitter Adapters A 6 mm A 10 mm A 15 mm A 20 mm A 25 mm Convexed Pneumatic Transmitter Adapters B 15 mm B 20 mm B 25 mm Concaved Pneumatic Transmitter Adapters C 15 mm C 20 mm C 25 mm... -
Page 12: Replacement Parts
2.5 Replacement Parts Item Photo Description Pneumatic Handle Pneumatic hand piece Electromagnetic Handle Shockwave hand piece Electromagnetic Transmitter Shockwave handle tips Adapters Foot Pedal Foot pedal for power Pneumatic Transmitter Pneumatic handle tips Adapters... -
Page 13: Pneumatic Transmitter Adapter Replacement
2.6 Pneumatic Transmitter Adapter Replacement Only one transmitter can be installed on the applicator at a time. To exchange the transmitter: stop and power off the machine. Check the treatment protocols to choose the proper transmitter. Secure the transmitter on the applicator prior to treatment #1 Transmitter Adapter Screw Cap After Installation... -
Page 14: Electromagnetic Adapter Replacement
2.7 Electromagnetic Adapter Replacement Only one transmitter can be installed on the applicator at a time. To exchange the transmitter stop and power off the machine. Check the treatment protocols to choose the proper transmitter. Secure the transmitter on the applicator prior to treatment. Unscrew adapter by twisting counter clockwise until removed from handpiece. -
Page 15: System Operations
3. SYSTEM OPERATIONS 3.1 Pneumatic-Shockwave Control Panel Description FIG 1 In interface as (FIG 1) Input default password: “888888” FIG 2 In interface as (FIG 2) Click on “Basic setting” to select language, set time Notice: “ADVANCED SETTING” is only for Engineering debugging. - Page 16 In interface as (FIG 3) (1) Apply baby oil to body part to be treated. (2) Make selection to enter the treatment screen. (3) Install the recommended tip on the handle. (4) Choose the mode you need, for example, select “C mode”. (5) Click the “Start”...
-
Page 17: Electromagnetic Shockwave Control Panel
3.2 Electromagnetic Shockwave Control Panel Click the interface (Fig1) △Click-SHOCK” to enter interface as (Fig 4) To enter interface as (Fig4) Fig 1 Fig 4 1) Click on the body part on the screen to be treated. 2) ach operation is programed with two automatic modes, C mode and P mode(s). C mode is comfortable mode, softer, suitable for customers with weak tolerance P mode is professional mode, greater intensity, based on clinical recommendations Both modes have parameters that have been set, including the default intensity, frequency, and number... -
Page 18: Touchscreen Calibration
8) “Impact” represents the number of shocks. 9) “Round” represents the number of rounds completed (600 impacts are one round). 10) “Frequency 12HZ” stands for the system default work frequency is 12HZ, “Energy 100MJ” stands for the system default, work Energy is 100MJ click on “<” and “>” to adjust. The range is: 1HZ- 16HZ or 5-200MJ. -
Page 19: Troubleshooting Tips
3.4 Troubleshooting Tips Please attempt the following diagnostics if your device is not operating properly. If additional assistance is required, please call our Customer Service Department. 1. Nothing happens when turning on the general power switch: Ensure that AC power is normal Ensure the power supply line is not broken Ensure the fuse is normal and not blown. -
Page 20: Maintenance And Safety
30 months. The inspection and recalibration must be performed by a service department authorized by Refine, USA®. If the inspection is not done at 30- month intervals, the manufacturer does not guarantee the technical parameters or safe operation of the product. -
Page 21: General Safety
If any anomalies or inconsistencies are found, stop using the device and contact an authorized Refine USA service department. If the behavior of the device shows any divergences from the functionality procedures described in this user’s manual, stop using the device and contact an authorized member of the service department. - Page 22 immediately. If the device is not used in accordance with this manual or if it is used when the device exhibits functional differences from those stated in this manual, then our company is not responsible for any damage to or caused by the device. Do not try to open, remove protective covers, or dismantle the device for any reason.
-
Page 23: Protective Sheaths
5.1 Protective Sheaths When using protective sheaths with the Electromagnetic Hand piece please ensure that the vents are not covered. Failure to do so may result in permanent damage. Correct usage of protective sheath. Correct usage of protective sheath. Improper use of protective sheath. Sheath covering air vents. -
Page 24: Warranty
What to do if you think your Product is defective: Complete a repair request at www.refineusa.com. During the Warranty Period, you must supply Refine USA, LLC with a copy of your dated bill of sale showing that this product was purchased in the United States. After contacting Refine USA, LLC you may be required to deliver or send the Product properly packaged, freight/insurance prepaid, to the corporate office together with a photocopy of your bill of sale.
