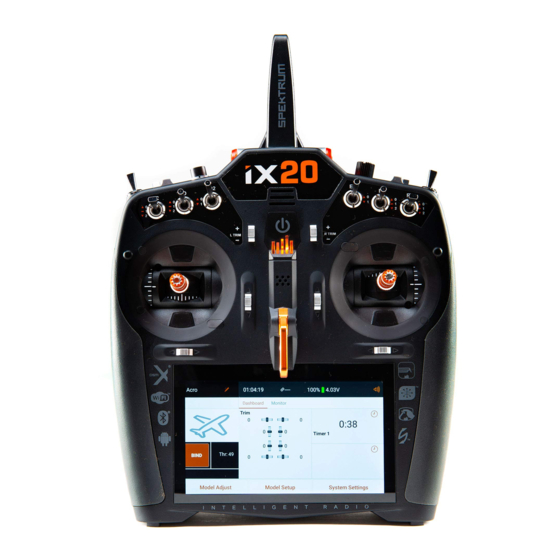

Spektrum AirWare iX20 Manual

iX20 Spektrum™ AirWare™ Change Log
2022-Feb-22
Version 1.08.11
New Features
• 14 Channel Support Mode- 14 fully proportional channels with 2048 resolution
and 22ms frame rate is now available when using the new 14 and 20 channel
PowerSafe receivers.
• Sailplane Camber Switch Selection- In sailplane model type, the camber
screen now allows all the switches and levers to be assigned as an input.
• Renaming Channel Names – The ability to edit channel names has been added
to the Servo Setup screen.
• Battery Percentage Macro – A telemetry audio event macro has been added to
announce the battery percentage when using a Smart Battery.
• Telemetry Log Recording Enabled by Default – An "Automatic" mode has
been added to the telemetry recording settings. This is now the default, and the
log is saved to the internal memory of the transmitter.
• Single Column Mode to Display Models – In the Model Utilities and Model
Select screen there is a new option to display the list of models in a single
column with larger model images.
• Custom Categories – Users can now create custom sub-categories within the
currently available categories. A model can be also designated to be a "Favorite"
and will be displayed in a new Favorites category tab.
• Importing Audio Settings - Audio Settings can now be imported from another
model into the currently active model.
• Max Amperage Display Reset – In the Rx Pack Capacity telemetry screen, the
maximum amperage is now displayed, along with a button to reset the maximum
value.
Corrections & Improvements
• Programmable mixes now function properly after Channel Assign has been used
to move control surfaces to non-standard channels.
• High/Low Labels in Servo Setup Travel and Absolute Travel are now displayed
properly for non-English languages.
• Integrated and model timers now properly show values properly when greater
than 24 hours.
• In Sailplane model type, motor channel is now labeled properly when a model is
configured as a 4 Aileron/2 Flap
• Battery Not Charged for Flying alarm is now working properly
• Airware no longer crashes when User Defined 2 telemetry type is logged.
