Summary of Contents for Digital Loggers DIN Relay 4

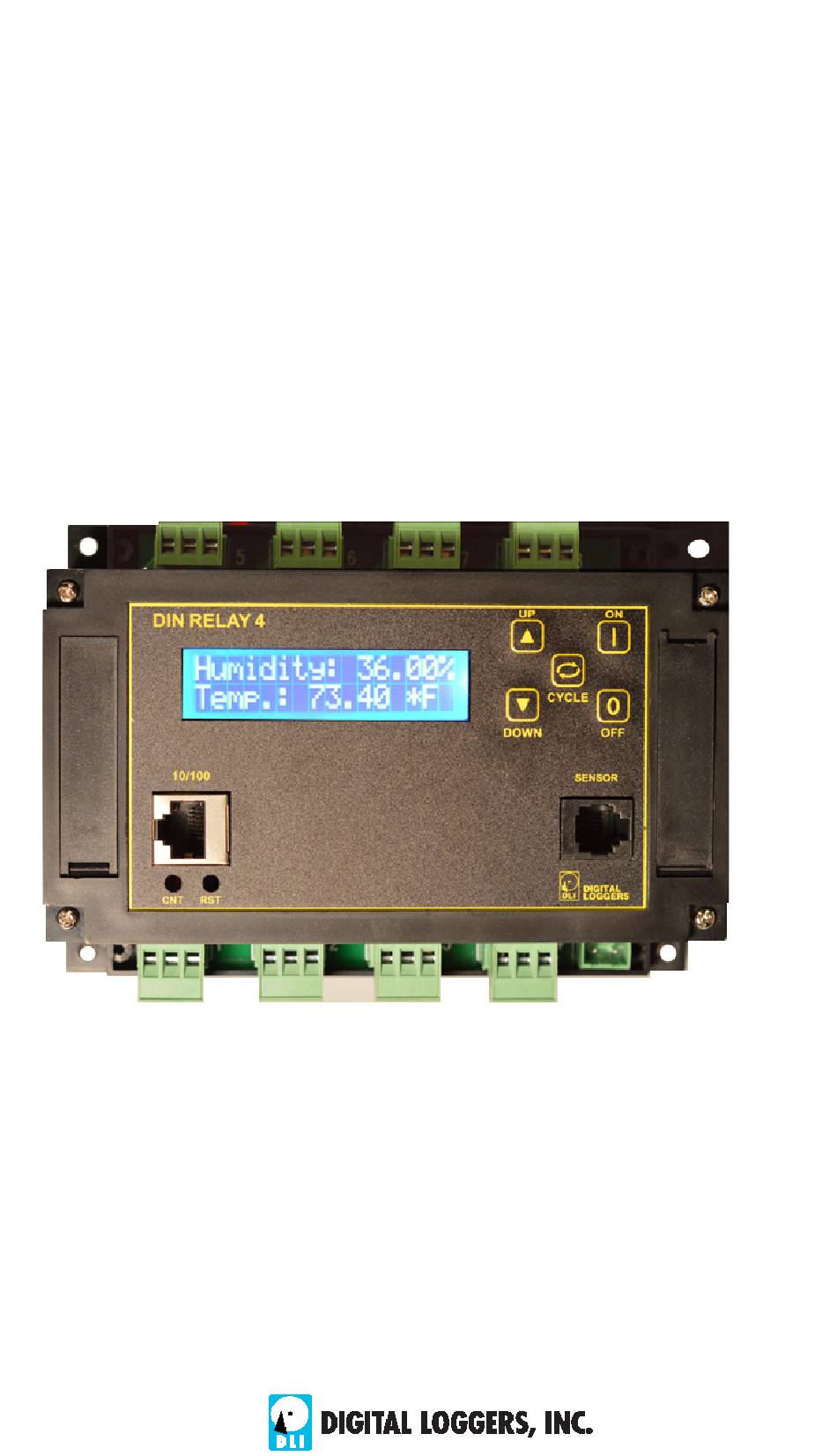

- Page 1 Web Controlled DIN Relay 4 USER’S GUIDE V1.4...
-
Page 2: Standard Features
Mounting Rails The DIN relay mounts on standard 35mm rail. Call us at (408) 330-5599 if you need a piece cut to length. To mount directly on a panel, use #6 screws on 5.8 x 3.9" centers. DIN RELAY 4 Digital-Loggers.com... -
Page 3: Quick Setup
Quick Setup Use these shortcuts for a quick installation: 1. Connect using an RJ-45 cable. Make sure the 192.168.0.100 IP is compatible with your LAN. DIN RELAY 4... - Page 4 Open Start, right click on Network, then on Properties. Double click Network and Sharing Center, click Manage Newtork Connections. A Network Connections window appears. Right click on the network connection to the switch, ie. Local Area Network. Proceed to step 2. DIN RELAY 4 Digital-Loggers.com...
- Page 5 Max OS X IP Setup Turn AirPort off temporarily. Click the Apple logo, then System Preferences, then Network. Select Built-In Ethernet and then Configure. Under the TCP/IP tab, select Manually and enter an IP address such as 192.168.0.50 DIN RELAY 4...
-
Page 6: Basic Operation
Switching Relays on and Off The relay control page lets you control any relay. The sequence delay in which relays will be switched on is determined by settings on the setup page. DIN RELAY 4 Digital-Loggers.com... -
Page 7: Setup Page
You may also enter a screen refresh delay. If “Enable screen refresh” is checked, and a delay value is entered, your browser should periodically update the status screen. The maximum update rate is limited by browser settings. DIN RELAY 4... -
Page 8: Adding Users
A fixed IP address, network mask, gateway, and subnet mask must be entered in this field. To lock these settings, click the “protect” button. This blocks changes until the hardware reset button in the lower left corner is pressed. DIN RELAY 4 Digital-Loggers.com... - Page 9 The default port is 80. For example, if you change the port to 5372, use http://192.168.0.100:5372 to access the relay. HTTPS Recommended for security, but can be disabled by admin. DIN RELAY 4...
-
Page 10: Power Input And Consumption
0.180 Startup 2.0W All OFF 0.085 All ON 0.41 4.90 All ON 0.37 All OFF Shutdown Ethernet Link Status The LCD now provides Ethernet cable connection status. LEDs are no longer present on the Ethernet connector. DIN RELAY 4 Digital-Loggers.com... -
Page 11: Manual Controls
+5V power out, Pin 3 is the bidirectional TTL data bus. All other pins are grounded. DLI keeps sensors in stock or you can add your own. Under high humidity conditions, these sensors should be replaced periodically. DIN RELAY 4... - Page 12 A three pin connector is provided for ADC input. The upper pin is scaled for 0-100VDC, and the lower pin is 0-10VDC. The center pin is a ground reference bonded to the negative power input. DIN RELAY 4 Digital-Loggers.com...
- Page 13 Frequently Asked Questions, Spec Sheet Check the DIN FAQ page for answers to frequently asked questions: Digital-Loggers.com/DIN4FAQS.html Specifications for DIN Relay 4 can be found at: Digital-Loggers.com/DIN4spec.pdf Remote Control from your Application The relay can be easily controlled from your application.
-
Page 14: Limited One-Year Warranty
This relay is not designed, qualified or intended for mobile, marine, airborne, medical or aerospace use. DIGITAL LOGGERS, INC. 2695 Walsh Ave Santa Clara, CA 95051 408.330.5599 www.DinRelay.com support@digital-loggers.com © 2001-2022 DLI US and Foreign Patents Pending. Release 1.4 8/01/2022 DIN RELAY 4 Digital-Loggers.com... - Page 15 Scripting Function Download a Manual Product FAQs Auto-Ping™ Register for: • Free Tech Support • Free Upgrades 2695 Walsh Avenue, Santa Clara, CA 95051 Tel: (408) 330-5599 Digital-Loggers.com DIN RELAY 4...
