Summary of Contents for EzyFast 20JS00042901

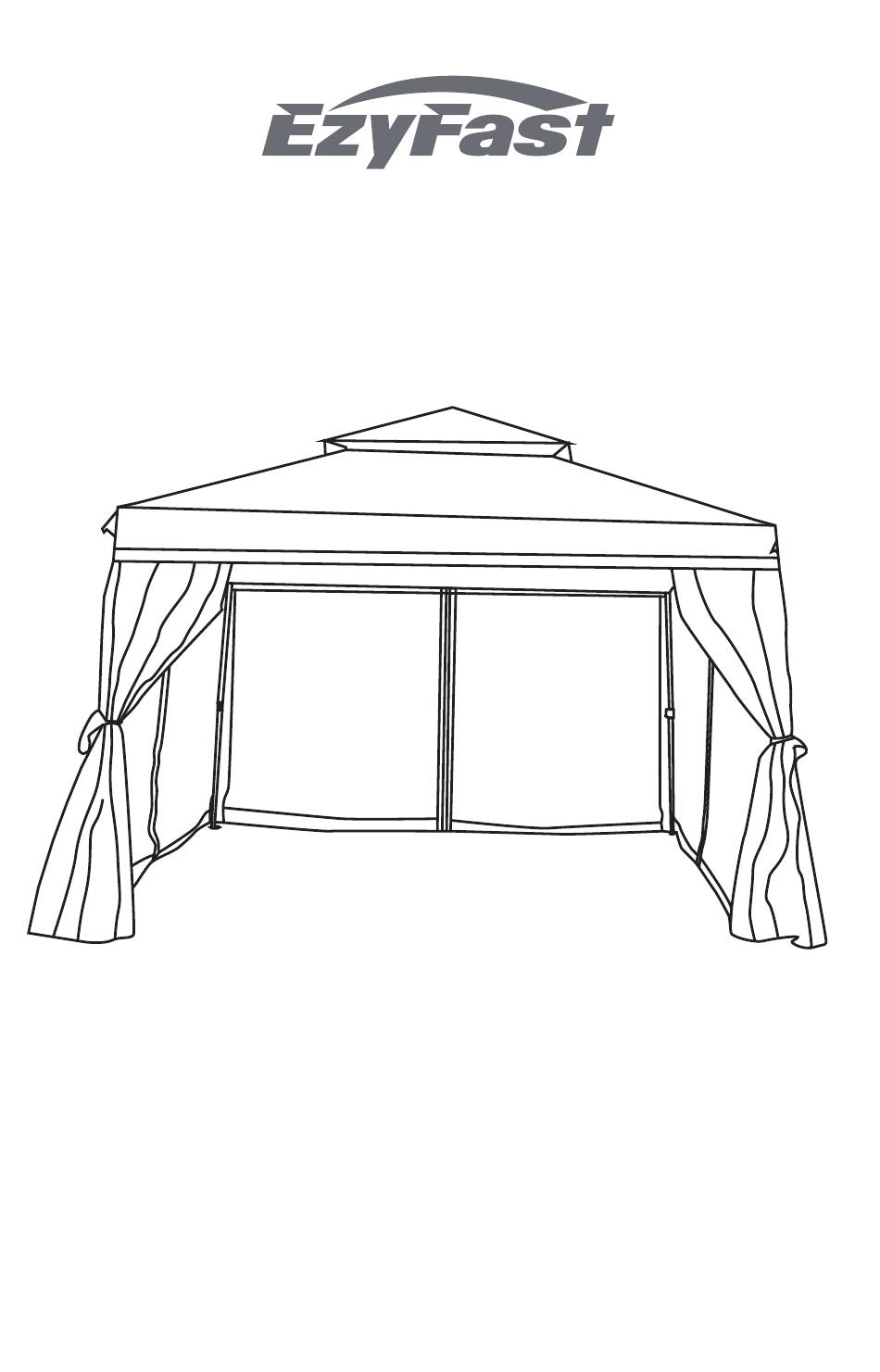

- Page 1 Instruction Manual SKU: 20JS00042901 EZYFAST GAZEBO 12'X10'...
- Page 2 WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This tent is made with fabric that meets CPAI-84 specification for flame resistance. It is not fire proof. The fabric will burn if left in continuous contact with any flame source. The application of any foreign substance to the tent fabric may render the flame-resistant properties ineffective.
- Page 3 NOTES NEVER forcefully setup or takedown. NEVER twist the frame. NEVER assume there is no-wind. NEVER leave your shelter unattended. NEVER use in prolonged raining situation. CAUTION sudden wind can blow shelter over and cause damage. CAUTION forceful operation can damage or destroy frame. CAUTION any unattended shelter can cause serious injury and or damage.
-
Page 4: Setup Instructions
SET-UP INSTRUCTIONS IMPORTANT: DO NOT USE EXCESSIVE FORCE DURING ANY PART OF SET-UP! Stand frame upright.Starting at the corners, with partner standing on the opposite side, grasp the two outer legs, slightly lift the frame off the ground and step backward, stopping at full arms’... - Page 5 Push up and engage the roof frame Extend the frame to be almost opened.One person get under the canopy roof, push the lower roof hub fully up till the central rod get into the hub. The frame is then self locked.
- Page 6 Peg down the gazebo by driving the 4 small pegs through one of the holes on the base of each foot. This will keep the legs from moving sideways in mild weather conditions. Tie up one end of each guy rope to the triangular shaped rope holder located on the outside fabric corners.
-
Page 7: Screen Assembly
SCREEN ASSEMBLY Unpack the screen kit, locate the zipper end of the screen panel, position it in the middle of two legs. Place the screen out around the frame. Match the screen up to frame. Attach the screen panels to cross tubes by hook & loop straps. - Page 8 PACK-DOWN INSTRUCTIONS IMPORTANT: DO NOT USE EXCESSIVE FORCE DURING TAKING-DOWN. PLEASE REMOVE ANCHORS AND GUY ROPES BEFORE TAKING-DOWN. Undo the hook and loop straps of the fabric top from around the roof tubes and cross beams. Failure to do so may tear the fabric during take-down.
- Page 9 With partner on the opposite side, grasp the middle section of the frame and lift up slightly. Walk forward slowly allowing the frame to fold inward and close. Be careful not to pinch fingers or hands as you close the frame. Grap the out legs and completely close the frame.
- Page 10 Email: service@ezyfast.net Code: 20JS00042901 V1. 2021...
