PERDIX Mink Raft Assembly Instructions

Parts:

1 x Mink Raft Base
2 x Tunnel Side Boards
2 x Tunnel Roof Boards
1 x Tunnel Lid

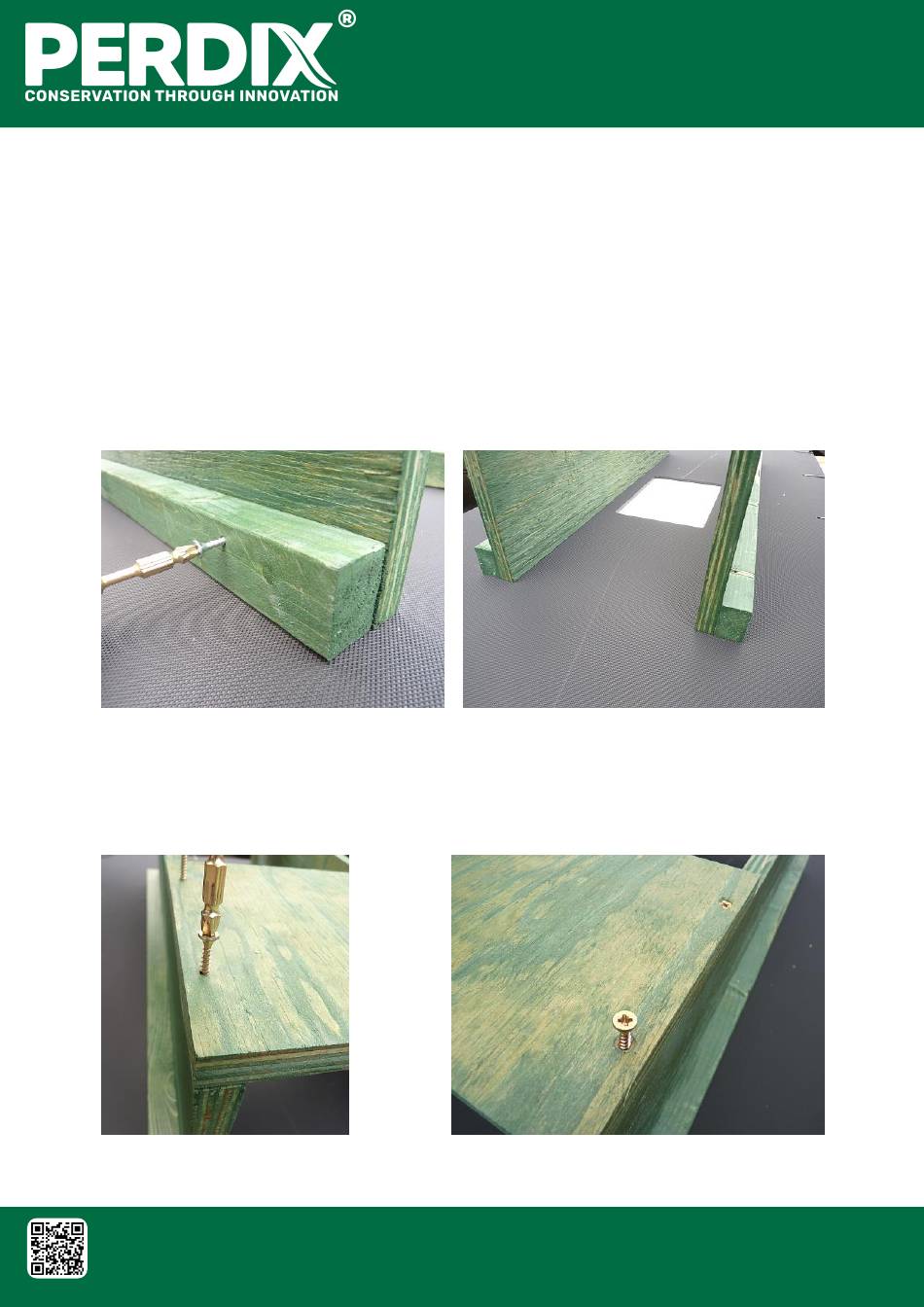

Step 1:

Using the 6 x 35mm wood screws, attach the tunnel side boards to the inside of the
wooden battens where guide holes are located.
Attach the two tunnel roof boards to the sides using the 8 x 50mm wood screws
where guide holes are located.

Step 2:

Attach the two tunnel roof boards to the sides using the 8 x 50mm wood screws
where guide holes are located.
Visit our site

Fixings:

6 x 35mm Wood Screws
8 x 50mm Wood Screws
4 x 25mm Wood Screws
4 x 20mm Wood Screws
PERDIX Wildlife Supplies. Unit 1 Hatton Rock Business Park,
Hatton Rock, Stratford-Upon-Avon, CV37 0BX. UK
Tel: +44 (0)1789 336123 www.perdixwildlifesupplies.com
Mink Raft Assembly
Instructions
5 x 16mm Wood Screws
2 x 50mm Dome Head Screws
2 x Hinge
1 x Hasp & Staple
