Inhaltsverzeichnis / Table of contents
1
Hinweise zur Montage und Bedienung / Notes for installation and operation .................................................................... 2
2
Technische Daten / Technical data .................................................................................................................................. 5
2.1
Tabelle elektrische Daten / Electrical data table ......................................................................................................... 6
2.2
Steckerbelegung / Pin assignment............................................................................................................................. 6
3
Maßzeichnung / Dimensional drawing.............................................................................................................................. 7
3.1
Maße / Dimensions .................................................................................................................................................... 7
4
Änderungshistorie / Change history ................................................................................................................................. 8
Specification V4
MLS Lanny GmbH
Beermiss 14
D-75323 Bad Wildbad

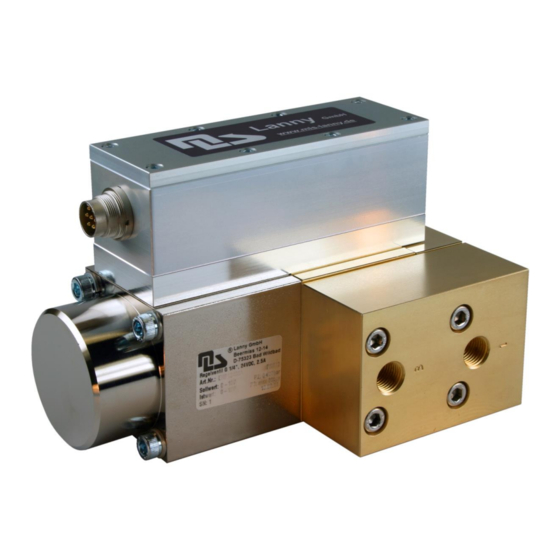

Hochdruckregelventil
High-pressure regulating valve
Analog
EHP2B350C_BK
EHP2B350C_BK
S.Korea
+82 32 727-5950
biti@bitiautomation.co.kr
www.bitiautomation.co.kr
Update:
18.12.2017
Page 1
Advertisement
Table of Contents
Summary of Contents for MLS EHP2B350C BK Series
-
Page 1: Table Of Contents
Steckerbelegung / Pin assignment..........................6 Maßzeichnung / Dimensional drawing..........................7 Maße / Dimensions ..............................7 Änderungshistorie / Change history ..........................8 Specification V4 EHP2B350C_BK Update: 18.12.2017 S.Korea +82 32 727-5950 MLS Lanny GmbH biti@bitiautomation.co.kr Beermiss 14 Page 1 www.bitiautomation.co.kr D-75323 Bad Wildbad... -
Page 2: Hinweise Zur Montage Und Bedienung / Notes For Installation And Operation
Vermeiden Sie wiederholtes Biegen der Kabel Avoid repeatedly bending or stretching the cables or damaging the valve’s housing. oder Beschädigungen am Ventilgehäuse. Specification V4 Update: 18.12.2017 EHP2B350C_BK S.Korea +82 32 727-5950 MLS Lanny GmbH biti@bitiautomation.co.kr Beermiss 14 Page 2 bitiautomation.co.kr www. D-75323 Bad Wildbad... - Page 3 Lufttrockner, Nachkühler, Wasserabscheider, an oil and water extractor. Ölabscheider ausgestattet ist. Specification V4 Update: 18.12.2017 EHP2B350C_BK S.Korea +82 32 727-5950 MLS Lanny GmbH biti@bitiautomation.co.kr Beermiss 14 Page 3 bitiautomation.co.kr www. D-75323 Bad Wildbad...
- Page 4 Design kann vom notice. Design may vary from the actual product. tatsächlichen Produkt abweichen. Specification V4 Update: 18.12.2017 EHP2B350C_BK S.Korea +82 32 727-5950 MLS Lanny GmbH biti@bitiautomation.co.kr Beermiss 14 Page 4 bitiautomation.co.kr www. D-75323 Bad Wildbad...
-
Page 5: Technische Daten / Technical Data
Temperature drift [% /10K] < 2 Langzeitdrift Long-term drift [% FS/a] < 1 Kommunikations Communication Analog -technologie technology Specification V4 Update: 18.12.2017 EHP2B350C_BK S.Korea +82 32 727-5950 MLS Lanny GmbH biti@bitiautomation.co.kr Beermiss 14 Page 5 bitiautomation.co.kr www. D-75323 Bad Wildbad... -
Page 6: Tabelle Elektrische Daten / Electrical Data Table
Istwertausgang 4 mA - 20 mA (Rl < 500 Ohm) Actual value output 4 mA - 20 mA (Rl < 500 Ohm) Pin 7 frei free Specification V4 Update: 18.12.2017 EHP2B350C_BK S.Korea +82 32 727-5950 MLS Lanny GmbH biti@bitiautomation.co.kr Beermiss 14 Page 6 itiautomation.co.kr www.b D-75323 Bad Wildbad... -
Page 7: Maßzeichnung / Dimensional Drawing
Maßzeichnung / Dimensional drawing Maße / Dimensions Eingang (G1/4) Input (G1/4) Ausgang (G1/4) Output (G1/4) Entlüftung (G1/4) Exhaust (G1/4) Specification V4 Update: 18.12.2017 EHP2B350C_BK S.Korea +82 32 727-5950 MLS Lanny GmbH biti@bitiautomation.co.kr Beermiss 14 Page 7 bitiautomation.co.kr www. D-75323 Bad Wildbad... -
Page 8: Änderungshistorie / Change History
Pressure regulating range 0-350 bar hinzugefügt added Tech Daten / Tech Betriebsmedium aktualisiert Operating medium updated 18.12.2017 data Specification V4 Update: 18.12.2017 EHP2B350C_BK S.Korea +82 32 727-5950 MLS Lanny GmbH biti@bitiautomation.co.kr Beermiss 14 Page 8 bitiautomation.co.kr www. D-75323 Bad Wildbad...
