Crystal Vision CoCo HD User Manual

Hd/sd colour corrector and legaliser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CoCo HD
HD/SD colour corrector and legaliser
Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
E-mail: sales@crystalvision.tv
Website: www.crystalvision.tv
Tel: +44(0) 1223 497049
Fax: +44(0) 1223 497059

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CoCo HD and is the answer not in the manual?

Questions and answers

Related Manuals for Crystal Vision CoCo HD

Summary of Contents for Crystal Vision CoCo HD

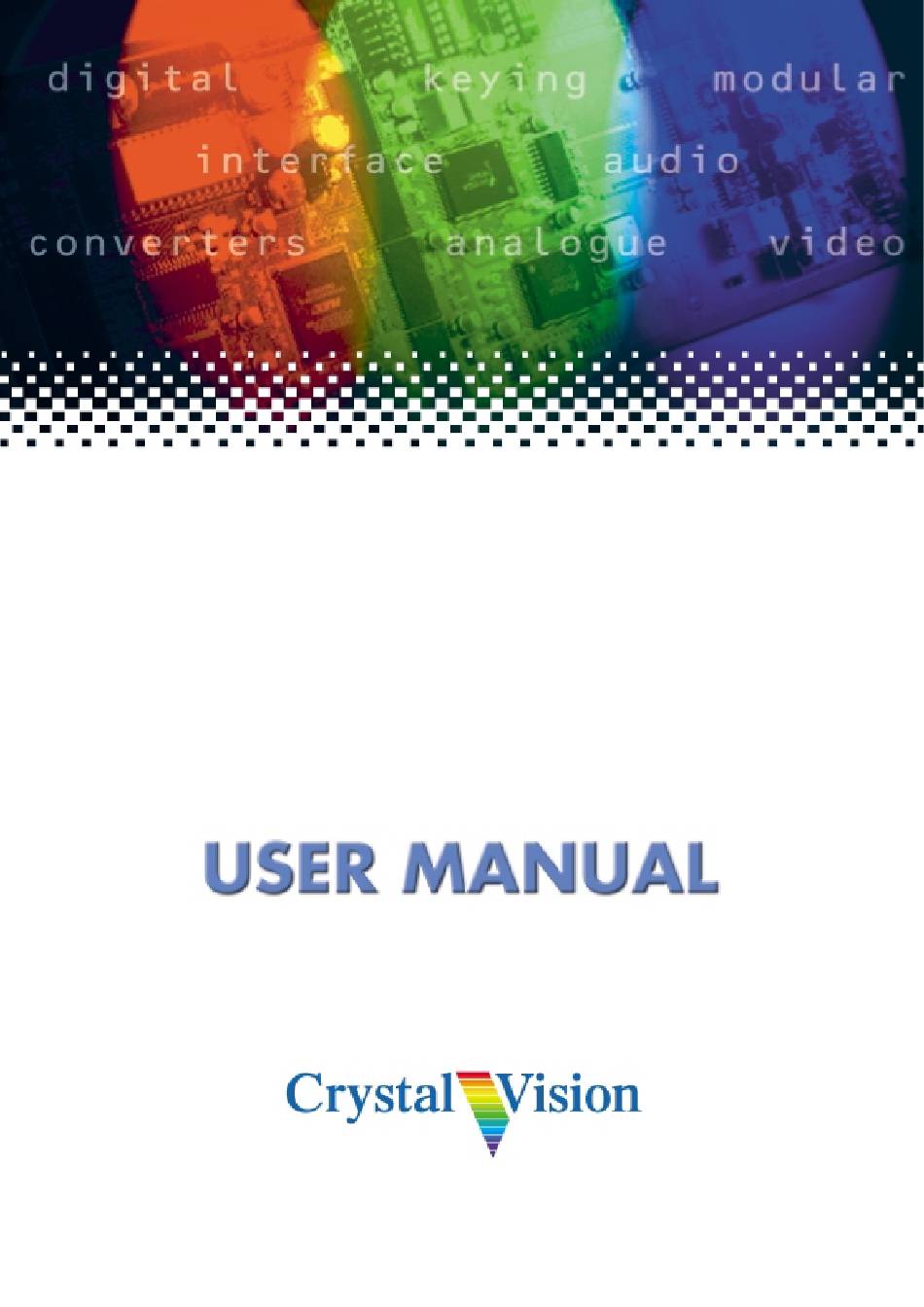

  • Page 1 CoCo HD HD/SD colour corrector and legaliser Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England. E-mail: sales@crystalvision.tv Website: www.crystalvision.tv Tel: +44(0) 1223 497049 Fax: +44(0) 1223 497059...

  • Page 2: Table Of Contents

    Crystal Vision CoCo HD User Manual R1.6 Contents Introduction     Processing modes   YUV soft limiting   Transient Tolerance   Black cleanup   Hardware installation     Rear modules and signal I/O   CoCo HD configuration   Using module GPIs  ...
  • Page 3   The CoCo HD Controller panel     Installing the Controller   Controller to frame remote wiring   Using the CoCo HD Controller for the first time   Controller operation   Selecting a CoCo HD board to control   24/06/2011...
  • Page 4   Specification     Revision 1. PL3-6 information amended, page 7-8 18/06/08 Revision 2. CoCo HD controller information added. 02/09/08 Revision 3. Sentence regarding remote fader removed. Page 9 12/03/09 Revision 4. RM51 information added. 11/06/09 Revision 5. Amendment to PL information. Page 46.

  • Page 5: Introduction

    Crystal Vision Introduction 1 Introduction CoCo HD is a 10 bit High Definition/Standard Definition digital colour corrector and legaliser, which allows independent digital image adjustments in YUV and RGB domains, essential for maintaining colour fidelity. CoCo HD passes all ancillary data, including embedded audio, transparently.

  • Page 6: Processing Modes

    CoCo HD is an excellent legaliser too. It has advanced correction for gamut errors, that will change any YUV colours that are illegal in RGB to be valid in RGB. CoCo HD legalises by reducing the colour saturation without changing the hue, processing the RGB components on each pixel at the same time and achieving a legal and natural-looking picture.

  • Page 7: Yuv Soft Limiting

    These transients can produce “overshoots” outside of the legal gamut range which can result in RGB errors being flagged downstream of the CoCo HD. Legalising these overshoots using a hard clip range may result in over clipping the video content.

  • Page 8: Black Cleanup

    Introduction Black cleanup A useful feature of the CoCo HD is its black cleanup control. The black cleanup works by returning any video Luma content that falls below a previously set threshold level to black. Sub black information is passed unaffected.

  • Page 9: Hardware Installation

    Crystal Vision rack frames. All modules can be plugged in and removed while the frame is powered without damage. CoCo HD is a 100mm x 266mm module, which fits in all of the standard frames and can be integrated with any board from the company’s full product range.

  • Page 10: Coco Hd Configuration

    RJ45 CoCo HD configuration The jumper links on the board are set correctly when CoCo HD is tested before despatch and should be left as set at the factory. The following information is for jumper position confirmation only. CoCo HD showing default factory jumpers CoCo HD User Manual R1.6...

  • Page 11: Using Module Gpis

    Jumpers PL 3, 4, 5 and 6 should be left in the RIGHT hand GPI position to enable Note: normal GPI operation and in the LEFT hand position to enable RS485 comms for a CoCo Controller. CoCo HD User Manual R1.6 24/06/2011...

  • Page 12: Gpi Connections

    2 and +5V @500mA is pin 1 in each case. Remote 2 and remote 4 are 26-way high density D-Type male plugs and frame ground is pin 6 and +5V @500mA is pin 15 in each case. CoCo HD User Manual R1.6 24/06/2011...
  • Page 13 Remote 1: 26-way high density D-Type socket. Frame ground is pin 2 and +5V @500mA is Note: pin 1. Remote 2: 26-way high density D-Type plug. Frame ground is pin 6 and +5V @500mA is pin 15. CoCo HD User Manual R1.6 24/06/2011...

  • Page 14: Setting Node Addresses

    The two ranges are provided to allow one control panel to control two frames. Set the front panel selector switch to lower for range 0-11 and upper for range 16-27 The lower and upper node range equates to lower slots 1.01-1.12 and upper slots 2.01-2.12 Note: CoCo HD User Manual R1.6 24/06/2011...

  • Page 15: Card Edge Operation

    Rotate SCROLL to identify a menu category. In combination with the ENTER button SCROLL select and ADJUST to change the current level or select a further option. /ADJUST The rotary control can access menus and parameter values by clockwise or anti-clockwise Notes: rotation. CoCo HD User Manual R1.6 24/06/2011...

  • Page 16: Reading Card Edge Leds

    Push ‘ENTER’ to action the change. The display will cease flashing  Use the up-arrow [ ] and SCROLL control to navigate to further menus The displayed menu brightness will flash slowly if confirmation of a change is required. Note: CoCo HD User Manual R1.6 24/06/2011...

  • Page 17: Card Edge Configuration

    Card edge operation Card edge configuration Menu tree To reach the top menu push the [ ] button repeatedly until a top menu is reached. Rotate the Tip: SCROLL control anti-clockwise until the STATUS menu appears. CoCo HD User Manual R1.6 24/06/2011...

  • Page 18: Status Menu

    Press ENTER and rotate Scroll/Adj. to make a new adjustment. Press ENTER to select.  10%. Rotate the Scroll/Adj. control to show the transient tolerance control. Press ENTER and rotate Scroll/Adj. to make a new selection. Press ENTER to select. Off, Mid, Max. CoCo HD User Manual R1.6 24/06/2011...

  • Page 19: Rgb Levels Menu

    Press ENTER and rotate Scroll/Adj. to vary. Press  to fix change. 90-110%. Rotate the Scroll/Adj. control to show the B lift adjustment. Blue component lift Press ENTER and rotate Scroll/Adj. to vary.  Press  to fix. 0 10%. CoCo HD User Manual R1.6 24/06/2011...

  • Page 20: Yuv Threshold Menu

    Press ENTER and rotate Scroll/Adj. to select. Press  to fix. Hard, Medium, soft. Rotate the Scroll/Adj. control to show the Black cleanup adjustment. Black cleanup Press ENTER and rotate Scroll/Adj. to vary.  Press  to fix. 0 10%. CoCo HD User Manual R1.6 24/06/2011...

  • Page 21: Yuv Levels Menu

    Press ENTER and rotate Scroll/Adj. to vary. Press  to fix change. 0-200%. Rotate the Scroll/Adj. control to show the V lift adjustment. V component lift Press ENTER and rotate Scroll/Adj. to vary.  Press  to fix. 0 10%. CoCo HD User Manual R1.6 24/06/2011...

  • Page 22: Chroma Levels Menu

    Press ENTER and rotate Scroll/Adj. to vary. Press  to fix change. 0.50-2.00%. Rotate the Scroll/Adj. control to show the B gamma adjustment. Blue gamma control Press ENTER and rotate Scroll/Adj. to vary. Press  to fix change. 0.50-2.00%. CoCo HD User Manual R1.6 24/06/2011...

  • Page 23: Crop Controls Menu

    Press ENTER and rotate Scroll/Adj. to vary. Press  to fix change. 0-1920 pixels. Rotate the Scroll/Adj. control to show the vertical wipe control. Vertical wipe Press ENTER and rotate Scroll/Adj. to vary. Press  to fix change. 0-1080 lines. CoCo HD User Manual R1.6 24/06/2011...

  • Page 24: Presets Menu

    Press ENTER to arm. Press ENTER to action. Factory Reset All gains, levels etc will be set to their factory default with stored presets erased. Factory reset will erase all user stored presets. Note: CoCo HD User Manual R1.6 24/06/2011...
  • Page 25 YUV lifts and gains 0 and 100 as appropriate Video and Chroma levels Gamma controls 0 and Off Crop and wipe Set to Preset 1 and all contents erased Presets Not enabled Enable GPI Preset Recall CoCo HD User Manual R1.6 24/06/2011...

  • Page 26: Using The Active Front Panel

    4 Using the active front panel This operational guide assumes that the panel has been setup according to the Panel setup procedure described in the Crystal Vision control panels manual. It is ESSENTIAL that the panel setup procedure is followed and any old or unknown Note: passwords cleared prior to using the panel for the first time.

  • Page 27: Updating The Display

    Crystal Vision Using the active front panel Please refer to the Crystal Vision Control Panel manual for details of the Panel Setup, Lock Panel and Note: Diagnostic menus. Selecting CoCo HD To select a particular card in a frame, press the DEVICE key to go to the Device menu.

  • Page 28: The Coco Hd Active Panel Menu Structure

    From the home menu further selections can be made. Active function keys are indicated by illuminated, integrated LEDs. The main top-level menus for the CoCo HD are obtained by pressing the F1-F4 keys from the HOME menu. Menu keys are illuminated when active and when further menus are available.
  • Page 29 Crystal Vision Using the active front panel The CoCo HD menu tree CoCo HD User Manual R1.6 24/06/2011...

  • Page 30: The Status Menu

    Luminance (Y), and the Pb (U) and Pr (V) colour difference components of the incoming SDI signal. The Chroma menu provides access to the video, chrominance and hue adjustment controls. CoCo HD User Manual R1.6 24/06/2011...
  • Page 31 Press F2 to select and rotate the shaft control to set the level. gain 0-200%. Rotate the shaft control to view the RGB blue lift. Blue component lift Press F2 to select and rotate the shaft control to set the level.  10%. CoCo HD User Manual R1.6 24/06/2011...
  • Page 32 Press F2 to select and rotate the shaft control to set the level. 0-200%. Rotate the shaft control to view the V lift. V component lift Press F2 to select and rotate the shaft control to set the level.  10%. CoCo HD User Manual R1.6 24/06/2011...

  • Page 33: Miscellaneous Controls Menu

    Press F2 to select and rotate the shaft control to set the level. 0.5-2.0. Rotate the shaft control to view the blue gamma correction. Blue gamma Press F2 to select and rotate the shaft control to set the level. 0.5-2.0. CoCo HD User Manual R1.6 24/06/2011...
  • Page 34 Press F2 to select and rotate the shaft control to set the position. position 0-1920 samples. Rotate the shaft control to view the vertical wipe control. Vertical wipe Press F2 to select and rotate the shaft control to set the level. position 0-1080 lines. CoCo HD User Manual R1.6 24/06/2011...
  • Page 35 YUV lifts and gains 0 and 100 as appropriate Video and Chroma levels Gamma controls 0 and Off Crop and wipe Set to Preset 1 and all contents erased Presets Not enabled Enable GPI Preset Recall CoCo HD User Manual R1.6 24/06/2011...

  • Page 36: Preset Menu

    Selecting Enable allows the recall of previously saved user Enable GPI control configurations via GPI inputs 0-3. of presets To enable GPI control press F2 rotate the shaft control to toggle between On and Off. Press ENTER to select. CoCo HD User Manual R1.6 24/06/2011...

  • Page 37: Statesman

    Statesman 5 Statesman The Crystal Vision Statesman PC control software is designed to control a range of Crystal Vision modules via serial control from a PC. Statesman provides a user friendly means of configuring and operating Crystal Vision modules with the benefit of “see-at-a- glance”...

  • Page 38: Status

    The RGB clips and gain menu provides access to RGB threshold Hi and Lo controls along with the RGB lift and gain controls. The controls can be moved by both clicking and dragging the slider bars or by over typing the numerical values. CoCo HD User Manual R1.6 24/06/2011...

  • Page 39: Yuv Clip Controls

    The YUV clips and gain menu provides access to YUV threshold Hi and Lo controls along with UV (C) threshold and black cleanup. The controls can be moved by both clicking and dragging the slider bars or by over typing the numerical values. YUV clips and threshold window CoCo HD User Manual R1.6 24/06/2011...

  • Page 40: Yuv Lift And Gain

    The video and Chroma levels menu provides access to the video and Chroma gain, brightness and hue controls. The controls can be moved by both clicking and dragging the slider bars/rotary control or by over typing the numerical values. Video and Chroma levels window CoCo HD User Manual R1.6 24/06/2011...

  • Page 41: Gamma Correction

    The crop and wipe menu provides access to the four axis crop controls and the horizontal/vertical wipe controls. The controls can be moved by both clicking and dragging the slider bars or by over typing the numerical values. Wipe enable can also be selected. Crop and wipe window CoCo HD User Manual R1.6 24/06/2011...

  • Page 42: Presets And Engineering

    GPI operation. Check ‘Enable GPI Preset Recall’ when finished if required. Other interfaces such as the CoCo Controller or an active control panel may also interfere Note: with saving or recalling presets. CoCo HD User Manual R1.6 24/06/2011...

  • Page 43: Recalling Factory Default Values

    Video and Chroma levels Gamma controls 0 and Off Crop and wipe Set to Preset 1 and all contents erased Presets Not enabled Enable GPI Preset Recall Factory reset will erase all user stored presets. Note: CoCo HD User Manual R1.6 24/06/2011...

  • Page 44: The Coco Hd Controller Panel

    The CoCo Controller panel Installing the Controller The CoCo HD has a number of external control lines that can be configured for GPI or RS485 control. These control lines MUST be configured for RS485 to enable Controller communication as explained in Chapter 2. It is NOT possible to retain GPI preset control when the controller panel is enabled.

  • Page 45: Controller To Frame Remote Wiring

    The appropriate remote connector(s) should be connected to the 422 Bus connector at the rear of the panel using an adapter as explained in the next section. The second serial port on CoCo HD is used for Controller communications allowing front Note: panel and Statesman control at the same time as Controller access.
  • Page 46 Crystal Vision The CoCo HD Controller panel Indigo 4U frame Remote 3 RJ45 Slot 3 Slot 4 Slot 7 Slot 8 Slot 11 Slot 12 Pin 8 Pin 7 Pin 5 Pin 4 Pin 3 Pin 10 Pin 8 Pin 9...

  • Page 47: Using The Coco Hd Controller For The First Time

    RS422 cabling. For the panel to work jumper links PL3-PL6 need to be fitted towards the rear of the CoCo HD board as explained in section 6.5 This will disable GPI preset control for the CoCo HD module.
  • Page 48 The available CoCo HDs that have responded are shown on the lower line of the display together with their slot numbers in the connected frame. If necessary press the DEVICE key to display more CoCo HD boards (up to 12). Use the function key below the desired CoCo HD board to establish control.
  • Page 49 CAL button. When active, their associated LED will be lit. For example, if the YUV GAIN button is pressed the following menu is displayed: CoCo HD Controller panel – YUV GAIN display menu In the example above, the programmable rotary control is assigned to control Y gain as indicated by the fact that ‘Y’...
  • Page 50 The following buttons are associated with panel menus and more advanced functions: CoCo HD Controller panel – advanced control buttons Each of these functions is discussed in detail in the controller operation section. Using the split-screen (wipe) preview The two AUX outputs are provided with the facility to perform a ‘before/after’...
  • Page 51 To turn the wipe off press F1 again, Wipe off will be displayed and the AUX outputs will return to displaying only the CoCo HD output. This menu also contains the bypass control. Pressing F3 will toggle between the processed output, and bypass (output = input).

  • Page 52: Controller Operation

    The clipboard copy/paste function is provided to allow an easy way of transferring the settings of one CoCo HD board to another. Clipboard memory is in the Controller, unlike preset memories, which are held in the CoCo HD boards themselves.

  • Page 53: Changing Yuv Gains

    Crystal Vision The CoCo HD Controller panel Changing the device name By default, the device names are of the form CoCo1 – CoCo12. To apply a custom name press the menu key twice and choose Label Device (F3). Then select the name to change.

  • Page 54: Changing Rgb Pedestal

    Crystal Vision The CoCo HD Controller panel Changing RGB pedestal Press the RGB PED button to display the component gains menu: RGB Pedestal CoCo2 Press F1 to let the assignable shaft encoder control R lift Press F2 to let the assignable shaft encoder control G lift...

  • Page 55: Saving Presets

    Crystal Vision The CoCo HD Controller panel Saving presets Press the SAVE button to display the save preset memory menu: Save for more CoCo2 Mem0 mem1 mem2 mem3 Press the SAVE button to gain access to all 16 memory locations (0 to F) Press appropriate function button to save the current CoCo’s settings...
  • Page 56 Crystal Vision The CoCo HD Controller panel The LEGAL button provides access to the following functions: Adjust RGB and/or YUV clipping Clip Menu RGB clipping Press F1 display the Hi/Lo clipping menu: Press F1 to let the assignable shaft encoder control the upper clip threshold...

  • Page 57: Set Wipe/Bypass Options

    Crystal Vision The CoCo HD Controller panel Changing C (U&V) slope and limits options Thresh Slope Medium Press F1 to let the assignable shaft encoder control the C clip threshold Press F2 to let the assignable shaft encoder control the C clip slope The text of the selected function name will be capitalised, press CAL to return the selected variable to its default value.

  • Page 58: The Coco Controller-48V

    CoCo Controller-48V panel Installing the CoCo Controller-48V CoCo HD has a number of external control lines that can be configured for GPI or RS485 control. These control lines MUST be configured for RS485 to enable CoCo Controller- 48V communication as explained in section 6.5. It is NOT possible to retain GPI control when the controller panel is enabled.

  • Page 59: Connecting Supply Cables

    The fuse holder is part of the PSU module. Replace the fuse only with one of the same Note: type and rating. Refer to the maintenance section of the trouble shooting guide for more information. CoCo Controller-48V panel supply connector view CoCo HD User Manual R1.6 24/06/2011...

  • Page 60: Trouble Shooting

    Crystal Vision Trouble shooting 8 Trouble shooting Once the start-up initialisation procedure is complete, CoCo HD can be controlled or configured from the active control panel, the Statesman PC interface or from the card edge. The front edge of the card provides status LEDs for serial control, input presence, GPI status of RGB/YUV clip indication.
  • Page 61 NOTE: The absence of a lit Clip Active indicator does not necessarily mean that clipping has not been enabled, only that it is either not enabled or not active (video excursions inside current clip settings). CoCo HD User Manual R1.6 24/06/2011...

  • Page 62: Specification

    Ethernet with Ethernet ready frames GPI Inputs Type Memory recall Active Connect to ground Inactive High impedance, or 5 volts Input current Input current <50μA GPI Outputs Type YUV clip status / RGB clip status CoCo HD User Manual R1.6 24/06/2011...
