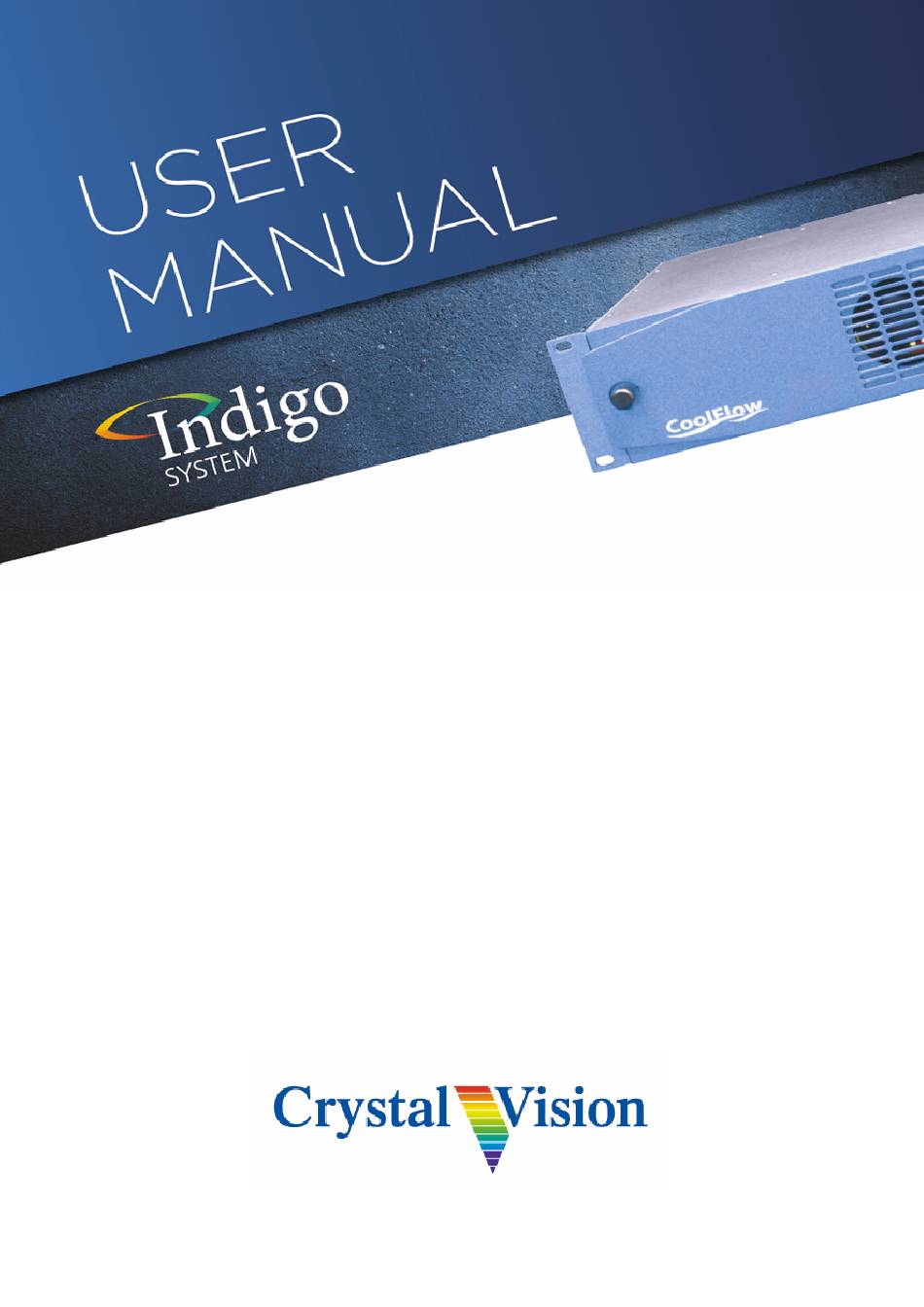

- Page 1 FTX-L 3G Dual channel 3Gb/s, HD or SD to fibre optic transmitter Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England. Tel: +44(0) 1223 497049 Fax: +44(0) 1223 497059 sales@crystalvision.tv www.crystalvision.tv...
-
Page 2: Table Of Contents
Crystal Vision FTX-L 3G User Manual Contents Introduction FTX-L 3G Hardware installation Handling Assigning Input loop-throughs Universal rear connectors Loading restrictions Rear module connections with RM55 General purpose interface GPI Connections 2U frame GPI Connections 1U frame GPI connections Indigo DT desk top box GPI connections... - Page 3 Although Crystal Vision optical products contain class 1 devices that have been designed to be safe under all circumstances, you are advised not to look directly into any vacant optical outlet.
-
Page 4: Introduction
The FTX-L 3G is from the range of Crystal Vision optical boards which have been designed to fit in the Crystal Vision range of 2U and 1U frames issue 2 and above, as well as the issue 2 desk top box. The board may be plugged into any of the PCB slots, the only exception being where it needs to be placed below a Standard Definition board. -
Page 5: Ftx-L 3G
Crystal Vision Introduction The Indigo frames have been designed to accept any selection of boards from Crystal Vision's range of Standard Definition, High Definition, 3G audio, video and optical products. The high packing density allows up to six modules in 1U, up to 12 modules in 2U, and up to two modules in the desk top box. - Page 6 Crystal Vision Introduction The FTX-L 3G is primarily designed to work with single-mode optical cable and can achieve distances in excess of 10km depending on cable quality and number of connectors and splices (see Fibre distance calculations guide ). The FTX-L 3G may also work with multi- mode optical cable in some circumstances and distances of approximately 1km have been achieved with a Standard Definition video input.
-
Page 7: Hardware Installation
Hardware installation 2 Hardware installation The Crystal Vision optical boards have been designed to work in conjunction with the 2U CoolFlow frames, or Indigo 1 and 2 frames of issue 2 or higher, and the issue 2 desk top box. -
Page 8: Assigning Input Loop-Throughs
Crystal Vision Hardware installation RM55 rear module with dust caps fitted to both sides of the optical connector Assigning Input loop-throughs A useful feature of the FTX-L 3G is that the loop-through outputs are configurable using the link PL2. The choices are: •... -
Page 9: Universal Rear Connectors
The FTX-L 3G can be loaded into any compatible frame’s slot but due to the extra height of the FTX-L 3G module it is not possible to place cards from the Crystal Vision Standard Definition or audio range directly above in certain positions. High Definition boards do not share this restriction and can be placed in any slot position. -
Page 10: General Purpose Interface
Crystal Vision Hardware installation I/O assignment OPTICAL OUTPUT 2 Optical serial digital video output 2 OPTICAL OUTPUT 1 Optical serial digital video output 1 SDI IN1 Channel 1 3G/HD/SD serial digital input SDI LOOP1 Channel 1 loop-though output SDI LOOP2/1 Either Channel 2 or Channel 1 loop-though output depending on PL2 setting. -
Page 11: Frame Gpi Connections
Crystal Vision Hardware installation 2U frame GPI Connections GPI lines ‘a’ to ‘f’ of each card connect to two of four rear remote connectors as follows: Slot ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin 8 (1) -
Page 12: Indigo Dt Desk Top Box Gpi Connections
Crystal Vision Hardware installation Indigo DT desk top box GPI connections GPI lines ‘a’ to ‘f’ of each card connect to the rear remote connector as follows: Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin... -
Page 13: Card Edge Operation
Crystal Vision Card edge operation 3 Card edge operation Card edge controls and indicators The front edge of the FTX-L 3G card provides power rail monitoring and status. colour Meaning when lit PSU Ok All PSU voltages are within range. -
Page 14: Control And Status Monitoring
Crystal Vision Control and status monitoring 4 Control and status monitoring 4.1 Using the front control panel On power up, the LEDs of all eight control panel keys will illuminate briefly. Once the panel has completed its power up and configuration sequence the panel will enter its status mode and display the current software version and frame IP address. -
Page 15: Control Panel Keys Overview
Crystal Vision Control and status monitoring The FTX-L 3G home menu Rotate the shaft control to scroll through the menu structure and press ENTER to select the sub-menus. Press HOME at any time to return to the home menu. FTX-L 3G Status sub-menu Press ENTER to select the Video Status menu or SCROLL to display other sub-menus. -
Page 16: Menu Structure
Level Warning 4.2 Controlling cards via VisionWeb Crystal Vision cards use an XML file to create a control database that is used by the the Indigo frame front panel controller, VisionPanel and VisionWeb software. VisionWeb PC software offers a full range of controls with slider controls etc. - Page 17 Crystal Vision Control and status monitoring FTX-L 3G Status Page FTX-L 3G User Manual R1.2 19 May 2017...
-
Page 18: Control Descriptions
Crystal Vision Control Descriptions 5 Control Descriptions The controls of FTX-L 3G are accessible from the front panel, VisionWeb software, VisionPanel remote panels or SNMP. The description of controls used in this manual is based on VisionWeb GUI screen grabs but the path to locate controls via the front panel follows the same logic. -
Page 19: Troubleshooting
Crystal Vision Troubleshooting 6 Troubleshooting Simple troubleshooting can be performed by using either the card edge or a remote status panel display. 6.1 Card edge status LEDs Board edge LEDs provide status reporting and may be useful when fault finding. -
Page 20: Basic Fault Finding Guide
Crystal Vision Troubleshooting Switch Label Down HD SD HD slew rate SD slew rate Dis 1 Laser shutdown is under auto The Channel 1 laser is manually control shutdown preventing light emission. Dis 2 Laser shutdown is under auto The Channel 2 laser is manually control shutdown preventing light emission. -
Page 21: Specification
Crystal Vision Specification 7 Specification General Dimensions 100mm x 266mm module with DIN 41612 connector Weight 200g Power consumption Inputs Video HD or SD SDI 270Mb/s to 2.97Gb/s serial compliant to SMPTE 259 or ASI data, SMPTE 292-1 and SMPTE... - Page 22 Crystal Vision Specification Ch1 1431 Ch2 1451nm. Ch1 1471 Ch2 1491nm. Ch1 1511 Ch2 1531nm. Ch1 1551 Ch2 1571nm. Ch1 1591 Ch2 1611nm. Ch1 1310 Ch2 1550nm. Output power: Minimum 0dBm. Maximum +5dBm. Typically, +2.5dBm (1.78mW). GPI Outputs Number and type:...
-
Page 23: Appendix
By this we mean normal or average conditions. The Crystal Vision FTX-L 3G SDI to fibre converter is quoted as having an output power of typically -2dbm but there’s a worst case figure of -5dbm and so you should use that.
