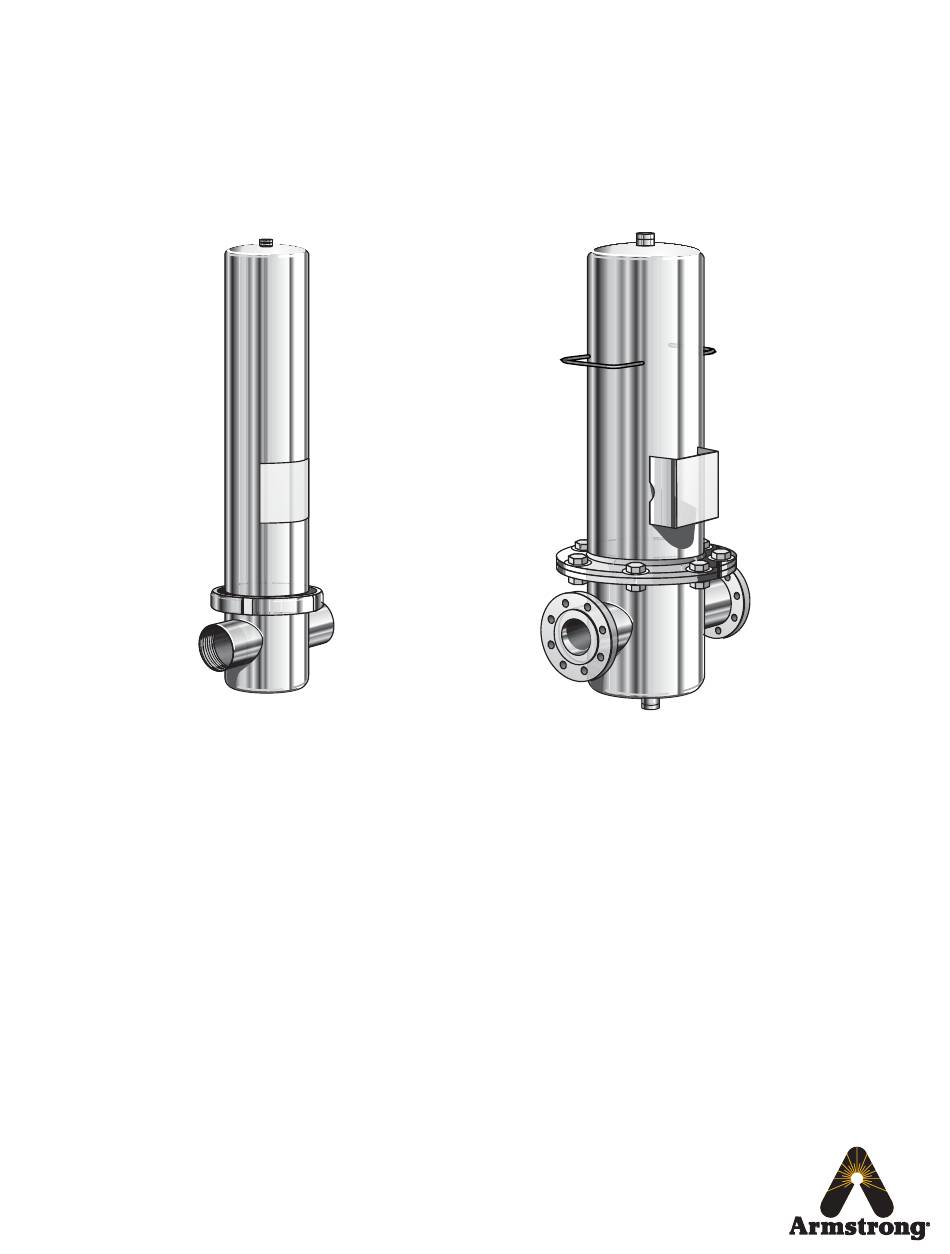

- Page 1 Armstrong ASF - Single & Multiple Operation Manual Single Multiple Please read and save these instructions IB-130...
-
Page 2: Table Of Contents
Table of Contents Explanation of the symbols Exploded views (FIG. 1 / FIG. 2) For Your Safety Start Up / Maintenance Technical Data 10-11 Limited Warranty and Remedy Designs, materials, weights and performance ratings are approximate and subject to change without notice. Visit armstronginternational.com for up-to-date information. -
Page 3: Explanation Of The Symbols
Explanation of the Symbols Direct Safety Risk Ma x. Min. / Max. Operating Temperature Min. °F °F Hot Surfaces Filter Element Dimensions Wear Eye Protection Release Pressure Max. Operating Pressure Max. Use Suitable Gloves Weight Pressure Accessories Maintenance Instructions Waste must be disposed Installation Instructions of in accordance with local regulations... -
Page 4: Exploded Views (Fig. 1 / Fig. 2)
ASF - Single ASF - Single Functional elements A Plug B Gasket C Screw locking ring D Upper housing bowl E Filter element(s) F Sealing ring G Lower housing bowl Figure 1 Designs, materials, weights and performance ratings are approximate and subject to change without notice. Visit armstronginternational.com for up-to-date information. - Page 5 ASF - Multiple ASF - Multiple Functional elements A Plug C Screw locking ring D Upper housing bowl E Filter element(s) F Sealing ring G Lower housing bowl H Hexagonal screw I Tension nut J Spring K Bracket plate L Tie rod M Gasket N Hexagonal nut O Washer...
-
Page 6: For Your Safety
For Your Safety The relevant safety at work and accident q Ensure that the pressure vessel is not subjected prevention regulations, plus the operating to vibrations that could cause fatigue fractures. instructions, shall apply for operation of the q The pressure vessel is not to be subjected pressure vessel. -
Page 7: Start Up / Maintenance
Starting up: Maintenance information: PICTURES 1 - 10 (single), page 8 PICTURES 1 - 10 (multiple), page 9 Before initial commissioning PICTURES 11 - 16 (single), page 8 q The filter elements do not come installed in the filter housing. PICTURES 11 - 17 (multiple), page 9 q All the threaded connections of the pressure q Before starting any maintenance work,... - Page 8 ASF - Single P-AK P-SRF P-FF P-GS (Single) P-MF P-BE P-SMF normal application special application 0 psi (Single) Designs, materials, weights and performance ratings are approximate and subject to change without notice. Visit armstronginternational.com for up-to-date information.
- Page 9 ASF - Multiple P-AK P-SRF P-FF P-GS (Multiple) P-MF P-BE P-SMF normal application special application 0 psi (Multiple) Designs, materials, weights and performance ratings are approximate and subject to change without notice. Visit armstronginternational.com for up-to-date information.
-
Page 10: Technical Data
Technical Data Max. Min. / Max. Filter Operating Pressure Design Element (and Temperature) Temperature Ma x. Min. °F °F Max. Qty Per psig °F Size Housing ASF-H4 1/4NPT 200 @ 392°F -60°F to 392°F 03/10 ASF-H4 3/8NPT 200 @ 392°F -60°F to 392°F 04/10 ASF-H4 1/2NPT... - Page 11 Technical Data Type Dimensions Weight* Height Width Connection Connection Clearance (B) (+0.125) Height (D) inch inch FNPT Flange 150 lb inch inch ASF-H4 1/4NPT 4.10 1/4“ ASF-H4 3/8NPT 4.25 3/8“ ASF-H4 1/2NPT 4.25 1/2“ ASF-H4 3/4NPT 10.5 4.90 3/4“ ASF-H4 1NPT 11.5 4.90 1“...
-
Page 12: Limited Warranty And Remedy
As a condition of enforcing any rights or remedies relating to Armstrong products, notice of any warranty or other claim relating to the products must be given in writing to Armstrong: (i) within 30 days of last day of the applicable warranty period, or (ii) within 30 days of the date of the manifestation of the condition or occurrence giving rise to the claim, whichever is earlier.
