A
1x
Zitting
Seat
C
1 set
Armsteun
Armrest
E
5x
Casters
Wielen
G
1x
Hoofdsteun
Headrest
1.
2.

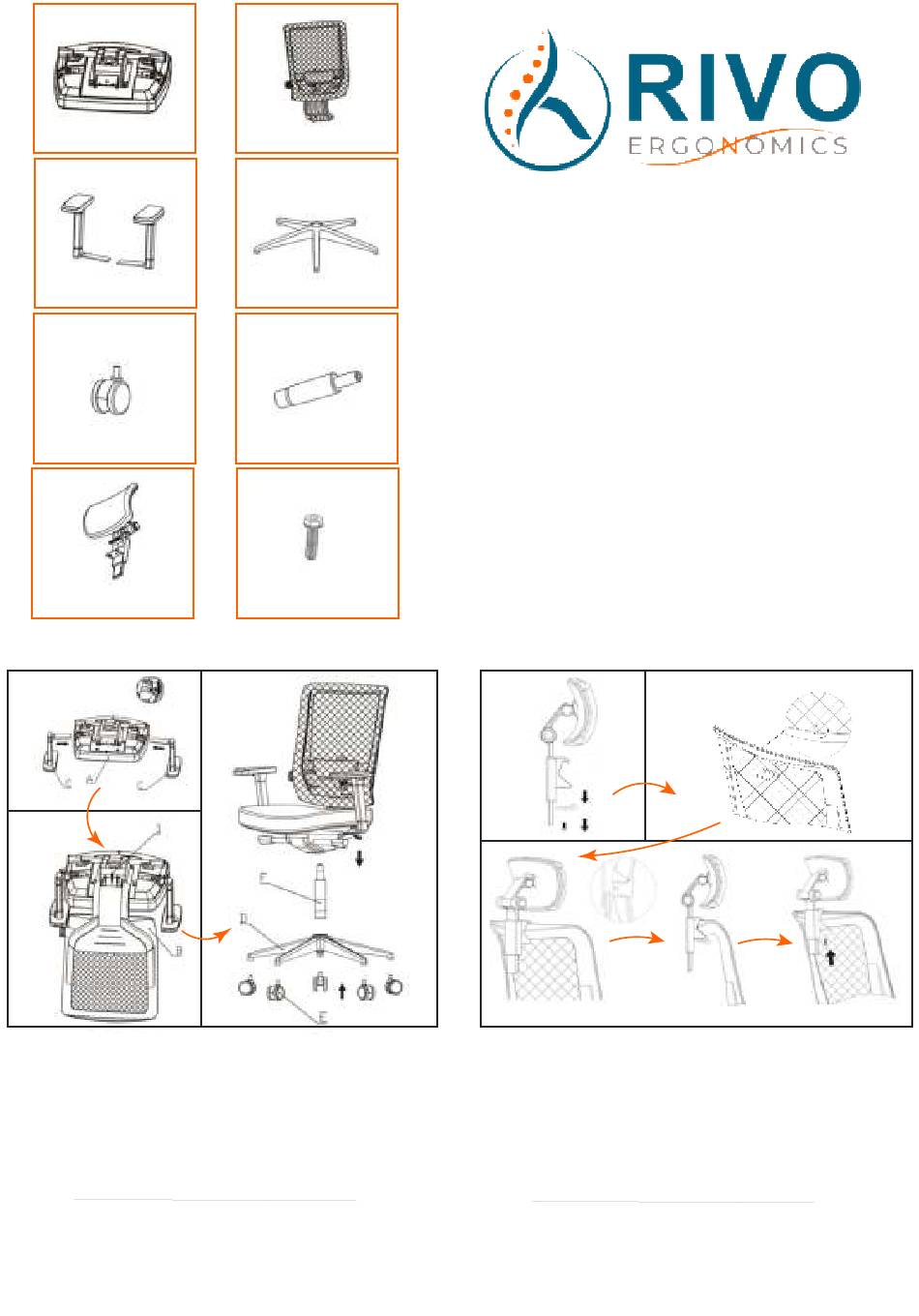

1. Leg de zitting (A) op zijn kop neer en schuif de armsteunen (C) in
de zijkant totdat deze tegen een nok aan komen. Geef nu een krachtige
tik op de armleuning om hem voorbij de nok te schuiven. Zodra de
armleuning voorbij de nok is duw je beide hendels omlaag.
2. Schuif de rugleuning (B) in de hiervoor bestemde inkeping in
de zitting en gebruik de bijgeleverde schroeven (1) om deze te
bevestigen.
3. Klik de 5 wielen (E) in de voet (D), plaats de gaslift (F) in het
midden van de voet en plaats de zitting op de gaslift.
1. Place the seat (A) upside down and slide the armrest in the seat until it stops. Push
the armrests further by using some abrupt force. Lower the handles to secure it.
2. Slide the backrest into the designated area and secure it
by using the supplied screws.
3. Click the casters into the base, place the gas lift into the designated
hole in the middle of the base and place the seat on top of the gas lift.
B
1x
Rugleuning
Backrest
D
1x
Voetbasis
Base
F
1x
Gasveer
Gaslift
3x
1
8x45
Screws
Schroeven
3.
Montage handleiding / Assembly instruction

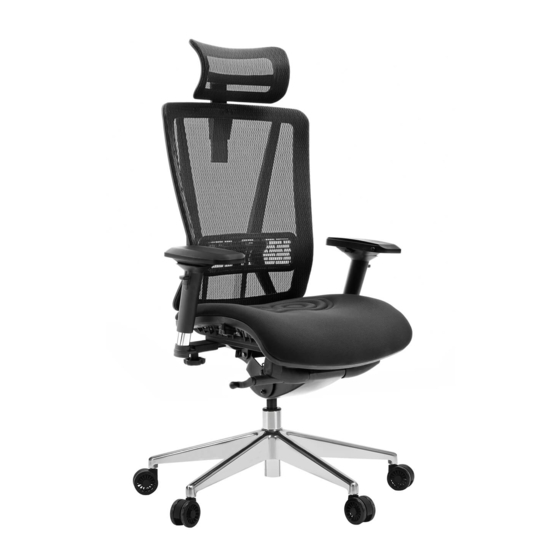

Model: Athena
Hulp nodig bij de montage? Ga naar de website
of neem contact met ons op:
Need help with the assembly? Visit our website
or contact us directly:
info@rivo-ergonomics.com
http://www.rivo-ergonomics.com
1.
3.
1. Verwijder de schroef en de clip uit de hoofdsteun.
2. Lijn het gat van de zojuist verwijderde clip uit met de inkeping
op de rugleuning.
3. Plaats de hoofdsteun.
4. Duw de clip naar boven om de hoofdsteun te bevestigen.
5. Zet de hoofdsteun vast door de schroef terug in de hoofdsteun
te draaien via het gat in de clip.
1. Remove the screw and clip from the headrest.
2. Align the hole of the clip you just removed with the designated area
of the backrest
3. Attach the headrest to the backrest
4. Push the clip up
5. Secure the headrest by placing the screw you removed earlier
into the hole of the clip and tighten it.
2.
4.
5.
