AccuTools eL-520 User Manual

Refrigerant gas leak detector
Hide thumbs

Advertisement

Quick Links

Download this manual
eL-520

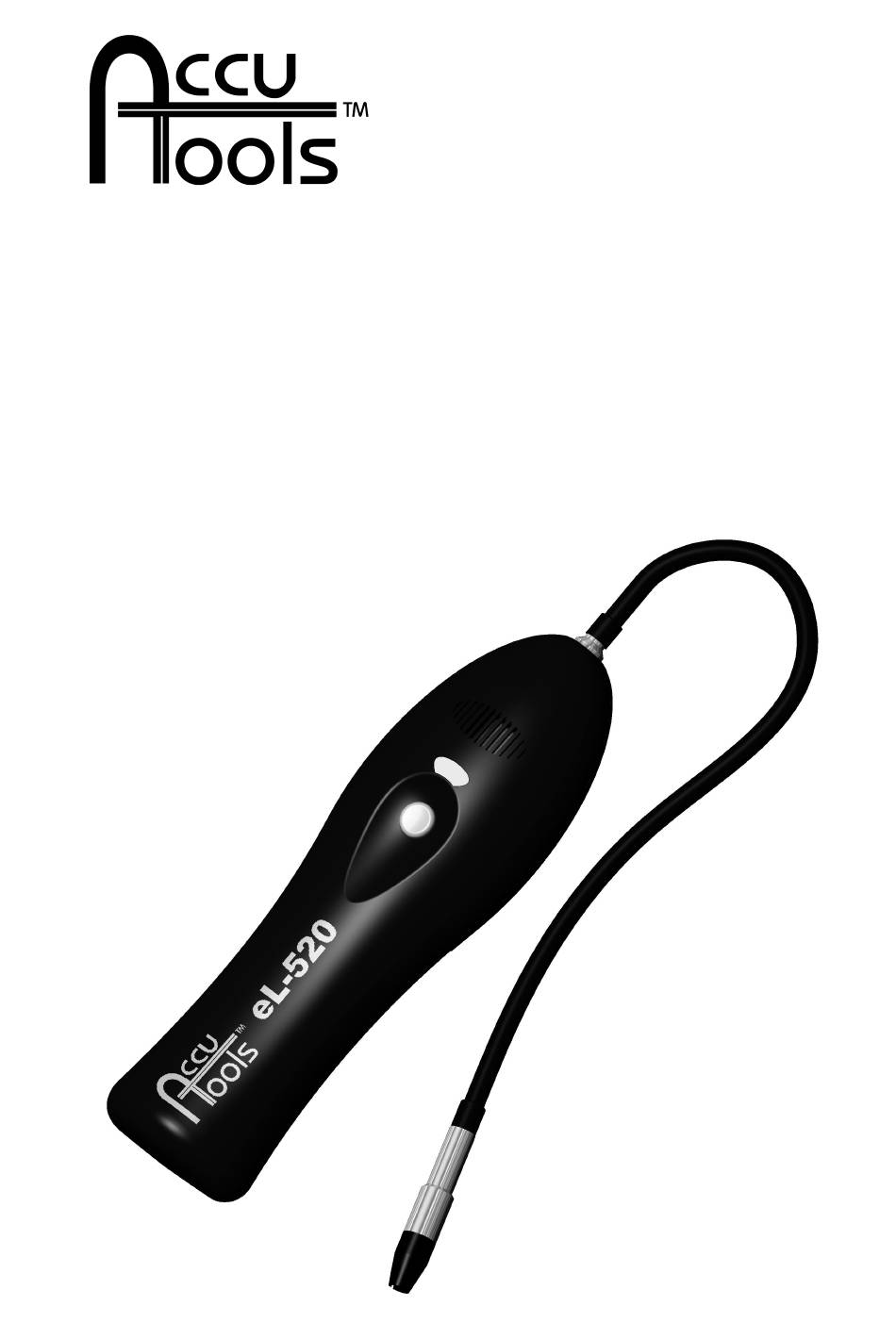

Refrigerant Gas Leak
Detector
User's Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the eL-520 and is the answer not in the manual?

Questions and answers

Related Manuals for AccuTools eL-520

Summary of Contents for AccuTools eL-520

  • Page 1 Refrigerant Gas Leak Detector User’s Guide...

  • Page 3: Technical Data

    Fully SAE J1627 compliant, the eL-520 will detect leaks as small as 0.1 oz/yr (3g/year) in R12, R22, R134a and other halogen refrigerant systems.
  • Page 4 ¼ inch (5 mm) away from the suspected source. 7. If a leak exists, the sound will increase in rate and pitch and the LED will start flashing rapidly. 8. To turn the eL-520 off, press and hold the button for 3 seconds.

  • Page 5: Battery Installation And Replacement

    If the batteries are nearly empty, the LED will turn solid red and a two-tone alarm will be noted for 5 seconds, before the eL-520 will power itself off. Ÿ If the unit is left on unattended, it will automatically turn off after about 5 minutes to conserve batteries.

  • Page 6: Sensor Replacement

    User’s Guide SENSOR An eL-520 sensor will last between 25 and 30 hours of continuous use. A failed or failing sensor will be indicated in one of the following ways: 1. Unstable or erratic operation of the unit and many false alarms, even in pure air.
  • Page 7 For the purpose of Automotive A/C Testing with respect to the SAE J1627 standard, the following leak testing procedure applies: 1. Operate the eL-520 in high sensitivity mode. 2. Leak test with the engine not in operation. 3. The air conditioning system shall be charged with sufficient refrigerant to have a gauge pressure of at least 340 kPa when not in operation.
  • Page 8 User’s Guide 7. At each area checked, the probe shall be moved around the location, at a rate no more than 25-50 mm/s and no more than 5 mm from the surface completely around the position. Slower and closer movement of the probe often helps locate the exact position of the leak.
  • Page 9 User’s Guide NOTES...
  • Page 10 User’s Guide NOTES...
  • Page 11 Purchaser. The repaired or replaced product will be returned to Purchaser, freight prepaid via UPS ground only. Repaired or replaced units carry an additional 90 days warranty. © 2005 Core Enterprises, Inc. All rights reserved. AccuTools™ is a trademark of Core Enterprises, Inc...
  • Page 12 3650 Coral Ridge Drive, Suite 101 Coral Springs, FL 33065 Ph: (954) 227-0781 • Fax: (954) 227-1094 www.accutools.com P/N 10220 Rev. A...
