Summary of Contents for CNC Design CNC MINI COIL WINDER MK5

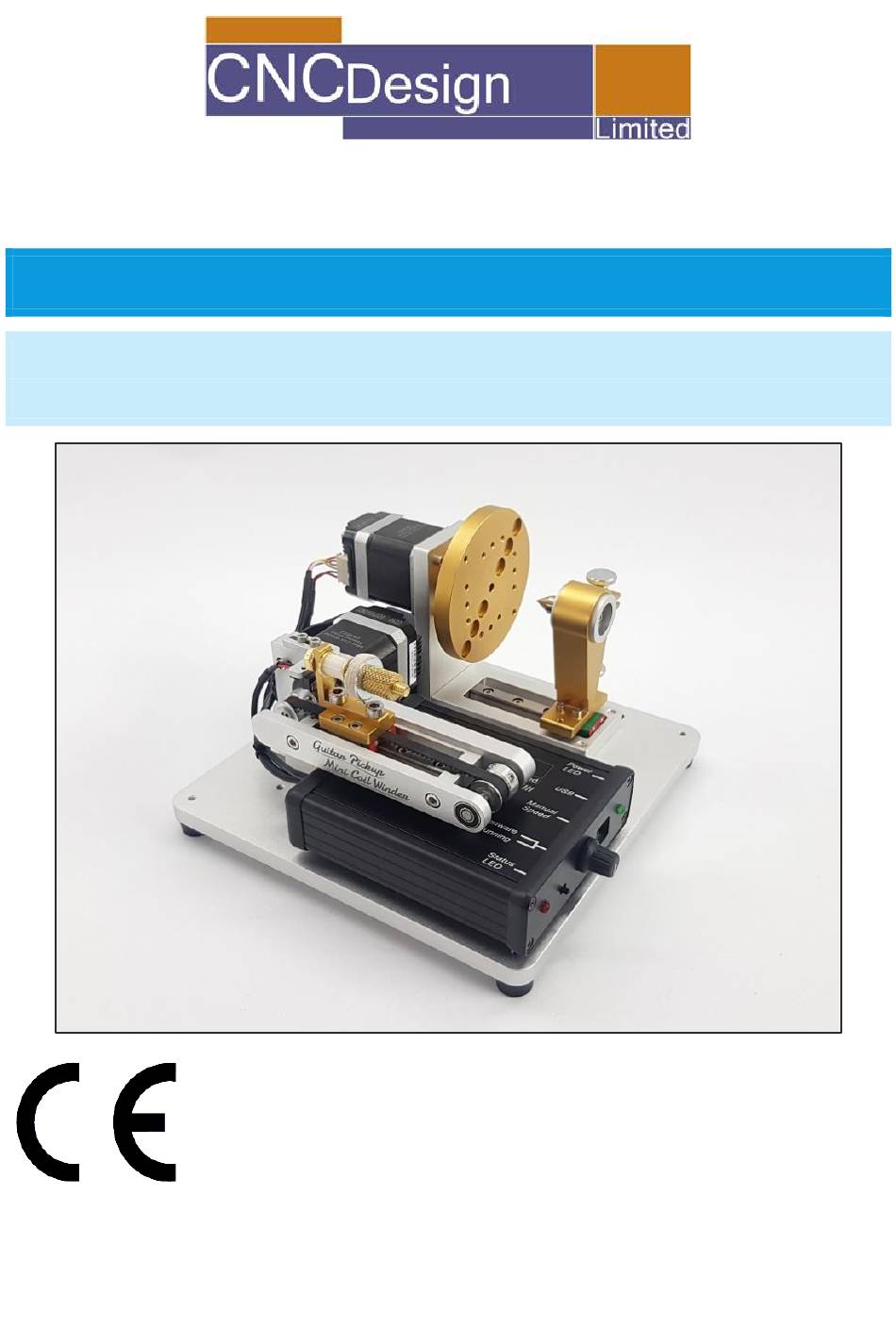

- Page 1 CNC MINI COIL WINDER MK5 INSTRUCTIONS IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS MACHINE. Version 1 – 15/09/2022...
-
Page 2: Table Of Contents
Contact details ....................13 GENERAL INFORMATION This manual has been compiled by CNC Design Ltd and is an integrated part of the product with which it is enclosed and should be kept with for future references. This manual describes the purpose for which the product has been designed and contains all the necessary information to ensure its correct and safe use. -
Page 3: Declaration Of Conformity
DECLARATION OF CONFORMITY... -
Page 4: Specification
SPECIFICATION The CNC Design Ltd policy of continuous improvement determines the right to change specification without notice. Dimensions of base plate (L x W) 210mm x 210mm Weight Maximum feeder travel 40mm Maximum Stepper motor RPM 1500 RPM (800 RPM... -
Page 5: Getting To Know Your Coil Winder
GETTING TO KNOW YOUR COIL WINDER Integrated Stepper Motors Manual Wind Control Bobbin Plate Controller Box Tailstock Limit Switch Power Supply Felt Wire Tensioner Cables... -
Page 6: Operation And Use
OPERATION AND USE The Mini Coil Winder is fitted with a controller box that has a USB socket, dial and a switch. At the back of the machine is an isolated 24v DC power box. The switch at arrow 1 determines the controller’s functional state. •... - Page 7 OPERATION AND USE Selection mode switch – Left: Running, Right: Firmware Manual Speed Controller Connection point for USB Lead Connection point for 24V DC Power Supply...
- Page 8 OPERATION AND USE The machine is pre aligned but you can adjust the feeder and bobbin to your preference by loosening off the bolts above.
- Page 9 OPERATION AND USE First, check that the controller’s selection mode is set to running. The switch should be pushed to the Left. Connect the USB lead. Then plug the USB into the computer. The Power supply comes with an inline power switch. Ensure this is turned off when connecting to the DC power box.
-
Page 10: Installing Software
INSTALLING SOFTWARE Insert the enclosed USB stick into your computer, browse to the device and run setup.exe. Proceed through the wizard. Here you can select the installation folder and choose to install this for multiple users or a single user. - Page 11 [10] INSTALLING SOFTWARE After installing the software click close. Browse to your desktop for a new shortcut as shown. Upon start-up of the software, you’ll be asked if an Estop/Limit kit is installed. Tick this checkbox and then click the mini coil winder button above...
- Page 12 [11] INSTALLING SOFTWARE Browse to Settings/Diagnostics via the top row of tabs. Then make sure the ‘Limit Switches Installed’ box is ticked. On the same page under ‘Feed Settings’ change the parameters shown on the right to those values. All finished and ready to be used with your Coil Winder.
-
Page 13: Safety Warning
[12] SAFETY WARNING Keep hands clear of moving parts during operation. Ensure the bobbin is attached securely to the plate and the tailstock is fully locked down before operating. Make sure the power is switched off before connecting the power supply to the DC power box. -
Page 14: Contact Details
©PUBLISHED BY CNC DESIGN LTD. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from CNC Design Ltd. - Page 15 [14] NOTES...
