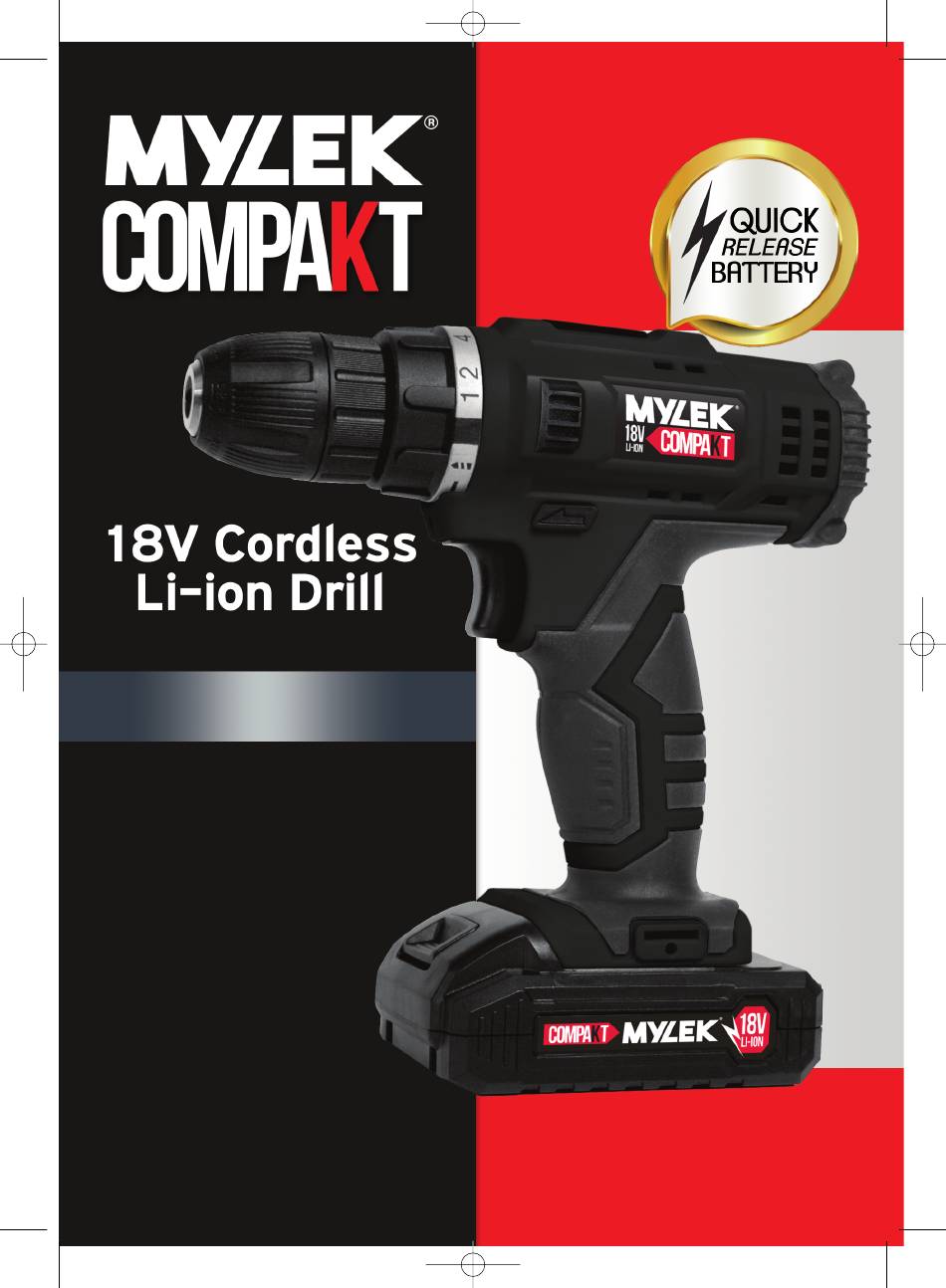

- Page 1 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 1 MYW09 User Manual - Please read and retain for future reference www.hsdonline.co.uk...
- Page 2 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 2 Introduction General Information Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data.
- Page 3 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 3 Symbols Read the manual Warning Wear ear protection Wear dust mask Indoor use only Do not expose to rain or water Do not burn www.hsdonline.co.uk...
- Page 4 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 4 General Safety Instructions WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warning listed below refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.
- Page 5 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 5 Power tool use and care 1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 6 MY90BMC_18V_Drill_Manual 23/7/20 13:04 Page 6 3. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. 4. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
- Page 7 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 7 COMPONENT LIST TECHNICAL DATA 1. 0.8-10mm chuck 2. Torque setting 3. Forward/Reverse rotation control 4. Soft grip handle 5. Battery pack release button 6. Battery pack 7. Trigger switch 8. LED sight light Not all the accessories illustrated or described are included in standard delivery.
- Page 8 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 8 CHARGER PROCEDURE Recharging the batteries To remove or install the battery pack A CHARGING THE INSTALLED BATTERY: Do not use another battery 1 Hold down the battery release charger. When the battery is empty, button. the machine is switched off by means 2 Slide the battery out.
- Page 9 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 9 OPERATING INSTRUCTIONS 1 TRIGGER SWITCH 4 CHUCK ADJUSTMENT (FIG G) Depress to start and release to stop To open the chuck jaws rotate the your drill. The trigger switch is fitted front section of the chuck. Insert the with a brake function which stops drill bit between the chuck jaws and your chuck immediately when you...
- Page 10 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 10 6 USING THE SIGHT LIGHT DISPOSAL OF AN EXHAUSTED BATTERY PACK The sight light allows you to keep a clear view under less illuminated To preserve natural resources, circumstances. To turn on the light please recycle or dispose of the simply press the trigger switch.
- Page 11 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 11 Environmental Responsibilities Meaning of crossed-out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local council for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain damaging your health and well-being.
- Page 12 MYW09_18V_Drill_Manual 12/12/19 11:58 Page 12 Hygiene Supplies Direct Ltd, Castleford, England WF10 1PA declares that the 18V Cordless Drill is exclusively manufactured and imported for Mylek. www.hsdonline.co.uk...
