Lamona LAM3210 Instructions And Installation

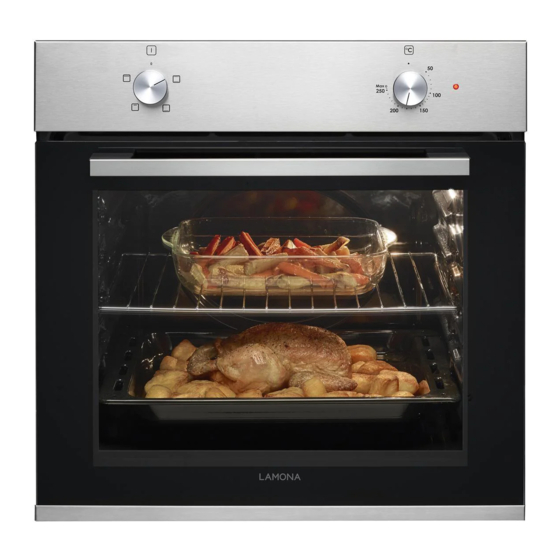

Built-in conventional oven
Hide thumbs

Advertisement

Table of Contents

Built-in Conventional Oven
LAM3210
Instructions and Installation
www.howdens.com/appliance-registration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAM3210 and is the answer not in the manual?

Questions and answers

Related Manuals for Lamona LAM3210

Summary of Contents for Lamona LAM3210

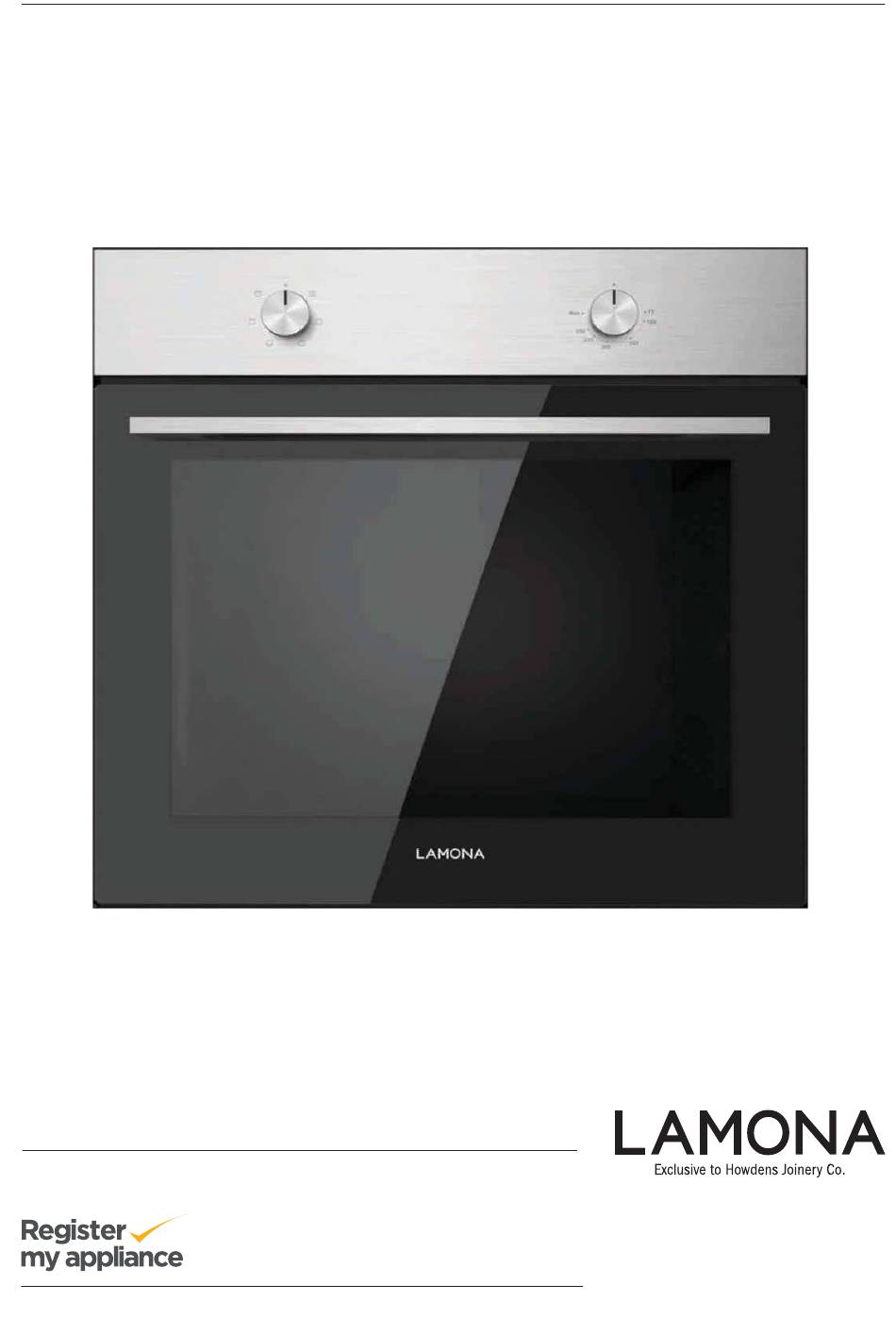

  • Page 1 Built-in Conventional Oven LAM3210 Instructions and Installation www.howdens.com/appliance-registration...
  • Page 2 See back page for product serial number...
  • Page 3 LAMONA Appliances Dear Customer, Congratulations on your choice of oven. The user manual will help you use your product quickly and safely. Please read this user manual before installing and using the oven. Always follow the safety instructions. Keep this user manual within easy reach for future reference.
  • Page 4 User manual LAM3210 Index Before using the oven & Safety Cooking and baking advice General Cooking table Safety for children Oven cooking table Safety when working with electricity Grill cooking table General information Care and maintenance Oven layout General information...

  • Page 5: General Safety

    LAMONA Appliances Before using the Oven • Make sure that you have removed all packaging, wrappings, stickers and film from the oven's surface (see page 10). • It is recommended that you clean and wash the oven's surface before using for the first time.
  • Page 6 User manual LAM3210 WARNING FIRE RISK: Do not place aluminium foil, baking trays or cook on the base of this oven, doing so will cause permanent damage to your appliance and cabinetry with the potential risk of fire. • Keep all ventilation slots clear of obstructions, as this may cause premature failure of the oven element.

  • Page 7: Safety For Children

    Safety for children • Electrical products can be dangerous to children under 8 year of age. • Keep children away from the product when it is operating and do not allow them to play with or near the product. • “CAUTION: accessible parts of the oven may become hot when the oven or grill is in use.
  • Page 8 User manual LAM3210 °C Page _ 8 Exclusive to Howdens Joinery.co...

  • Page 9: Operating Modes

    LAMONA Appliances Operating modes Operating modes All functions for the ovens and grill are listed in this section. Please note* depending on the model of your oven, the number and order of operating modes available may deviate from the illustrations shown below.

  • Page 10: First Cleaning Of The Appliance

    User manual LAM3210 Preparation First cleaning of the appliance Tips for saving energy 1. Remove all packaging materials. The following information will help you to use your 2. Wipe the surfaces of the appliance with a appliance in an ecological way, and to save energy:...

  • Page 11: Shelf Positions

    LAMONA Appliances How to operate the main oven and grill Shelf positions Select temperature & Operating mode The oven has 4 shelf positions as illustrated below, It is important to position the wire shelf into the runners correctly. °C a. Oven function knob b.

  • Page 12: Cooking And Baking Advice

    User manual LAM3210 Cooking and baking advice Tips for baking cake If the cake is too dry, increase the temperature Risk of scalding by hot steam! Take care when by 10°C and decrease the cooking time. opening the oven door as steam may escape.

  • Page 13: Oven Cooking Table

    LAMONA Appliances Cooking Tables The values indicated in the tables below are Baking and roasting indicative. They may vary according to the type of Level 1 is the bottom level in the oven. food, the quantity and your preferences of cooking.

  • Page 14: Grill Cooking Table

    Grill cooking table unction Fish vel 3-4 Sliced chicken vel 3-4 Lamb chops vel 3-4 Sausages vel 3-4 Toast vel 4 pre-heat of 3 to 4 min. uantities of f erence. www.howdens.com Page _ 14...

  • Page 15: Care And Maintenance

    LAMONA Appliances Care and maintenance General information Cleaning oven door glass Service life of the product will e end and the e cleaners or sharp oduct is metal scrapers for cleaning the oven door. They cleaned at regular intervals. could scratch the surface and damage the glass.
  • Page 16 User manual LAM3210 specifications, for details. Page _ 16 Exclusive to Howdens Joinery.co...

  • Page 17: Before Installation

    LAMONA Appliances Installation Before installation The appliance is intended for installation in Howdens kitchen cabinets. The product should only be installed by suitably Surfaces, synthetic laminates and adhesives used must be heat resistant. The product must be installed in accordance with all local regulations.

  • Page 18: Electrical Connections

    User manual LAM3210 Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your oven is intended for permanent installation. Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation.

  • Page 19: Cooling Fan

    LAMONA Appliances Your oven comes prefitted with a mains cable. Terminal If you need to change it: Neutral : Live: Brown 1. Open the terminal block cover with screwdriver. Earth: Green / 2. Pass the mains lead under the cable clamp and secure clamp with the screw over the outer cable insulation.
  • Page 20 User manual LAM3210 TECHNICAL INFORMATION General Voltage /Frequency 220-240 V ~ 50 Hz Total power consumption 2.4kW Fuse min. 13A Oven/Grill External dimensions (height / width / depth) 595 mm/595 mm/545mm Installation dimensions (height / width / depth) 585-595 mm/560 mm/min. 560mm...

  • Page 21: Troubleshooting Guide

    LAMONA Appliances Troubleshooting TROUBLESHOOTING GUIDE Symptoms Possible Cause Solutions Food is being cooked with a high It is normal that steam escapes from food during Oven emits steam when it water content is in use. cooking. This is not a fault.

  • Page 22: Your Guarantee

    Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance.
  • Page 24 Product serial number (Place sticker here) ISSUE v1 110116...
