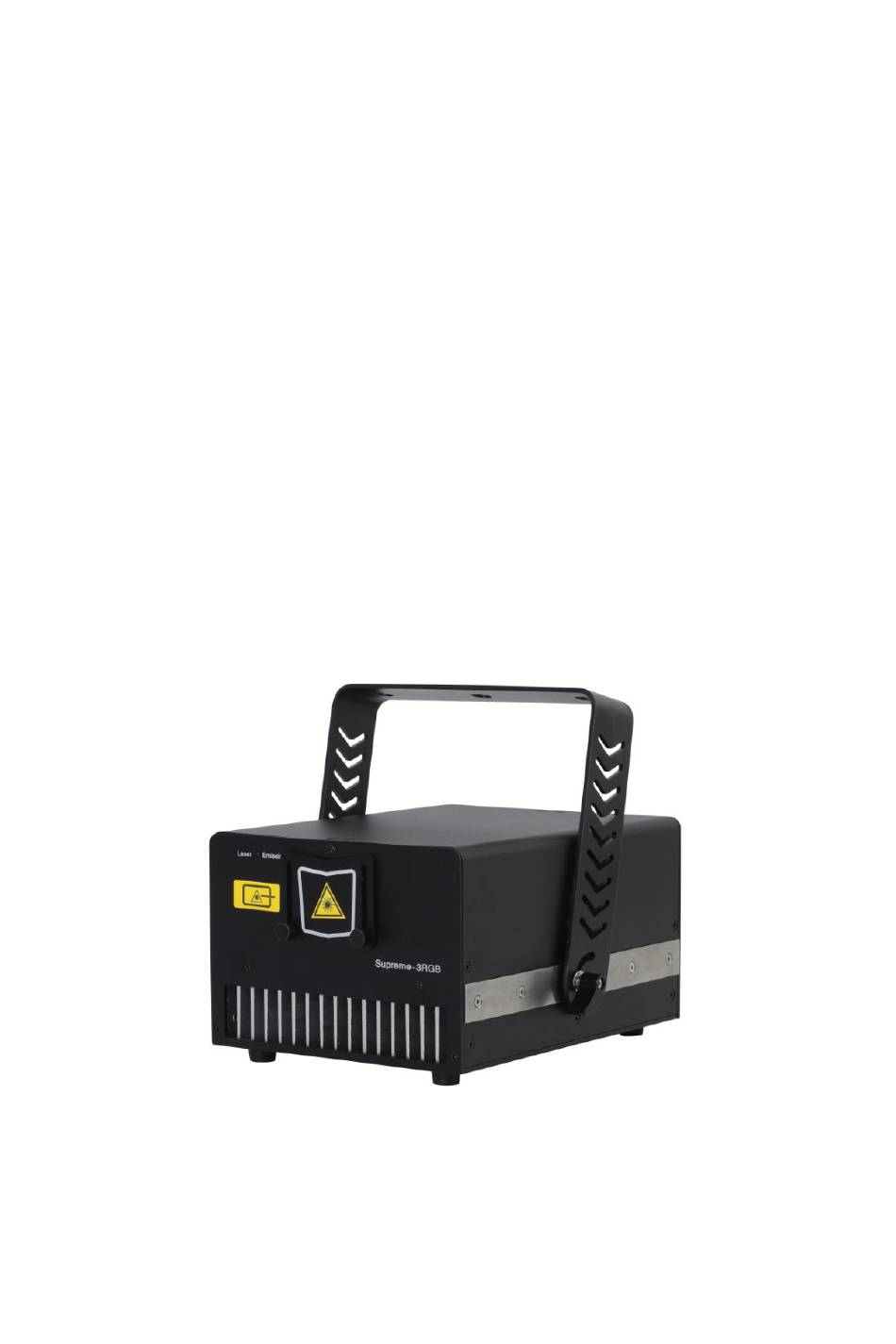

- Page 1 User Manual for 3000RGB Please read this manual fully Before operating this laser !
- Page 2 Dear customers: Thank you for choosing our laser series products. To get better experience, please read this manual carefully before using it. This product has been strict controlled from design to production, and conforms to the use requirements of international standard agreements. Sufficient aging tests will be carried out on the product before leaving the factory to ensure your use experience.
-
Page 3: Package Contents
1、Package contents 1 x laser projector 1 x power cable 1 x interlock connector 1 x keys 1 x manual unction description ILDA IN/OUT LCD display ON/OFF Safety O-ring Adjust switch Fuse DMX IN/OUT Key switch Power connection Handle Interlock 1）ILDA IN / ILDA OUT: ILDA signal connector 2）Safety O-ring：Hang a safety rope 3）DMX IN/DMXOUT：DMX signal connector, multiple units can be connected... -
Page 4: Product Parameters
in series 4）The handle：Links to link 5）LED Display：machine control the display 6）Adjust switch：Rotate left and right to adjust, press OK 7）KEY：when key switch on, the light will go out 8）Internet lock：connect the remote adapter to the interlock, the laser will only be operate when the remote adapter is plugged in. 9）OFF/ON：power on/off 10）FUSE：safety protection 11）Power AC:110-250V：power connector（wide voltage）... - Page 5 Cooling way Fan cooling Working temperature -10℃-45℃ Size 220(L)*170(w)*130(H) mm Weight 3.85KG Occasion KTV, CLUB, banquet hall, stage 4、Operations 1）The laser light must need put the Keys and interlook, Picture below 2） When the machine is connected to IDLA line, the system will default to IDLA control mode, and other control modes will not be able to start When using control modes other than IDLA control (such as voice control, self-walking, etc.), the IDLA mode should be adjusted to the closed state in...
- Page 6 3） LED indicator DMX-512 Mode Auto Mode Select Menu 1、LED indicator status description: Laser Key RG:Slow Safety Protected R: ON G:OFF DMX And Slave Mode RG:Fast Auto Mode R: OFF G:Slow Music Mode, R: Fast G:ON ILDA Mode R: OFF G:Fast 2、Select Menu Select the desired function menu by rotating left and right, the menu height is selected, and press OK/return to the selected function.
- Page 7 Auto Speed Music Mode Music Effect 3、Music Mode Effect Show Lines Show MusicSpeed 50% Beams Show Music Speed Laser Light Scan Rate 4、Laser Light Scanner 20KPPS 20KPPS Color Color Setup Laser Analog Single Invert Normal Image Size X Y Position WYPC Laser Type Analog...
- Page 8 Display Setup Master Setup About System Turn ON Turn OFF Back Light Normally ON Delay 15S OFF Language Chinese English Display Setup Rotate 180deg NormalDisplay LaserSystem2.9 Software Version 1.0 YM:20190301001 NetILDA Mode 6、NetILDA Mode Turn ON Turn OFF 3、DMX-512 Channel explain： 1、Normal Mode 12CH table: Channel Value...
- Page 9 Flowing water effect speed 128～159 selection 160～191 192～223 Gradient effect speed selection 224～255 CH10 Flash effect Flash effect speed selection 1～255 CH11 Static pattern Static pattern selection 0～127 Dynamic pattern Dynamic pattern selection 128～255 CH12 Auto mode Auto speed selection 0～127 Sound mode Sound sensitivity selection...
- Page 10 CH11 Static pattern Static pattern selection 0～127 Dynamic 128～255 Dynamic pattern selection pattern CH12 Auto mode Auto speed selection 0～127 Sound mode 128～255 Sound sensitivity selection CH13 Rotation 1～255 Rotation speed selection CH14 Flip horizontal Flip horizontalspeed selection 1～255 CH15 Flip vertical 1～255 Flip vertical speed selection...
-
Page 11: Safety Warning
(10 feet) above any ground where your audience is standing.Refer to the variance of the required vertical and transverse safe distances. Performers and professionals may, at the discretion of an experienced laser safety officer, waive these safe distances and implement alternative radiation safety plans. - Page 12 a height of 3 m (10 ft) in order to protect some people from standing and being able to pass safely. 4. This device is more suitable for indoor use, where contact with liquids should be avoided at all times and kept dry. 5.
