Summary of Contents for bca Vegas
- Page 1 Vegas Control Panel User Manual Page | 1 Vegas Button Panel Vegas Battery and Water Level Panel Vegas Battery and Gas Level Panel Vegas Batter Level Panel (without Water or Gas indicator)
-
Page 2: Table Of Contents
Vegas Control Panel User Manual Table of Contents Page | 2 Overview: ..............................3 Vegas Button Control Panel: ....................... 4 Vegas Voltmeter with Water Level Panel: ..................5 Vegas Voltmeter with Gas Level Panel: ....................7 Vegas Voltmeter Battery Measurement Only Panel:................9... -
Page 3: Overview
Vegas Control Panel User Manual Overview: Page | 3 The Vegas Control Panel range allows the user a central or distributed point to check: • Leisure vehicle battery voltage • Water tank level measurement • Waste tank full status •... -
Page 4: Vegas Button Control Panel

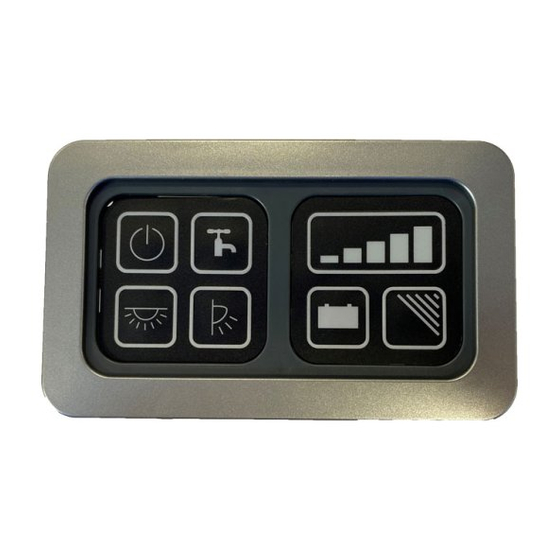

Vegas Control Panel User Manual Vegas Button Control Panel: Page | 4 Vegas Button Control Panel Master Button Pump Button Lights Button Awning Button Master Button When the Master Button is pressed, the control panel will switch power to all non-essential accessories. -
Page 5: Vegas Voltmeter With Water Level Panel
Water Level Button Display Indicator The Display indicator on the Vegas Voltmeter Panel is used to display the Leisure Battery voltage and the Water level, depending on which button is pressed, also depending on the model it will display sensor alerts Display Alerts •... - Page 6 Vegas Control Panel User Manual Water Level Calibration Page | 6 When the water level system is used for the first time or the water tank has been filled from a new water source it is recommended that the user calibrates the water level system, to calibrate the water level system please follow the points highlighted below: •...
-
Page 7: Vegas Voltmeter With Gas Level Panel
Re-calibrating when using a new water source: Page | 7 If the Vegas Control Panel is being used with the BCA Resistive Water Probe the control panel should be re-calibrated at full when the water tank is filled up with water from a new water source. - Page 8 Leisure Battery Voltage Button Gas Level Button Display Indicator The Display indicator on the Vegas Voltmeter with Gas Level Panel is used to display the Leisure Battery voltage and the LPG level, depending on which button is pressed. Display Alerts •...
-
Page 9: Vegas Voltmeter Battery Measurement Only Panel
Leisure Battery Voltage Button Button not used Display Indicator The Display indicator on the Vegas Voltmeter Panel is used to display the Leisure Battery voltage. Display Alerts • If a waste tank is fitted, the lowest indicator (Red) will illuminate when the waste tank is full.
