Icom RC-28 Instructions page 2

Rear
view
q Make sure Windows has completed its start-up.
w Connect the RC-28 to the PC that the RS-BA1 1.30
or later version is installed.
PC
w
to a ［USB］ port
• DO NOT connect the RC-28 to the PC with other
than the supplied USB cable or through any USB
hub. The RC-28 may not work properly.
• The RC-28 cannot be used with RS-BA1 1.20 or
earlier versions. Please download the latest ver-
sion from the Icom website, and update your RS-
BA1.
https://www.icomjapan.com/support/
 When you connect the RC-28 to the PC for the first
time, wait until "Device driver software installed suc-
cessfully." is displayed.
e Start up the RS-BA1 Remote control software.
• The [LINK] indicator on the RC-28 lights green. (See
'PANEL DESCRIPTION' e.)
r Now you can control the assigned functions of the
RS-BA1 using the RC-28.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Sep. 2022

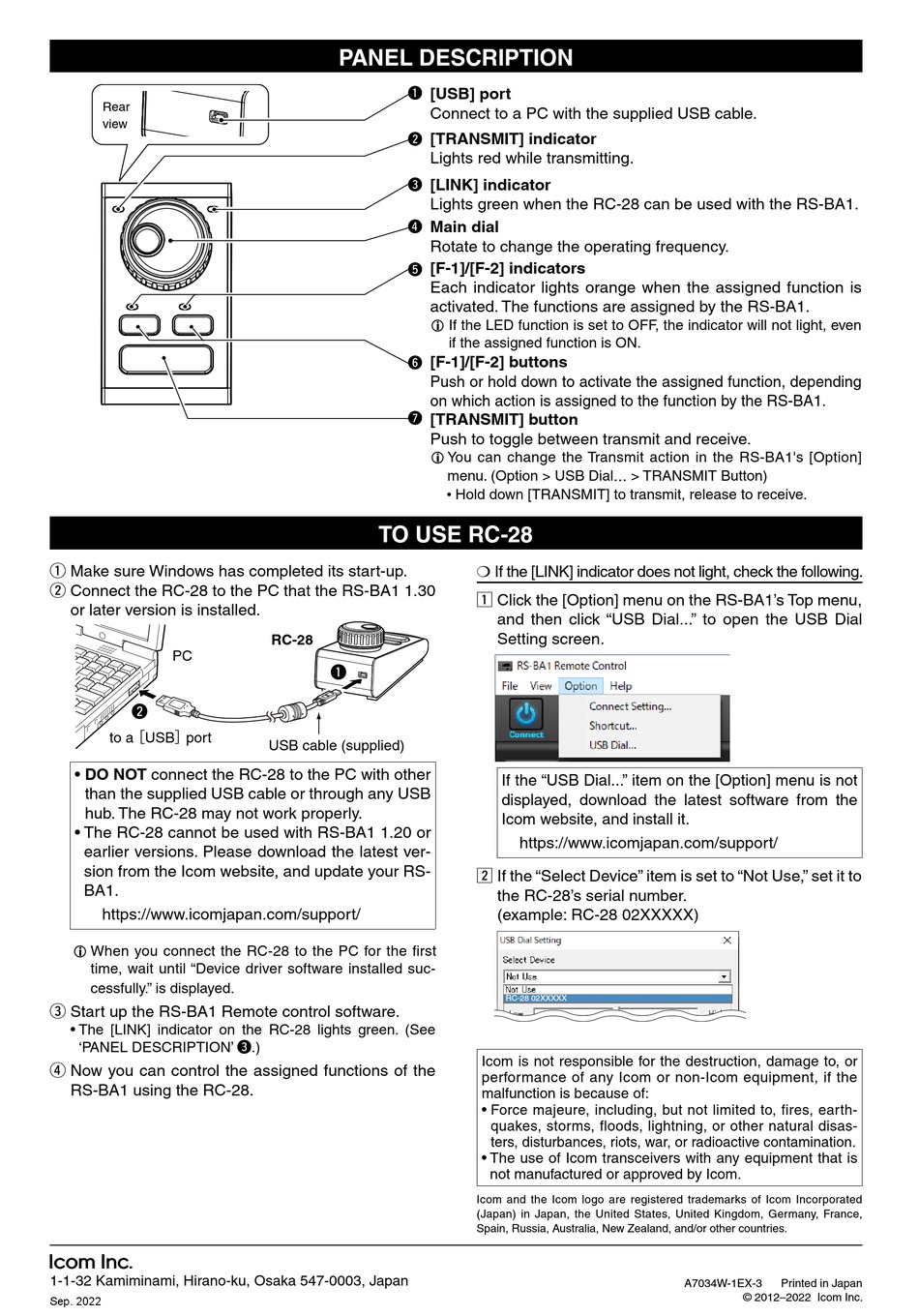

PANEL DESCRIPTION
[USB] port
q
Connect to a PC with the supplied USB cable.
[TRANSMIT] indicator
w
Lights red while transmitting.
[LINK] indicator
e
Lights green when the RC-28 can be used with the RS-BA1.
Main dial
r
Rotate to change the operating frequency.
[F-1]/[F-2] indicators
t
Each indicator lights orange when the assigned function is
activated. The functions are assigned by the RS-BA1.
 If the LED function is set to OFF, the indicator will not light, even
[F-1]/[F-2] buttons
y
Push or hold down to activate the assigned function, depending
on which action is assigned to the function by the RS-BA1.
[TRANSMIT] button
u
Push to toggle between transmit and receive.
 You can change the Transmit action in the RS-BA1's [Option]
TO USE RC-28
RC-28
q
USB cable (supplied)
if the assigned function is ON.
...
menu. (Option > USB Dial
• Hold down [TRANSMIT] to transmit, release to receive.
❍ If the [LINK] indicator does not light, check the following.
z Click the [Option] menu on the RS-BA1's Top menu,
and then click "USB Dial..." to open the USB Dial
Setting screen.
If the "USB Dial..." item on the [Option] menu is not
displayed, download the latest software from the
Icom website, and install it.
https://www.icomjapan.com/support/
x If the "Select Device" item is set to "Not Use," set it to
the RC-28's serial number.
(example: RC-28 02XXXXX)
RC-28 02XXXXX
Icom is not responsible for the destruction, damage to, or
performance of any Icom or non-Icom equipment, if the
malfunction is because of:
• Force majeure, including, but not limited to, fires, earth-
quakes, storms, floods, lightning, or other natural disas-
ters, disturbances, riots, war, or radioactive contamination.
• The use of Icom transceivers with any equipment that is
not manufactured or approved by Icom.
Icom and the Icom logo are registered trademarks of Icom Incorporated
(Japan) in Japan, the United States, United Kingdom, Germany, France,
Spain, Russia, Australia, New Zealand, and/or other countries.
> TRANSMIT Button)
A7034W-1EX-3 Printed in Japan
