HEATING TECHNIQUE
Technical instructions
for connecting of CM WiFi-Box
to the boilers PelTec, Cm Pelet-set touch,
EKO-CKS P UNIT, EKO-CKS Multi Plus,
BioTec-L.
ENG
CM WiFi-box
1.0. DELIVERY CONTENT
UTP cable
CM WiFi-Box
1X
1X
PelTec - on the rear board with connectors
UTP
UTP cable
Cm Pelet-set touch- to the main board
Cm Pelet-set touch mainboard
(necessarily remove the plug from the socket)
Turn off the boiler, remove the plug from the socket and
then unscrew two screws and remove cover of control
unit. Connect UTP cable to the free UTP plug and
connect it to the CM WiFi box. Route the cable through
the cable hole as shown.

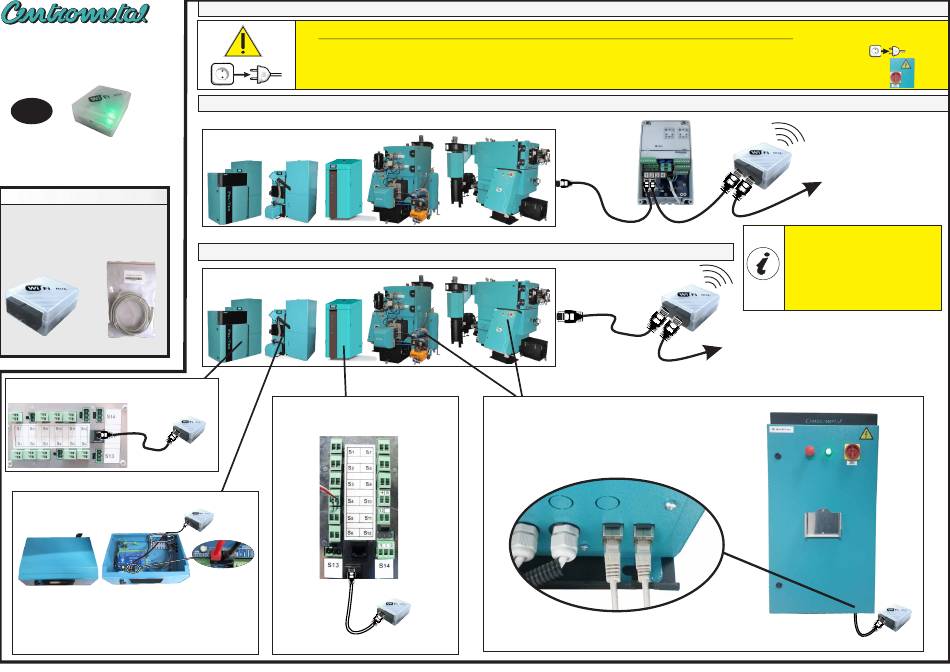

2.0 CONNECTING CM WIFI-BOX TO THE BOILER BY UTP CABLE
BEFORE ANY WORK ON THE BOILER, ELECTRIC ENERGY MUST BE SWITCHED OFF!
PELTEC, CM PELET-SET TOUCH, BIOTEC-L >>> switch off the boiler and remove the plug from the socket.
EKO-CKS P UNIT, EKO-CKS Multi Plus >>> switch off the boiler and set MAIN SWITCH on junction box to "OFF"
2.1 OPTION - FROM EXISTING ADDITIONAL EQUIPMENT
2.2 OPTION - DIRECTLY FROM BOILER
BioTec-L - on board with connectors
inside of boiler electronic
UTP
(example)
CM2K
UTP cable
CM WiFi-box
UTP
UTP cable
EKO-CKS P UNIT and EKO-CKS Multi Plus - to the free
UTP socket on the bottom of boiler junction box. (The boiler
control automatically recognizes Cm WiFi-box without regardless
of which UTP socket is connected).
CM WiFi-box
CONNECT TO NEXT
ADDITIONAL
EQUIPMENT
(only if exist)
UTP cable
UTP cable
At the bottom of the CM WiFi box
is a sticker with which you can
attach WiFi-box to the wall, boiler
etc.
CONNECT TO NEXT
ADDITIONAL EQUIPMENT
(only if exist)
