DHAMAN-III Ventilator System
Operators Manual
Version No: V.02.02.06.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DHAMAN-III and is the answer not in the manual?

Questions and answers

Arpan Verma
January 17, 2025

10 PC REQUIRED ventilator CIRCUIT dhaman iii 3rd

User image 678a085165c70
0
1 comments:
Mr. Anderson
February 3, 2025

To order 10 pieces of the JYOTI DHAMAN-III ventilator circuit, contact the Sales Department of Jyoti CNC Automation Limited using the following details:

Phone: +91-99799 70088
Email: info@jyotihealthcare.com

This answer is automatically generated

0
Arpan Verma
January 17, 2025

Ventilator CIRCUIT Dhaman Iii

User image 678a08045d862
0
1 comments:
Mr. Anderson
May 14, 2025

The JYOTI DHAMAN-III ventilator circuit includes the following specifications:

- It must be connected according to the selected ventilation mode.
- Components of the breathing circuit, such as the flow sensor, humidifier, and other accessories, must match the intended use for the target patient group.
- It uses a proximal flow sensor and an FiO₂ sensor.
- The system supports both adult and pediatric patients.
- It includes a leak test as part of its functional checks.

This answer is automatically generated

0

Summary of Contents for JYOTI DHAMAN-III

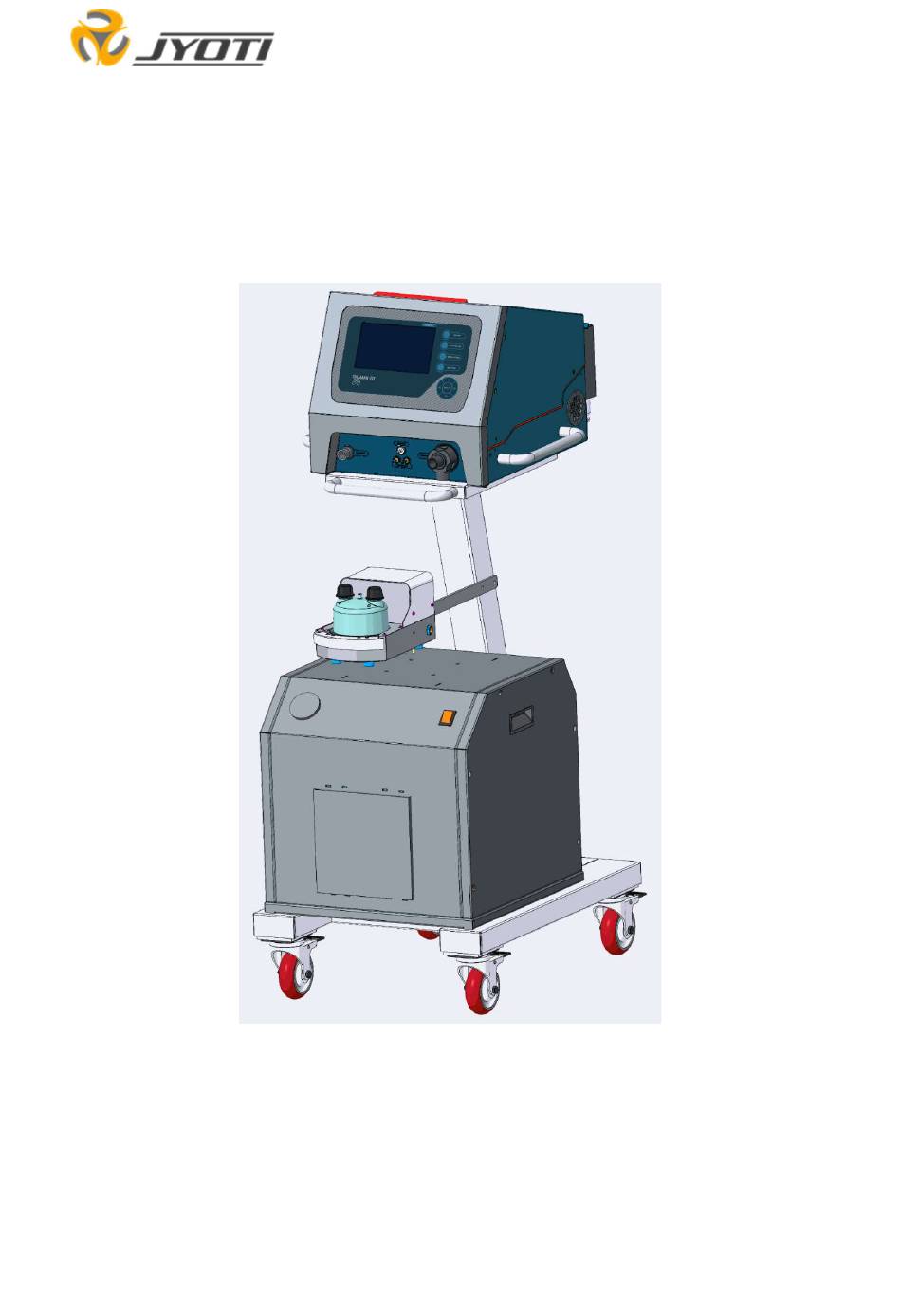

  • Page 1 DHAMAN-III Ventilator System Operators Manual Version No: V.02.02.06.2021...
  • Page 2 Jyoti. This manual may be revised or replaced by Jyoti at any time and without notice. You should ensure that you have the most current applicable version of this manual; if in doubt, reach us on the ‘contact detail’...

  • Page 3: Table Of Contents

    Contents Chapter 1 - Introduction .................. 5 Device Outline ........................5 Operator’s Safety Information ..................7 General Warnings & Cautions ..................8 Chapter 2 – System Overview ..............14 User Interface ........................15 Patient Unit ........................18 Symbols & Labels ......................19 Transportation and Storage ..................
  • Page 4 HFNT (High Flow Nasal Therapy) ................. 51 BiPAP ST (Biphasic Positive Airway Pressure – Spontaneous Time) ....52 Special Functions ......................61 Chapter 6 – Monitoring ................. 63 Numerical Patient Data ....................63 Graphics ..........................64 Chapter 7 – Alarm Handling ................. 66 Introduction ........................

  • Page 5: Chapter 1 - Introduction

    1.1 Device Outline DHAMAN-III Ventilator System is intended to provide invasive or noninvasive ventilator support and monitoring for pediatric and adult patients with respiratory failure or respiratory insufficiency.
  • Page 6 Detailed Inspection and service of DHAMAN-III ventilator must be done at regular intervals by a trained professional. Maintenance of Inspection and Service Records: All matters related to the inspection and servicing of DHAMAN-III ventilator shall be recorded in accordance to regulations prescribed by hospital, state government, and central government.

  • Page 7: Operator's Safety Information

    ‘Intended User’ described in this Manual is/are not met with. • Service by a non-professional Our company will not be responsible for the safe operation of DHAMAN-III if this product is serviced or repaired by an individual who does not have or did not complete relevant training required for maintenance and service of this product.

  • Page 8: General Warnings & Cautions

    General Warnings & Cautions WARNING  DHAMAN-III ventilator is a critical care medical equipment and must be operated by a trained medical or healthcare worker/professionals in accordance to the guidelines given in this booklet.
  • Page 9  Please turn off the power to recharge the battery when it is not used.  DHAMAN-III ventilator system is a product conforming to Class II. Page 9 of 93...
  • Page 10 1.3.1 Warnings Regarding Storage of the Device: WARNING  Do not store the product in a place exposed to extremely low / or extremely high humidity.  Do not store the product in a place exposed to direct sunlight.  Do not store the product in a place near to a heating device. ...
  • Page 11 1.3.2 Before starting the device: WARNING  This product is extremely dangerous when used or stored in places exposed to chemical substances or explosive gases.  Check the settings of various sensors & sub- devices before use.  Do not disassemble or dismantle the product. ...
  • Page 12 This may include displaying incorrect calculation values, disappearance of measurements and noises affecting the wave pattern. If such errors continue, contact the DHAMAN-III Technical Service Centre or Service Engineer for assistance.  If used by a patient with pacemaker, a professional individual with all required expert knowledge must operate the product.
  • Page 13  Do not use an anti-electrostatic or conductive tube for the product.  Auxiliary equipment and accessories provided by DHAMAN-III have been specifically qualified and approved by the company to ensure that these items meet the electrical safety standards.

  • Page 14: Chapter 2 - System Overview

    Chapter 2 – System Overview The DHAMAN-III Ventilator System Comprise of the following Main Components as described in fig. Figure 2. System Components Page 14 of 93...

  • Page 15: User Interface

    Ventilator System Trolley Humidifier Compressor User Interface The DHAMAN-III Ventilator Control Panel is made up of a Graphical User Interface touch screen, membrane buttons and indicator LEDs/lights as shown in figure 3. Figure 3. User Interface View Page 15 of 93...
  • Page 16 2.1.1 Display: Figure 4. Main Screen Display Area DHAMAN-III has Touch screen display in which operator can easily access and review all functions of ventilator. Item No. Description Status Bar- Alarm description, Mains Supply Status, Battery status, Ventilator On/Off , Screen Lock, Alarm Silent functions, Nebulizer Alarm logs Shortcut etc.
  • Page 17 2.1.2 Fixed Keys & LED Indications: Figure 5. User Interface Functions Description Function On/Off This button is used to On or Off the ventilator. Alarm Silent This button is used to silent the active alarm sound for 2 Seconds. Manual Breath This button is used to provide manual breath to patient Nebulizer This button is used to turn On/Off the Nebulizer.

  • Page 18: Patient Unit

    Patient Unit Patient unit (main body of the ventilator) is composed of the following parts.  Gas supply and connection part  Power supply and connection part  Accessory connection part & communication ports 2.2.1 Patient Unit Configuration: Refer to the patient unit diagram on the next page to check for location of the following parts.

  • Page 19: Symbols & Labels

    Symbols & Labels Name Symbol Explanation Power ON/OFF Provision of power by switching on and off the system. Screen lock Provision to lock & unlock the touch screen. Attention, Consult Indicates the necessity to refer to the operational accompanying manual prior to equipment operation. documents Indicate NEBULIZER mode is On.

  • Page 20: Transportation And Storage

    Transportation and Storage 2.4.1 Prior to Transportation: Check the following before intra hospital transportation of the ventilator:  Be sure the ventilator has been securely attached and fixed by screws with the trolley.  Be sure that all accessories such as humidifier are securely attached and locked.

  • Page 21: Information/Assistance

    Ensure that the tubes and exposed orifices are covered properly to prevent contamination during movement. Information/Assistance For additional information or troubleshooting assistance concerning the operation of DHAMAN-III ventilator please refer to the contact details on chapter 12.2. Page 21 of 93...

  • Page 22: Chapter 3 - Setting Up The Ventilator

    Chapter 3 – Setting up the Ventilator Installing Ventilator After Unboxing, the ventilator must be kept on its Trolley or any flat surface of any cart having dimensions of 500*500*500mm with weight bearing capacity of Approx. 40 Kg. as per Figure 7. Figure 7.

  • Page 23: Connecting Electrical Supply

    Connecting Electrical Supply DHAMAN-III ventilator has auto transition function for rated voltage. The ventilator automatically adjusts between 110 AC to 240 AC power. To avoid electrical shock hazard, connect the ventilator power chord into a grounded AC power outlet. Ventilator comes with removable power chord, so connect the chord as per Figure 8.

  • Page 24: Connecting Oxygen/ Air Supply

    ’Main power loss & switched to battery. Connecting Oxygen/ Air Supply In DHAMAN-III Oxygen and Air are provided through the Standard DISS Connectors at the rear side of ventilator & get mixed to have appropriate gas concentration. Figure 9. Air & Oxygen Connection Gas Quality: Gases supplied must be appropriate to medical gas standards.

  • Page 25: Connecting Patient Breathing Circuit With Flow Sensor

    WARNING  Quality of medical gas pipeline system connecting to the ventilator from customer side should comply as per ISO 7496.  When you start or stop oxygen and air supply, be careful about whether it in assembled or disassembled condition because high pressure hose can harm human body.
  • Page 26 Blue tube Colorless tube Figure 11. Standard Breathing Circuit with Flow Sensor Figure 12. Breathing Circuit with Humidifier & Flow Sensor Page 26 of 93...

  • Page 27: Connecting High Flow Nasal Therapy Circuit

    WARNING The Flow Sensor is a precise and delicate instrument. Do not insert any object into the flow sensor, nor direct pressurized flows of liquids or gases through the sensor during cleaning and reprocessing. The life cycle of the sensor is limited and will depend on observance of safe handling precautions and the ability to calibrate the sensor.

  • Page 28: Connecting Nebulizer

    Connecting Nebulizer Operator can access Nebulizer feature from the front screen button of Dhaman-III. The nebulization feature provides a stable driving pressure to power a pneumatic nebulizer connected to the nebulizer outlet, optimally specified for ca. 8 l/min flow. Connect the nebulizer and accessories as per Figure 14.

  • Page 29: Communication Ports

    Communication Ports RS485 & USB ports are given on rear side of DHAMAN-III ventilator for communications. This 9-pin RS485 data connection port used for programing purpose of DHAMAN-III. (Service Purpose only). A USB 2.0 port also given at the rear side of ventilator near to RS485 communication port for data transfer and software update.

  • Page 30: Chapter 4 - Operating Procedure

    Chapter 4 – Operating Procedure This section describes how to turn the DHAMAN-III ventilator ON and OFF, and how to set up the ventilator before connecting to patient. NOTE Abbreviations for various mode parameter for operating system are mentioned in chapter 5.

  • Page 31: Performing Functional Checks

    Ensure that all the components of the breathing circuit set, including but not limited to flow sensor, humidifier, and other accessories, match the associated intended use for the target patient group. Selecting Patients DHAMAN-III ventilator will always start up with the standby screen with patient selection as per Figure 17. Page 31 of 93...
  • Page 32 Figure 17. Patient Selection Screen Operator can setup ventilator either for New patient or Previous Patient depending upon the patient going to be ventilated. Selecting New Patient will lead operator to enter all Patient data, Selecting Mode and its control parameters.

  • Page 33: Selecting Ventilation Mode & Control Parameters

    DHAMAN-III Ventilator Supports Following Patient Type: Adult, Pediatric Patient Data range and by default values are Shown in Table Below. Adult Pediatric Male/ Female Male/ Female By default Sex Female Female 25-120KG 5-25 KG By default IBW 50KG 15KG Figure 19. New Patient Screen ...
  • Page 34 Figure 20. Mode Selection Screen After selecting desired mode for the patient, operator can go into control parameters window by pressing next on the bottom right corner of the display screen as per Figure 20. Figure 21. Mode Control Screen Operator can also access Control window as per Figure 21 to change any parameter in running mode during ventilation by pressing Controls beside Active Mode shown in settings window.

  • Page 35: Setting Alarm Limits

    After Setting up all the control parameters of selected mode, operator should press confirm on bottom right corner of the display screen as per Figure 21. A pop up Screen will appear after operator confirms selected mode and its control parameters as per Figure 22.
  • Page 36 Figure 24. Alarm Setting Screen  To set an alarm limit individually, touch the alarm window and adjust the value. Repeat for any other alarm. There may be one or two windows for Alarm Limits as per selected mode. So after setting the first window of alarm limits, operator should press ‘next’...

  • Page 37: Start Ventilation

    Figure 25. Alarm Setting Confirmation Screen  A pop up Screen will appear after operator confirms all alarm limits settings.  New Alarm Limits will take effect from next cycle only after confirmation of operator in this window by Pressing Yes. ...

  • Page 38: Stop Ventilation

    By pressing Cancel Operator is denying ventilator to start Ventilation and again Monitor screen will appear on display. WARNING Always press the “Start Ventilation” touch button on the screen just prior to connecting the breathing circuit to the patient. Never connect the patient breathing circuit to the patient while the ventilator is in Standby condition.
  • Page 39 Figure 28. Turn Off Ventilator Screen By Pressing yes in pop up screen operator is agreeing to turn ventilator off and it will Shut down. By Pressing Close in Pop Up Screen Operator does not agree to turn off ventilator and ventilator will remain in standby mode.
  • Page 40 NOTE When powered on, DHAMAN-III uses the previous ventilation parameters set prior to power off. When possible, leave the power cord plugged into the electrical outlet to maintain the internal battery charge level. Turning off the device must be done manually and must be performed before leaving the device disconnected from AC power for any extended period of time.

  • Page 41: Chapter 5 - Ventilator Modes & Controls

    Chapter 5 – Ventilator Modes & Controls Diverse ventilation modes can be used in DHAMAN-III Ventilator System. This Chapter describes the ventilation modes, their settings, and associated safety information. Ventilator modes are Primarily divided into Invasive & Non-invasive ventilation. In Invasive ventilation operator can find Volume controlled &...

  • Page 42: Vcvs (Volume Control Ventilation With Assist Control)

    WARNING Alarm setting for each ventilation mode must be configured appropriately. In particular, be careful about the following alarms.  In order to prevent risk of self- triggering, do not configure trigger sensitivity as too low (sensitive).  Be careful about upper pressure alarm setting to protect the patient’s lungs from excessive pressure.

  • Page 43: Vcv-Simv (Volume Control With Synchronized Intermittent-Mandatory Ventilation)

    Figure 30. VCV Mode Control screen NOTE Please ensure that, for adult patient tidal volume is considered 10 ml/kg. For pediatric patient tidal volume is considered 8 ml/kg. VCV-SIMV (Volume Control with Synchronized Intermittent-Mandatory Ventilation) This is a Volume Controlled, time cycled, machine or patient triggered ventilator mode with fixed inspiratory flow that permits spontaneous breath during the Expiration phase on PEEP.

  • Page 44: Prvc (Pressure Regulated Volume Control)

    0 ~ 60 P-Rise 50 ~ 200 5 ~ 70 Figure 31. VCV-SIMV Mode Control Screen NOTE Please ensure that, for adult patient tidal volume is considered 10 ml/kg. For pediatric patient tidal volume is considered 8 ml/kg. PRVC (Pressure Regulated Volume Control) Pressure-regulated volume control (PRVC) is kind of dual-controlled ventilation in which the ventilator attempts to achieve the volume target using a pressure- control gas delivery format at the lowest possible airway pressure with Decelerating inspiratory flow.
  • Page 45 mandatory breaths. To give the patient sufficient time for expiration, it is not possible to trigger another mandatory breath immediately after a completed breath. If after the completion of the expiratory time, no mandatory breath has been triggered, a mandatory breath is automatically applied (backup frequency). The control for respiratory rate (RR) therefore defines the minimum ventilation frequency.
  • Page 46 Figure 32. PRVC Mode Control Screen Despite the advantage of the pressure mode, a long time or a sudden change in status of the patient, or pure breathing changes for a long time, the PRVC mode resolves this instability by constant monitoring of delivered parameters. Both waveforms shows how PRVC Mode adapts patient compliance change and maintain target volume with lowest pressure possible.

  • Page 47: Pcvs (Pressure Controlled Ventilation With Assist Control)

    NOTE Please ensure that, for adult patient tidal volume is considered 10 ml/kg. For pediatric patient tidal volume is considered 8 ml/kg. PCVs (Pressure controlled Ventilation with Assist Control) Pressure-controlled ventilation (PCV) is a pressure-targeted, time-cycled mode of ventilation. During inspiration, the ventilator adjusts the flow rate to keep the airway pressure at the set level.

  • Page 48: Pcv-Simv (Pressure Control With Synchronized Intermittent Mandatory Ventilation)

    Figure 33. PCV Mode Control Screen The delivered volume is dependent upon the pressure and PEEP, lung compliance and resistance in the patient tube system and airways. This means that the Tidal Volume can vary. If the pressure increases to the set upper pressure limit, the expiratory valve opens and the ventilator switches to expiration.

  • Page 49: Cpap-Psv (Continuous Positive Airway Pressure With Pressure Support)

    21 ~ 100 0 ~ 60 P-Rise 50 ~ 200 5 ~ 70 Figure 34. PCV-SIMV Mode Control Screen CPAP-PSV (Continuous Positive Airway Pressure with Pressure Support) Continuous positive airway pressure (CPAP) is a form of positive airway pressure ventilator, which applies mild air pressure on a continuous basis. It keeps the airways continuously open in people who are able to breathe spontaneously on their own, but need help keeping their airway unobstructed.
  • Page 50 Please refer Figure 35 & table for the setting of Control Parameters. Control Setting Parameter Setting Range Unit Default Step Hold 0 ~ 30 PEEP 1 ~ 20 Flow Trigger l/min 21 ~ 100 0 ~ 60 50 ~ 200 P-Rise Apnea Rate 5 ~ 80...

  • Page 51: Hfnt (High Flow Nasal Therapy)

    Figure 35. CPAP-PSV Mode Control Screen NOTE Please ensure that, for adult patient tidal volume is considered 10 ml/kg. For pediatric patient tidal volume is considered 8 ml/kg. HFNT (High Flow Nasal Therapy) This mode can be used for high flow nasal therapy. This mode controls flow along with adjusting O Percentage.

  • Page 52: Bipap St (Biphasic Positive Airway Pressure - Spontaneous Time)

    Figure 36. HFNT Mode Control Screen BiPAP ST (Biphasic Positive Airway Pressure – Spontaneous Time) Biphasic Positive Airway Pressure (BIPAP) described pressure controlled ventilation in a system allowing unrestricted spontaneous breathing at any moment of the ventilator cycle. This mode is capable of compensating leak during spontaneous respiration in order to maintain set IPAP &...
  • Page 53 Figure 37. BiPAP Mode control screen Refer below given steps to operate BiPAP ST mode. 5.8.1 New patient start: Press new patient start (see figure 37A) Page 53 of 93...
  • Page 54 Figure 37 (A) To start ventilation in Bi-PAP ST, first of all, on this screen, we have to provide information related to the patient (see figure 37B). Then click “Next”. Figure 37 (B) Here we are shown total 8 modes of ventilation, including both Invasive and Non-Invasive, click on “Bi-PAP_ST”...
  • Page 55 Figure 37 (C) then click “Next” which will open the list of control parameters of Bi-PAP-ST mode. Here we have to set ALL parameters as per patient (see Figure 37D). Figure 37 (D) Please be careful while setting control parameters for Bi-PAP-ST mode because here we have given EPAP &...
  • Page 56 Figure 37 (E) After setting all control parameters of 2 page, press “Confirm”, so a pop up box will open asking, do you want to change settings? (see figure 37F) Please review alarm limits after confirmation. Press “Yes”. Figure 37 (F) After that we will have to go to Limits to set pressure limits for the patient.
  • Page 57 Figure 37 (G) Now press Next to set other control parameters on 2 page Tidal volume and Apnea time (see figure 37H). Figure 37 (H) Then press confirm which will again open a pop up box asking, do you want to change settings? Give yes (see figure 37I).
  • Page 58 Figure 37 (I) After that, click the ‘Touch to start Ventilation’ key which is there on the upper-Right corner of ventilator’s screen (see figure 37J). Figure 37 (J) Clicking it will open a pop box asking, do you want to start ventilation? (see figure37K) Click Yes and the ventilation will start.
  • Page 59 Figure 37 (K) Now we will see how all the parameters get updated and view them while the ventilation is on. By clicking on ‘View All Parameters’ (see figure 37L) Figure 37 (L) We can see all the parameter’s values of which will be updating breath by breath which will be real time.
  • Page 60 Figure 37 (M) To remove this alarm, we need to adjust face mask properly (see figure 37N) & reduce leakage from mask. Figure 37 (N) If this alarm comes continuously then ventilator may have difficulty in maintaining EPAP during ventilation due to heavy leakage & it will show another alarm of “Loss of peep” 5.8.2 Ventilation stop: Now let’s see how to stop the ventilation.

  • Page 61: Special Functions

    Please ensure that, for adult patient tidal volume is considered 10 ml/kg. For pediatric patient tidal volume is considered 8 ml/kg. Special Functions  Nebulizer Press Nebulizer Button on Front Panel keypad of DHAMAN-III Ventilator To Activate Nebulizer During Ventilation. Page 61 of 93...
  • Page 62 Nebulizer Will Provide 8 Lpm flow during inspiration phase of ventilation cycles.  Manual Breath Press Manual Breath Button on front panel keypad of DHAMAN-III Ventilator to provide extra breath manually to patient. Machine will provide extra breath whenever the button is pressed.

  • Page 63: Chapter 6 - Monitoring

    Chapter 6 – Monitoring DHAMAN-III Ventilator has monitor screen which shows real-time Patient data which includes waveforms and numeric values. Operator can observe and analyze Patient data during Ventilation through this screen without affecting breath delivery. Detailed Patient data is also available in the View All Parameters Section.

  • Page 64: Graphics

    Figure 39. Monitoring Parameter Screen 6.2 Graphics The Waveforms screen displays the last 10 seconds of patient airway pressure, flow & volume in a graphical format in Monitor Screen as per Figure 40. The graph updates in real-time and when necessary Operator can also use pause function which will hold Graphs.
  • Page 65 Description Function Pause By pressing this button Operator can pause the Plateau waveforms and check the value, after pressing start cycle once again started. Expand By pressing this button is Operator can expand the view of waveforms. Operator can also view Expand View of Graphs as per Figure 41 by pressing Expand in Monitor Screen.

  • Page 66: Chapter 7 - Alarm Handling

    Chapter 7 – Alarm Handling Introduction DHAMAN-III ventilator has an alarm system for the patient’s safety. An alarm message displays on the top side of screen along with a sound. All alarm indicates condition of each situation on screen & shows their warning message.
  • Page 67 limit settings in relation to a monitored displayed value. To change an alarm setting: Press the + or – button displayed on each value of the desired alarm. Figure 43. Alarm Setting Screen Alarm Limits Setting Parameter Limit Setting Range Unit Default Step...

  • Page 68: Alarm Messages

    NOTE In PCV, PCV-SIMV Mode High Pressure limit must be kept 5 cmh2O above set PIP, Operator cannot set below that value. Alarm Messages The Alarms & Messages bar, located at the top, center of the User Interface status bar, shows user prompt messages and alarm violation messages.
  • Page 69 6 Low Breath Immediate  Set Alarm limits Rate 7 Loss of PEEP Immediate  Check exhalation valve & Diaphragm  Leakage in patient circuit 8 Air Supply Immediate  If Air Supply to Ventilator Lost Failed  If Air Supply Pressure is Below 45 PSI. Switched to O Supply Immediate...
  • Page 70  If Airway Pressure reaches 5 cmH below set high pressure limit 18 High PEEP Immediate  When the patient circuit positive end expiratory pressure (PEEP) exceeds by 3 cmH O above set PEEP.  Check Exhalation Valve & Diaphragm ...

  • Page 71: Alarm Removal

     Check 28 Any alarm The ventilator’s patient; provide alternate message not ongoing checks ventilation. Remove ventilator from use listed in this have detected an and contact service. table. alarm condition. Alarm Removal Alarm Condition will automatically reset if the alarm condition is settled. Operator can silent the alarm to 2 minutes &...

  • Page 72: Chapter 8 -Technical Specification

    Chapter 8 –Technical Specification System technical Specification 8.1.1 Compliance DHAMAN-III ventilator selected and acquired the following international standards.  80601-2-12:2020 (Medical electrical equipment part 2-12 Particular requirements for basic safety and essential performance of critical care ventilators).  IEC 60601-1:2005 + Amd1:2012 (Medical electrical equipment –Part 1: General requirements for basic safety and essential performance).

  • Page 73: Setting Parameter

     Internal Battery: Battery; 14.8V / 5.2Ah Type: Lithium-ion Operating time: Approx. 2 Hours. Recharge time; 4 Hours max. Battery Life: 24 Months Approx. 8.1.6 Dimensional Detail  Main unit: W500 X D600 X H360.  Cart (Optional): W500 X D720 X H1030 All Dimensions are in mm.

  • Page 74: Alarms

    ETS % 5 ~ 70 % Pressure Support 0 ~ 60 cmH 15 cmH Trigger Sensitivity Flow 1 ~ 20 L/min 5 Lpm Volume 50 ml ~ 1200 ml 10 ml/kg (Adult) 8ml/kg (Pediatric) Rate 5 ~ 80 bpm 15 bpm 21 ~ 100 % Apnea Rate 5-80 BPM...

  • Page 75: Service

    High High Technical Error : I2C-NC High Communication Error High Leakage High Contact Service High Review High Pressure Limit High Service WARNING CAUTION Accessories 8.5.1 Standard Accessories High Pressure Air Hose High Pressure Hose Page 75 of 93 Test Lung Breathing Circuit...
  • Page 76 Test Lung Breathing Circuit Bipap Mask Flow Sensor DISS type air & O connector DISS type air & O connector Diaphragm Exhalation valve Compressor Trolley Page 76 of 93...
  • Page 77 Flex Arm Power Chords Page 77 of 93...

  • Page 78: Chapter 9 - Maintenance

    Chapter 9 – Maintenance Operator must comply with these maintenance procedures to ensure the safety and reliability of the ventilator. All the procedures in this manual are to be performed by the operator. CAUTION Please refer Chapter 1 before proceeding for Maintenance. The following table shows the periodic check point and maintenance method for DHAMAN- III ventilator system and the circuit system.

  • Page 79: Cleaning, Disinfection, And Sterilization

    Cleaning, disinfection, and sterilization ATTENTION   Always follow cleaning and disinfection procedure before connecting the machine to a new patient and after using on one patient.  Always use Registered and approved surface cleaning/Disinfection Solution, as approved by hospital’s Protocol for cleaning and Disinfection. Follow cleaning agent manufacturer’s Recommendation.

  • Page 80: Disassembling & Assembling Of Exhalation Valve For Disinfection And Cleaning

    Disassembling & Assembling of Exhalation Valve for Disinfection and Cleaning • Hold Exhalation Valve and turn it anticlockwise as per indication provided below it. • Pull out exhalation valve and remove Diaphragm. • Follow disinfection procedure to disinfect the exhalation valve and Diaphragm as per available disinfection equipment or process.

  • Page 81: Chapter 10 - Definitions

    Definition Flow Trigger 1 ~ 20 l/min The patient’s inspiratory flow that triggers the ventilator to deliver a breath. The DHAMAN-III generates a continuous and constant base flow from the inspiratory outlet to the expiratory outlet during the later part of exhalation. Base flow is essential for flow trigger.

  • Page 82: Definitions Of Alarm Parameters With Range

    P-Rise 50 ~ 200 ms Rise time- it is defined as the time with which airway pressure builds toward a preset maximum value. rapid rise time value will allow instantaneous delivery of flow at the start of the breath, resulting in an immediate rise in pressure to the pre-set level.

  • Page 83: Definitions Of Display Parameters With Unit

    Apnea Time 15 ~ 60 Sec If Cessation of breathing occurs during this time, a high priority alarm is annunciated. 10.3 Definitions of Display Parameters with unit Function Unit Definition pMean Mean Airway Pressure- Mean airway pressure typically refers to the mean pressure applied during positive-pressure mechanical ventilation.
  • Page 84 breaths. Cstat ml/mbar Static compliance Static compliance of the respiratory system, including lung and chest wall compliances. Cstat can help diagnose changes in elastic characteristics of the patient ’s lungs. Oxygen Oxygen percentage- Oxygen concentration of the delivered gas. It is measured by the oxygen cell in the inspiratory pneumatics.

  • Page 85: Chapter 11 - Accessing Utility

    Chapter 11 – Accessing Utility Utility tab provides details regarding the following • About Machine • Calibration • System & Alarm Logs • Special Keys • Sound • Display Configurations 11.1 About Machine It provides details regarding the ventilator model and its software version along with the total operating hours of the ventilator.
  • Page 86 Figure 45. Pressure Calibration 11.2.2 Proximal Calibration Before starting the calibration set proximal flow sensor position in forward direction. To Perform a Proximal Flow Sensor Calibration prior to each patient use, each time you change the sensor and anytime there are suspected volume/monitoring inaccuracies. The calibration can be performed in Standby condition.
  • Page 87 Figure 46. Proximal Sensor Calibration Completed step-2 calibration indicate in figure 46 (G). Now press ‘close & complete calibration’ button. The Message indicate if the sensor passed or failed the calibration. If the calibration fails or shows an error message, the sensor may need to be replaced. Contact the service center in case of further assistance.

  • Page 88: System/ Alarm Logs

    case of further assistance. 11.2.4 Leak test Before starting the leak test, connect the VBS with flow sensor. Blocked the flow sensor with blocker then press the start button see in figure 48 (A). Inspiratory and expiratory pressure should maintain more than 60 cmH O showing in figure 48 (B).

  • Page 89: Special Key

    11.4 Special key Here operator can find Inspiratory hold, Expiratory hold, FiO Cell Off & Bias flow functions. By continuous pressing “Inspiratory hold” key an operator can measure the plateau pressure. By continuous pressing “Expiratory hold” key an operator can measure the auto PEEP parameter.

  • Page 90: Display Configuration

    11.6 Display configuration Here operator can select any 5 monitoring parameter’s that can displays in the front screen as shown in below figure 52 (A) & (B). Figure 52. Display configuration Tests the operational integrity of the ventilator, both the electronics and pneumatics. In basic EST screen you have to enter the 5-digit security code (see below image) to access the Extended self-test menu for service engineer purpose.
  • Page 91 Figure 53. EST Screen Page 91 of 93...

  • Page 92: Chapter 12 - Warranty

    The internal battery is covered for a period of 6 months from the invoice date of the DHAMAN-III purchase. • Accessory items, not manufactured by Jyoti, supplied with the ventilator are warranted in accordance with the original manufacturer's warranty. These include (but are not limited to) items such as nebulizers, and patient circuit.

  • Page 93: Contact Details

    12.3 Summary This booklet summarizes functions and characteristics of the DHAMAN-III ventilator system. Since not all details of DHAMAN-III are included in this booklet, it is not recommended to use this booklet as the sole document for training. Page 93 of 93...
