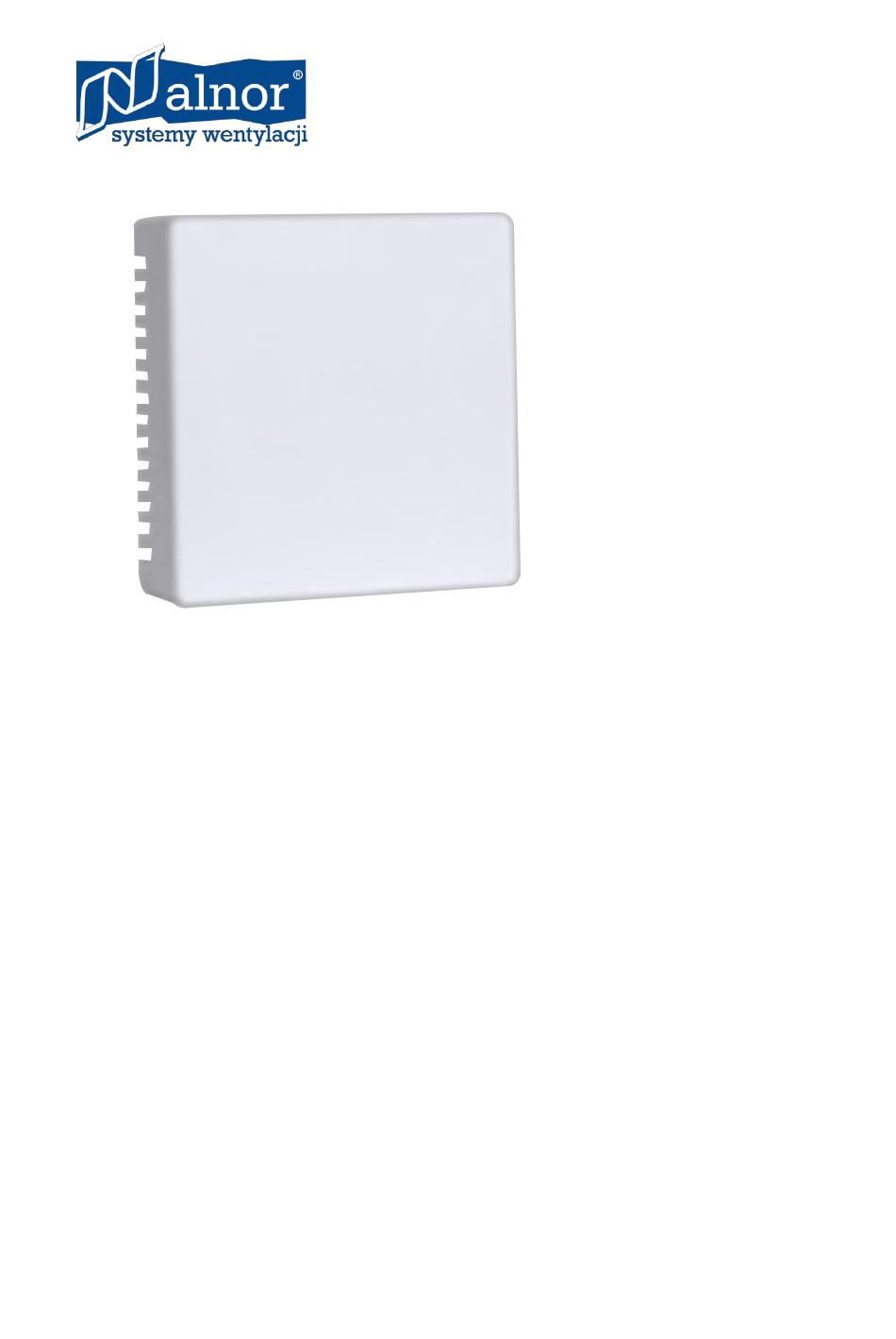

HRQ-ERGO-SENS-CO2-W
Function Introduction
Main function of HRQ-ERGO-SENS-CO2-W sensor is room CO2 concentration
detection. HRU-CONT-TPAD is needed for operation.
Technical specification
Sensor technology: NDIR infrared CO2 detection
Measurement range 400-2000ppm CO2
Maximum drift: ±2%
Resolution: 10ppm
Temperature influence: ＜0.5% FS per ° C
Response time (T90): ＜120S
Accuracy: 75ppm
Repeatability: ＜2%
Sample mode: diffussion
Power supply: DC5V±5%
Operating current : average 70mA, peak value 120mA
PWM linear output
UART: data bits 8; stop bit 1; check bit: No
Standard baud rate: 9600bps
Operating temperature: -10 to 50° C
Operating humidity: 0-95%
Advertisement
Table of Contents
Summary of Contents for Nalnor HRQ-ERGO-SENS-CO2-W
- Page 1 HRQ-ERGO-SENS-CO2-W Function Introduction Main function of HRQ-ERGO-SENS-CO2-W sensor is room CO2 concentration detection. HRU-CONT-TPAD is needed for operation. Technical specification Sensor technology: NDIR infrared CO2 detection Measurement range 400-2000ppm CO2 Maximum drift: ±2% Resolution: 10ppm Temperature influence: ＜0.5% FS per ° C Response time (T90): ＜120S...
- Page 2 Dimmensions:...
- Page 3 Connection to ERGO (from User Manual): Configuration in HRU-CONTR-TPAD: Please refer to User Manual for TPAD. Parameter setting Keep pressing the MODE button for 6 seconds, after buzzing to enter the parameter setting interface.
- Page 4 After entering the parameter setting interface, press SET button shortly to change the parameter number, every pressing will increase 1 parameter number (until number 24 then repeat again). After choosing the correct parameter number, press Mode button for short, parameter value flashes at the top right corner, at this time to change the value by UP and DOWN buttons.
