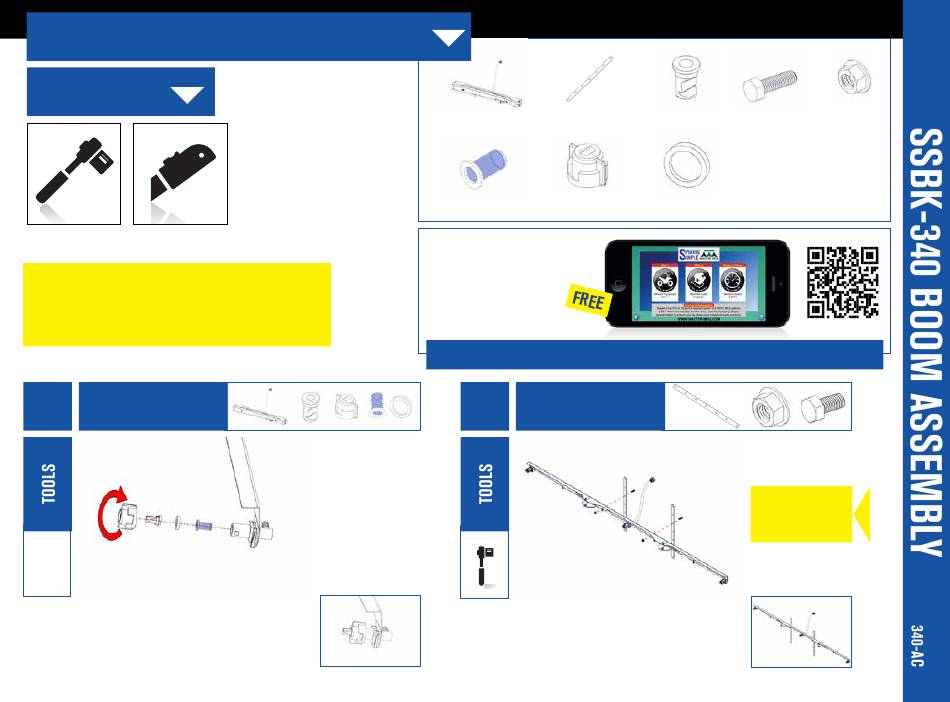

Master MFG SSBK-340 Quick Start Manual

TOOLS REQUIRED
1/2" SOCKET WRENCH KNIFE
NOTE:
IF YOU PURCHASED A COMPLETED BROADCAST SPRAYER,
FOLLOW THE SPOT SPRAYER MANUAL AND MOUNT KIT
ASSEMBLY INSTRUCTIONS BEFORE YOU COMPLETE BOOM
ASSEMBLY STEPS.
1.
PARTS
None
For each Nozzle Body, insert a Strainer, Gasket and Deflector Fan
Nozzle as shown here.
Push Nozzle Cap onto the Nozzle Body and twist to secure it.
Repeat for remaining Nozzle.
INCLUDED
COMPONENTS
10' Boom Assembly (1)
34-100009
Ball Check Strainer (3)
NS-50BC
S
PRAYING
IMPLE
MOBILE SPRAY ASSISTANT
INTEGRATE YOUR SPRAY EQUIPMENT AND ACREAGE. CALCULATE YOUR NEEDED LIQUID AND APPLICATION SPEED.
2.
Installs Nozzles, Strainers & Caps
Secure Boom Assembly to Boom Upright Brackets with 1"
Bolts and Flange Nuts. Tighten with Socket Wrench.
Use remaining 1" Bolts and Flange Nuts to install Boom
Assembly with Boom Upright Brackets to Mount Kit.
HAVING TROUBLE? CALL SUPPORT AT: 800.825.5397
Boom Upright Bracket (2) Deflector Nozzle (3)
31-100160 DF3.0
Deflector Nozzle Cap (3) Gasket (3)
G-8253051 G-G00002020
PARTS
1" Bolts (6) Flange Nuts (6)
33-100116 33-100113
Additional bolts and nuts included.
Not all will be used for assembly.
NOTE: Boom Upright
Brackets may not be needed.
Consult Mount Kit Assembly
instructions.
Attaches Boom Uprights to Boom Assembly
