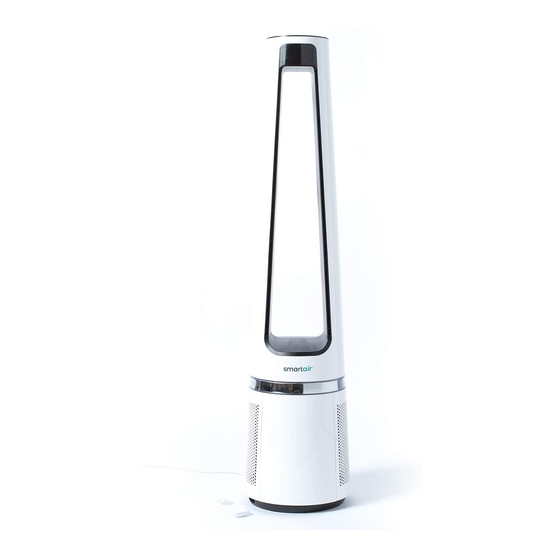

smartair AMS150-CJ User Manual

Cool+purify bladeless fan

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

User's Manual

www.highstreettv.com

and visit us for...

Table of Contents

Need help?

Do you have a question about the AMS150-CJ and is the answer not in the manual?

Questions and answers

Summary of Contents for smartair AMS150-CJ

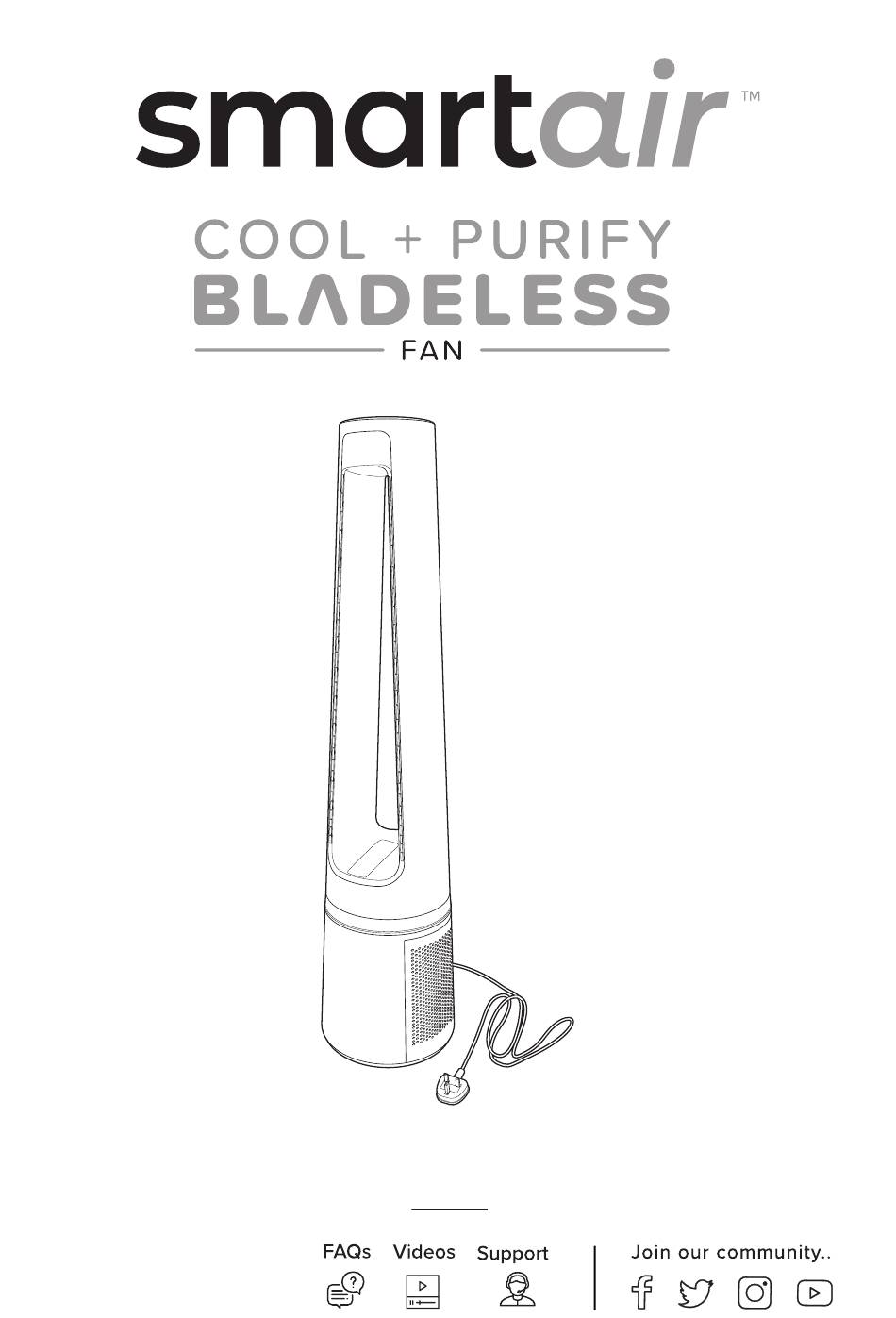

Page 1 User’s Manual Register your product at www.highstreettv.com and visit us for...
Page 2 Quick Start Guide IMPORTANT: Please read the Important Safeguards before using your appliance. Preparing 1 Metre 3 Feet IMPORTANT: Ensure that no IMPORTANT: Ensure that Ensure there is a minimum of 1 metre (3 items can block the air intake the power cable is not a trip feet) of clear space all on the back of your fan.
Page 3 Controls Plug the fan into a mains socket and turn the power on if required and fit the batteries into the remote control. CONTROL REMOTE PANEL CONTROL BUTTON FUNCTION POWER: Turn the fan ON / Turn OFF. ADJUSTMENT BUTTONS: Set wind speed / Adjust timing. OSC: Use to change the angle of rotation of the top of the fan.
Page 4: Table Of Contents
Index Topic Important safeguards Thermal safety cutout Box contents Parts of your fan Control panel & remote control icons Preparing your remote control Fitting the HEPA filters Preparing your fan Using your fan Cleaning your fan Troubleshooting Specification SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY...
Page 5: Important Safeguards
Important Safeguards When using electrical appliances, basic safety precautions should always be followed including the following: • Read all instructions while it is operating. before using this • Close supervision is product. necessary when any • When using any appliance is used by or near children or pets.
Page 6 Important Safeguards (cont...) • Cleaning and user before cleaning. maintenance must not • If the supply cord is be made by children damaged, it must without supervision. be replaced by the • Children aged from 3 manufacturer, its service years and less than 8 agent or similarly years shall only switch qualified persons in...
Page 7 Important Safeguards (cont...) on and off by the utility. • DO NOT use the appliance outdoors. • DO NOT let the cord hang over the edge of a • Use the appliance in a table or counter or let it well ventilated area.
Page 8 Important Safeguards (cont...) seek advice from the • Do not use this fan in the Customer Support Team. immediate surroundings of a bath, a shower or a • WARNING: In order to swimming pool. avoid overheating, do not cover the fan. • Unplug the appliance during cleaning.
Page 9: Thermal Safety Cutout
Thermal safety switch Your fan is fitted with an internal thermal safety switch. This will stop the fan from operating if the internal temperature exceeds the normal operating temperature. IF YOUR FAN SHUTS DOWN • Turn the fan off by removing the plug from the mains socket. • Leave the fan to cool for approximately 10 minutes or until the fan feels cool.
Page 10: Box Contents
Box Contents Bladeless Remote control HEPA Filers x2 Parts of Your Fan FRONT BACK Control panel Display Air outlet Air outlet Ambient light Air intakes Power cord Plug SAVE THESE INSTRUCTIONS- FOR HOUSEHOLD USE ONLY...
Page 11: Control Panel & Remote Control Icons
Control Panel & Remote Control Icons CONTROL PANEL REMOTE CONTROL BUTTON FUNCTION POWER: Turn the fan ON / Turn OFF. ADJUSTMENT BUTTONS: Set wind speed / Adjust timing. OSC: Use to change the angle of rotation of the top of the fan. MODE: Use to select the desired wind speed, day wind (12 speeds, indicator light is on) /...
Page 12: Preparing Your Remote Control
Preparing The Remote Control Press down on the top of the battery compartment cover and side down as far as it will go. Lift the battery compartment cover off the remote control. Insert two AAA batteries (not included) into the battery compartment. Ensure the + and –...
Page 13: Fitting The Hepa Filters
Fitting the HEPA filters Before using your fan for the first time, you will need to fit the HEPA filters. Remove the packaging from the HEPA filters. Pull the bottom edge of one of the air intake panels on the sides of the fan outwards to unlock.
Page 14 Fitting the HEPA filters (cont...) Slot the HEPA filter into the housing as shown in the diagram. Slot the prefilter back into the housing by slotting the tabs at the bottom of the filter into the holes in the base (1). Now push the top of the prefilter inwards (2) until it locks in place.
Page 15: Preparing Your Fan
Preparing Your Fan 1 Metre 3 Feet Place your fan in the room you wish to use it in with a minimum of 1 metre (3 feet) of clear space around base. IMPORTANT: Ensure that no items can block the air intake panels on the base of your fan, such as curtains, fabric covers or furniture.
Page 16: Using Your Fan
Using Your Fan Slot the plug into a mains socket and press the power switch on the socket to the on position if required. Turning the fan ON and OFF Control panel: Press the button to turn the fan on and off. Remote control: Press the button to turn the fan on and off.
Page 17 Using Your Fan (cont...) You can adjust the power of the fan when in Smartwind function by either pressing the button on the control panel or the button on the remote control. The following icons will be shown on the display: : Day wind speed : Sleep wind speed : Baby wind speed...
Page 18 Using Your Fan (cont...) Using the startup timer When in the Standby mode, press the button on either the control panel or the remote control. Use the – or + buttons on the control panel or remote control to enter the amount of hours you want before the fan starts up.
Page 19 Using Your Fan (cont...) Using the mode function Use the mode function to select from the 3 preset fan speeds. : Day wind speed : Sleep wind speed : Baby wind speed Press the button on either the control panel or the button on the remote control.
Page 20 Using Your Fan (cont...) Manually adjusting the power of the fan When the fan is running, you can change the power of the fan by pressing the – or + buttons on the control panel or the remote control. Each preset fan speed can be adjusted as shown below.
Page 21: Cleaning Your Fan
Cleaning Your Fan IMPORTANT: Before performing any cleaning or maintenance on your fan, always remove the plug from the mains socket. Remove the air intake panel, prefilter and HEPA filter from one side of the fans base as described on pages 13 and 14.
Page 22 Cleaning Your Fan (cont...) Use the vacuum brush to carefully clean the inside of the filter case on the base of the fan. Fit the HEPA, prefilter and air intake panel back into the base of the fan. Now repeat the cleaning process for the other air intake on the other side of the fan base.
Page 23: Troubleshooting
• If you still have the same problem, remove the plug from the mains socket and have the appliance serviced by an authorised service personnel only. Specification Model AMS150-CJ Rated voltage 220 - 240V~ Rated frequency 50Hz...
Page 24 Distributed by: HSTV Corby PO Box 7903 CORBY NN17 9HY Please recycle our product and packaging where facilities exist. Check with your Local Authority Model number: AMS150-CJ or retailer for recycling in your V1-09/20 country.
