Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.
Description
Parts wash in large enclosed cabinet, with highly protection from solvent splash & odor.
Pneumatic washing gun suitable for rapid cleaning.
Flourescent lighting system for bright view.
External air fan brings excellent ventilation.
Washing pressure: 70-120 PSI
Washing recirculate flux: 0.8 Liter/min.
Working area: 29*22*17.8 inch.
Solvent capacity: 4-9 L.
Air requirement: 70-120 PSI@5CFM
Size: 783*594*697mm

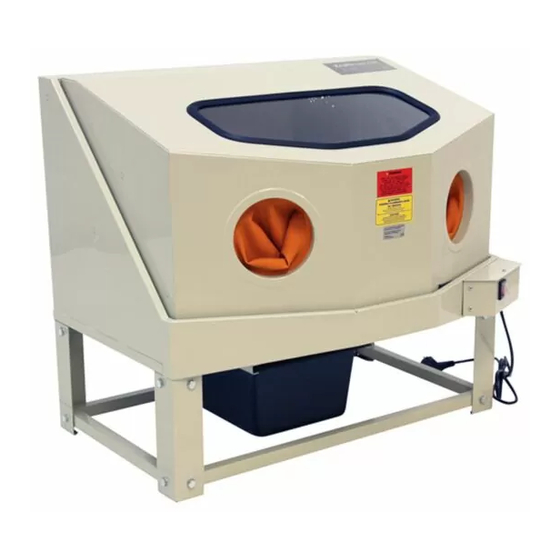

Kraftmeister Table Top Parts Washer
Cabinet
KR7665000
Advertisement
Table of Contents
Summary of Contents for Kraftmeister KR7665000
- Page 1 Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference. Kraftmeister Table Top Parts Washer Cabinet KR7665000 Description ...
- Page 2 EPW 160 Operating Instructions and Parts Manual ENCLOSED PARTS WASHER EPW 160 General Safety Information KEEP PARTS WASHER ON APPROPRIATE HEIGHT OF THE WORKBENCH. Control the working bench horizontal deviation less than 2 degree angle. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents. KEEP CHILDREN AWAY.
- Page 3 Operating Instructions and Parts Manual EPW 160 ENCLOSED PARTS WASHER EPW 160 Assembly Open cabinet cover; get 4 support legs, 1 cleaning tank, and 1 accessory bag out. Dump cabinet, connect 4 support legs with cabinet using 8 M8*16 Screws and Flat Washers. Leg Reinforces with legs using Assemble 4 8 M8*16 Screws and Flat Washers.
- Page 4 EPW 160 Operating Instructions and Parts Manual ENCLOSED PARTS WASHER EPW 160 Operation Notice Before operation, add minimum 4L solvent into the tank. The maximum solvent capacity is 9liters. You could pull the tank out to look for the water level indicator. It should be 20mm higher than the suction mouth. Connect the air compressor φ8 hose with the quick fitting at the bottom of the cabinet.
- Page 5 Operating Instructions and Parts Manual EPW 160 ENCLOSED PARTS WASHER EPW 160 Maintenance NOTE: Disconnect power and air before the maintenance. Cleaning: Please clean the Filter Screen then to assemble it back. Finally, put Web back on it. Wiring Diagram...
- Page 6 Operating Instructions and Parts Manual EPW 160 ENCLOSED PARTS WASHER EPW 160 Troubleshooting Chart Symptom (s) Possible Causes(s) Corrective Action(s) Cleaning gun only work with air, no Cleaning switch is OFF Turn it on solvent anymore. Add more solvent into the tank. Inadequate solvent Check and clean the absorption Absorption pipe is blocked...
- Page 7 Operating Instructions and Parts Manual EPW 160 ENCLOSED PARTS WASHER EPW 160 Explosive View...
- Page 8 Operating Instructions and Parts Manual EPW 160 ENCLOSED PARTS WASHER EPW 160 Parts Part No. Description Qty. Tank Filter Screen Demist Fan LED Light Hoop for light Front Connecting Rod Cabinet Cover Gloves 1 pair Gloves Hoop Back Connecting Rod Cabinet Fan Cover Cleaning Gun...
