SINOXONE SOB1400 Installation Manual

SOB1400 Manual

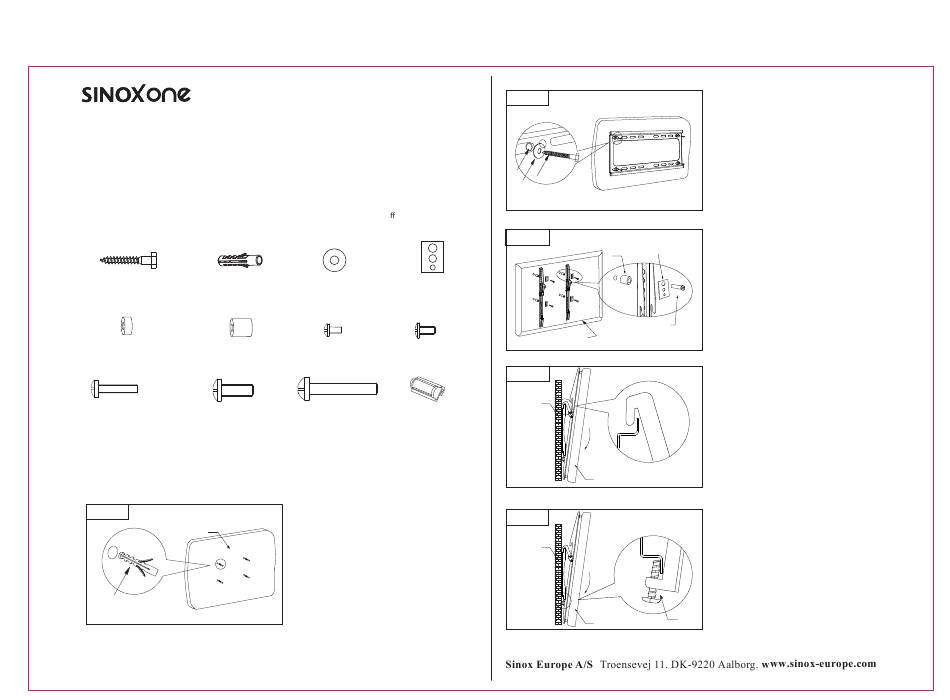

SOB1400 INSTALLATION MANUAL

1. Technical Parameter

Max VESA:400x400; Maximum load:35kg; Tilt -10 to 0 degrees.

2. Parts List

Please check the parts in the package in comparison with the following list,make sure all of
the parts are in the package. Never use defective parts, never replace part with di erent specification.
(A)M6x50 Self-tap Screw (4) (B)8x40 Plastic Anchor (4)
(E)5mm Plastic Spacer(8) (F)15mm Plastic Spacer (4)
( I )M6x30 Screw (4) (J)M8x20 Screw (4)

3. Installation and operation instructions

Note: please read the instructions carefully before installation!
STEP-1
WALL
B
(C)D6 Flat Washer (4) (D)D5,6,8 Flat Washer (4)
(G)M5x14 Screw (4) (H)M6x14 Screw(4)
( K)M8x45 Screw(4) (L)Bubble Level (1)
Step 1:
Use the wall plate as a template to
drill four holes of dia. 8mm and
40mm depth in the wall. Then wedge
four plastic anchors into the holes.
STEP-2
B
A
c
STEP- 3
D
E/F
G/H/I/J/K
TV
STEP-4
WALL
°
-10
TV
STEP-5
WALL
°
-10
Bolt
TV
Step 2:
Install the wall plate. Put the wall
plate on the wall, and then screw
four self-tap screws into each plastic
anchor through metal washer to fix
the wall plate onto the wall.
Step 3:
Install the bracket rail onto the back of
the TV: Select suitable screws from the
screw package according to the size of
the holes in the back of TV. Fix the two
hanging arms onto the back of TV by
screws into the holes.Make sure equal
height of the two hanging arms.
Step 4:
Hanging the TV onto the wall
plate, relax the hands until they
are caught hold of.
Step 5:
Tighten the screw of the two hanging
arms to make sure the TV has been
fixed firmly.
