1.8 Safety warnings for modifications ......7 5.1 Setting up the work area ........... 19 1.9 Protective equipment for working in manholes, 5.2 Putting the P360 into the channel ......20 excavations, and channels ..........7 5.3 Installation in the channel......... 21 1.10 General safety instructions ........
For information: Phone +41 41 419 51 11 Only the accessories provided and approved by For orders: enz® technik ag may be used. www.suva.ch/waswo Fax +41 41 419 59 17 Phone +41 41 419 58 51 Safe entry and working in shafts, excavations, and chan- nels (in German, French &...

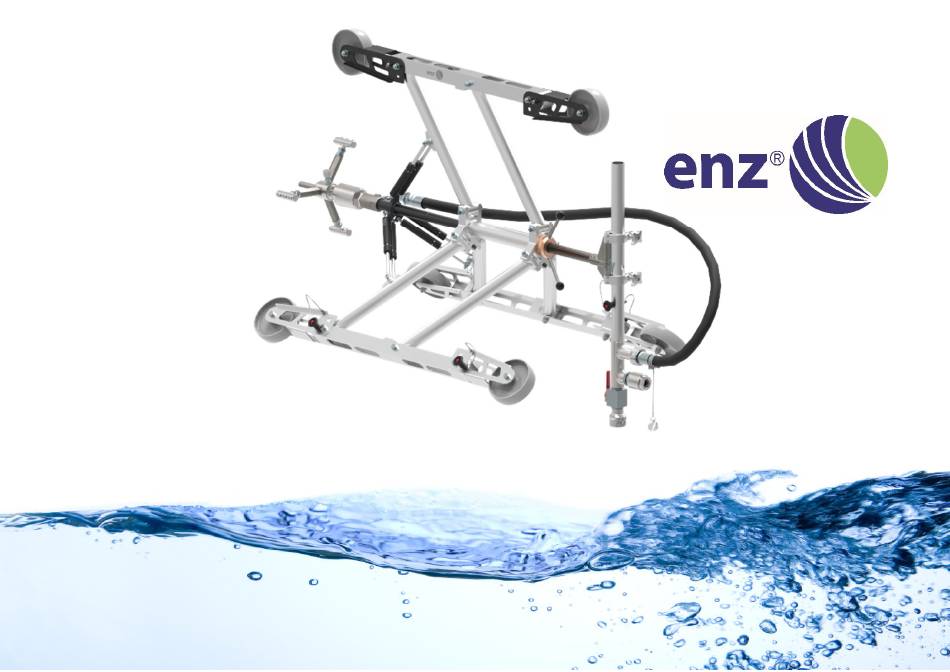

Ø23 – 118 inch. The application diameter can be easily adjusted. It can be used for round, flat, or egg- Thrust jet inserts shaped profiles. The P360 was designed to be operated with recycled water, but it can also be operated with fresh water. Cleaning inserts...
Fitting options based on enz® JetCalc CAUTION The P360's propeller has various options for fitting. Three Never change the direction of rotation! propeller arms each with three nozzle inserts plus the separate The direction of rotation prevents the noz- rotational drive have to be adjusted to one another.
For this, in the first selection window of the P360, Jet- The P360 works through the channel from the entry Calc provides a fitting option where no thrust jet inserts are manhole using the thrust part.
Operating Manual Installation Putting the P360 into the channel 3. The nozzle and the thrust part can now be lowered into the channel one after the other. To do this, secure the har- ness around the main pipe, located in the center.
The order In these profiles, the P360 is set up with the skid with the can vary depending on the space available in the channel. In black wheel carriers pointing upwards. This means that the most cases, it is best to follow the following sequence: remaining two skids are at the bottom, and aligned at a 90°...
Installation in an ovoid profile Folding the wheel carriers outward In an ovoid profile, the P360 is set up with the two skids that Press the red button on the locking pin and pull it out at the are at an angle of 90° to one another pointing upwards. The same time.
Winding out the skids Extending the propeller Turn the rotary lever in order to move the P360’s skids out. The quality of the water jet at the pipe wall Ensure that there is an approx. 50 mm gap between the skids is vital for a good cleaning result.
4 inch. CAUTION If the connecting hose touches the pipe wall during operation, the hose will be- come damaged. Do not operate the P360 with a defective connecting hose. This can cause injuries and adversely affect prop- erty, plant, and equipment.
When working inside a slightly damaged pipe, extreme caution 4. When the P360 reaches the end of the channel to be must be used. cleaned, reduce the pressure to the ambient pressure.
Removing the nozzle from the channel 7. Fold up all wheel carriers. After use, the P360 needs to be brought to the surface through the manhole. To do this, follow these steps: 8. If necessary, remove all propeller arm extensions.
