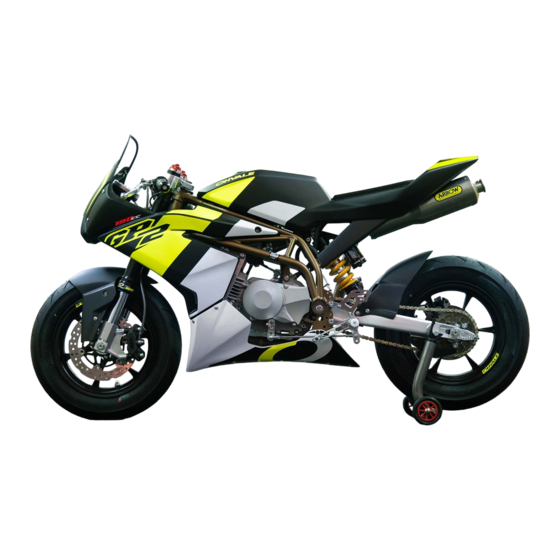

OHVALE GP-0 Use & Maintenance
  1. Manuals
  2. Brands
  3. OHVALE Manuals
  4. Motorcycle
  5. GP-0
  6. Use & maintenance

OHVALE GP-0 Use & Maintenance

Hide thumbs

Advertisement

Table of Contents

BEFORE STARTING
Use & Maintenance
Last update 01/04/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OHVALE GP-0

  • Page 1 BEFORE STARTING Use & Maintenance Last update 01/04/2021...
  • Page 2 This manual must be considered as an integral part of the vehicle and includes the most up-to-date information at the time of going to print. Ohvale S.r.l. therefore reserves the right to make changes of any kind to this manual at any time without notice and without any obligation in this regard.
  • Page 3 2. HALF-HANDLEBAR POSITION Fixing of the half-handlebars: In the case of half-handlebar bracelets as in fig. A, lay them against the upper steering plate and hold them in position • manually. • Insert the half-handlebar inside the seat of the bracelet and rotate it until obtaining the ideal position for rider’s ergonomics.
  • Page 4 3.3. ENGINE START mod. 110 AUTOMATIC To start the cold engine: • Open the fuel taps of the tank and of the carburetor by rotating the command counter clockwise. • Activate the choke control and hold it in position (follow the direction of the arrow in the photo). •...

  • Page 5: Shift Lever

    4. SHIFT LEVER The shift lever is placed Gears positions on the left side of the engine. The neutral (N) is placed before the first gear. 4.1. REVERSE SHIFT LEVER The shift lever is placed Gears positions. On the left side of the engine. The neutral (N) is placed before the first gear.

  • Page 6: Engine Oil Level Check

    7. ENGINE OIL Use engine oil 4T 10W40 only. 7.1. OIL QUANTITY (with engine completely empty) ENGINE QUANTITY ( total ) 1100 cc 110 A 850 cc 110 4S 1100 cc 160 4S 1001 190 DAYTONA 7.2. ENGINE OIL LEVEL CHECK 110 A model •...
  • Page 7 7.3. VALVE CLEARANCE The valve clearance for all engines must be: INTAKE EXHAUST 0,08 (±0.02) mm 0,10 (± 0,02) mm 0,00315 (± 0.0008) in 0,004 (± 0,0008) in Info Check the valve clearance when the engine is cold. 8. BATTERY (VERSIONE 110 A) Characteristics: ...
  • Page 8 The brake fluid must be replaced every 2 years. Maintenance operations must be carried out by authorized personnel only. The liquid used in the braking system is highly corrosive to painted parts and tires. Make sure that none of the parts mentioned come in contact with the liquid. Protect the fairings and other painted parts from even minimal contact with the liquid and follow all the warnings and instructions indicated in the package.

  • Page 9: Chain Lubrication

    9.3. BRAKE PADS RUNNING-IN Run in the brake pads as follows: • Brake gently for 4-5 laps at medium speed. Avoid any thermal shock to the new pads. • At least 90% of the pad surface must be in contact with the disc surface to consider running in completed. •...
  • Page 10 STANDARD CHAIN TENSIONER (only mod.GP-0) Place the motorcycle on the rear stand with the engine off and the gearbox • in neutral. Loosen the rear wheel pivot • After loosening the locking nut, turn the adjusting screws until the •...
  • Page 11 10.5. PINION / SPROCKET RATIO TABLE mod GP2 01/04/2021 Page 11...
  • Page 12 K 6/7 K 6/6 GP-2 GP-0 Before proceeding with the replacement of the fork springs, it is necessary to check the oil level inside the stem. Then you have to gently remove the spring, trying to lose as less oil as possible and perform the measurement indicated in the image.
  • Page 13 3 idraulica in estensione aperto 9 click da fully closed 11.4. ANDREANI FORK CARTRIDGES (OPTIONAL only for mod. GP-0) The spring preload can be set by acting on the appropriate adjusters; screwing in to increase the preload or unscrewing to decrease it.
  • Page 14 11.5. MUPO FRONT FORK (OPTIONAL) The spring preload can be set by acting on the appropriate adjusters; screwing in to increase the preload or unscrewing to decrease it. Spring preload 5.5 turns = 11 clicks (from fully open) Hydraulic compression 28 clicks (from fully closed (C engraved on the cap) Hydraulic extension...

  • Page 15: Suspension Setting

    6. Repeat the measurements of points 2 and 4 with the rider in the driving position and wearing protective clothing (F2 & R2) The differences between the measurements made with and without the rider must be respectively equal to: GP-0 GP-2 FRONT (F1-F2) = 11 15mm.

  • Page 16: Periodic Maintenance

    PERIODIC MAINTENANCE 01/04/2021 Page 16...

  • Page 17: Tightening Torques

    Half-handlebar screw 16,5 Medium thread lock Brake disc screws Brake calipers screws 18,5 Strong thread lock Sprocket stud bolts (*) M8 mod. GP-0 18,5 M10 mod. GP-2 (*) M8 mod. GP-0 Sprocket fixing nuts 18,5 M10 mod. GP-2 Medium thread lock...
  • Page 18 MC 35 100/90 12 carved – compound S MITAS rear MC 35 120/80 12 carved – compound S COLD TIRE PREASSURE for mod. GP-0 and GP-2 Front 1.2/1.4 bar (120/140 kPa) Rear 1.1/1.3 bar (110/130 kPa) Driving with excessively worn or improperly inflated tires can cause crashes resulting in death or serious injury.
  • Page 19 ADJUSTABLE PRING PRE-LOAD KIT FOR FRONT FORK ......... 12 11.3. REAR SHOCK ABSORBER OHLINS (OPTIONAL) ............13 11.4. ANDREANI FORK CARTRIDGES (OPTIONAL only for mod. GP-0) ......13 11.5. MUPO FRONT FORK (OPTIONAL) ................14 DASHBOARD ALFANO (optional) ..............14 TRIM AND SETTINGS ..................
  • Page 20 OHVALE srl - Via Evangelista Torricelli, 25 - 31021 Mogliano Veneto (TV) Tel. +39.041.5903584 - Fax +39.041.5938277 - info@ohvale.com P.IVA E C.F. 04604340267...
