Summary of Contents for Sunwayi DZ43

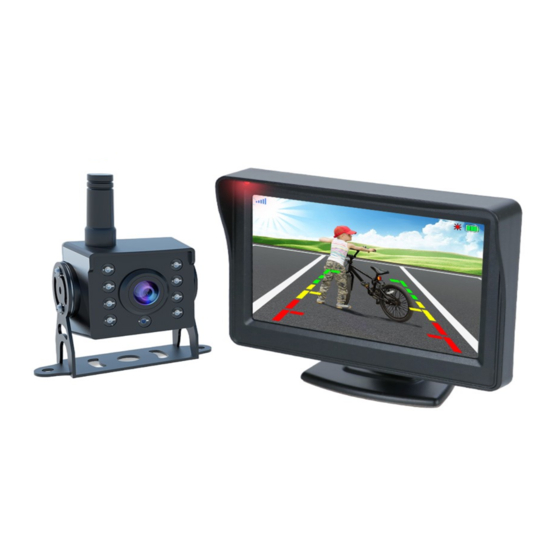

- Page 1 DZ43 Digital Wireless Camera System...
- Page 2 COMPONENTS 1. Camera Thanks for your purchasing DZ43 Digital Wireless Camera Antenna System. Please read this User Manual before using/installing it. IR bulbs’ is a Digital Wireless Camera System that can display the DZ43 Cable view behind a vehicle/trailer etc. It can also be utilised to view the inside of a trailer etc.
- Page 3 IR ‘Lights’ (Night Vision) CAMERA INSTALLATION The light sensor underneath the camera lens detects light changes and will automatically ‘Light’ turn on the IR ‘Lights’ at night, or in low light conditions, so that the image is clearer Light Sensor (B&W image).
- Page 4 Choose a suitable place on the windscreen and mount the suction cup ; with the suction lever in the released position, press the suction cup against the windscreen. Press the suction lever toward the suction cup to lock the mount. To adjust the angle of the monitor, loosen the collar on the ball joint &...
- Page 5 Parking Guideline Position Adjustment 2. Image Parameter While the monitor is showing the image, short press the middle button The parking guideline position can be adjusted [MENU/OK] to enter the main menu interface. From the 3 options. up or down, to mark the image area more realistically. Select Image Parameter, long press the [MENU/OK] button again, There are 5 levels to choose from.
- Page 6 THOSE EXCLUDED INCLUDE THOSE OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE. Supperlier shall NOT be held Dz43 Digital Wireless Camera system is intended to assist the driver, but liable for any CONSEQUENTIAL DAMAGES resulting from any failure, it doesn't relieve the driver from full responsibility for operation of the vehicle. It defect or malfunction of this product.
