CORNING Eclipse ECL-C1U Mounting Instructions

Rack-mountable 1u and 2u housing hardware

Advertisement

Quick Links

1.

Components

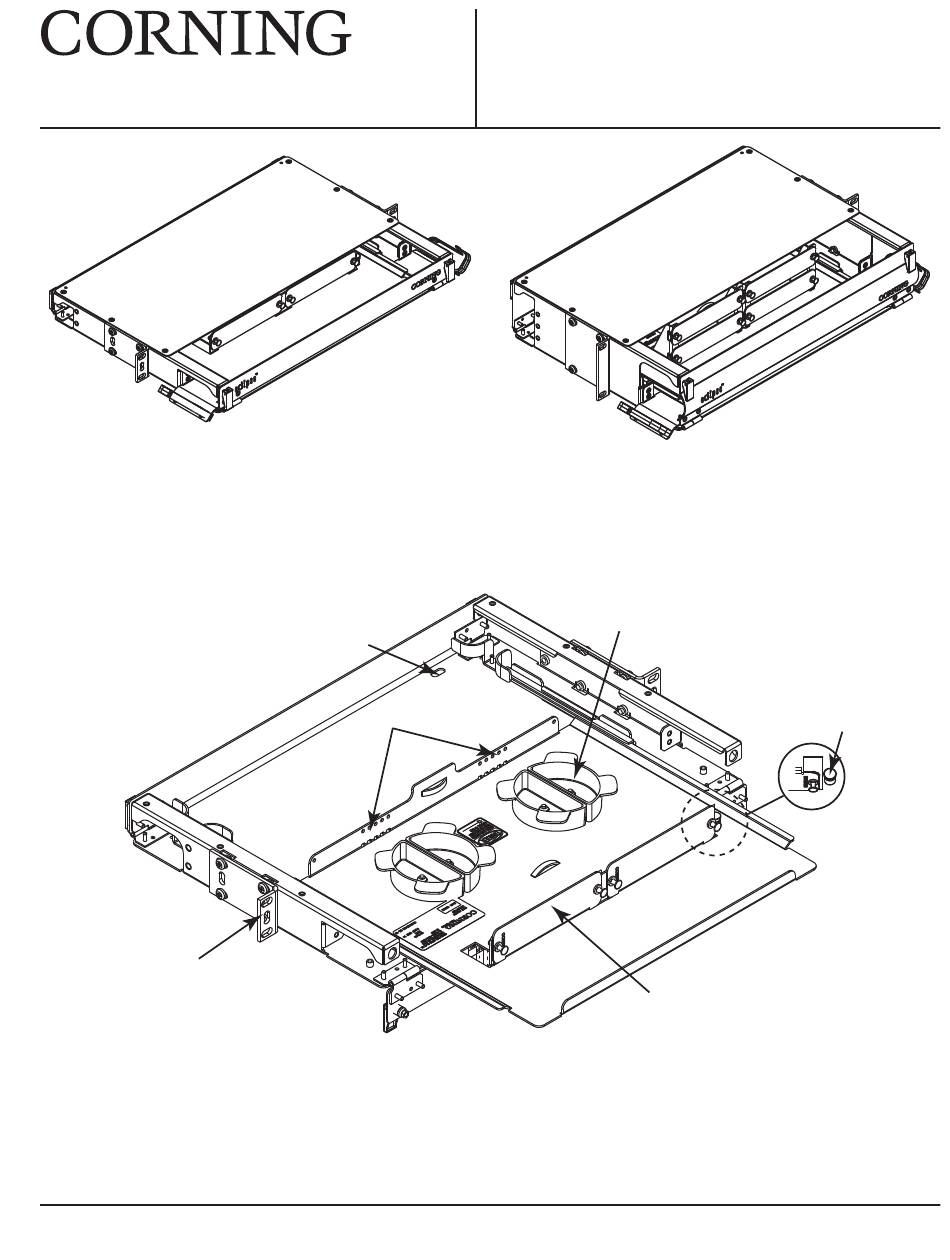

The main components of the hardware units are illustrated in Figure 2. Cable and patch cords can
enter from either side of the housing.
Mounting bracket
STANDARD RECOMMENDED PROCEDURE 003-813 | ISSUE 3 | SEPTEMbER 2015 | PAGE 1 OF 8
ECL-C1U
Rear Hole for
Drawer Stop Plunger
Cable Tie Locations
®
Eclipse
Rack-mountable
1U and 2U Housing
Hardware
003-813, Issue 3
Radius Control Guides
blank Adapter
KPA-2435
ECL-C2U
Drawer Stop Plunger
(Lift to slide tray)
Panels
TPA-4177
Figure 1
Figure 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eclipse ECL-C1U and is the answer not in the manual?

Questions and answers

Summary of Contents for CORNING Eclipse ECL-C1U

  • Page 1 ® Eclipse Rack-mountable 1U and 2U Housing Hardware 003-813, Issue 3 ECL-C1U ECL-C2U TPA-4177 Figure 1 Components The main components of the hardware units are illustrated in Figure 2. Cable and patch cords can enter from either side of the housing. Radius Control Guides Rear Hole for Drawer Stop Plunger...
  • Page 2 Product Installation Unpacking Stubbed Units If you are installing a stubbed unit, follow the directions provided with the shipping container to remove the stubbed unit from its packaging. Place the unit on a work surface to perform the preliminary work before mounting the unit into a rack.
  • Page 3 Securing the Cable The cable may be strain-relieved using the Universal Cable Clamp (UCC) (see Section 2.5.1) or cable ties (see Section 2.5.2). CAUTION: Recommend the use of safety glasses (spectacles) conforming to ANSI Z87, for eye protection from accidental injury when handling chemicals, cables, or working with fiber. Pieces of glass fiber are very sharp and have the potential to damage the eye.
  • Page 4 2.5.2 Using Cable Ties Strength Member If at least 10 m (33 ft) of outside plant cable is routed within an Yarn environmentally controlled building U-shaped Present) Washer where temperature fluctuation is Flat Washer minimal, securing the cable sheath is adequate strain-relief.
  • Page 5 Installing Preconnectorized Cable WARNING: Never look directly into the end of a fiber that may be carrying laser light. Laser light can be invisible and can damage your eyes. Viewing it directly does not cause pain. The iris of the eye will not close involuntarily as when viewing a bright light. Consequently, serious damage to the retina of the eye is possible.
  • Page 6 Installing and Splicing Pigtails KPA-2441 Figure 8 Step 1: Remove the blank panels from the unit and replace with connector panels (purchased separately). Step 2: Preroute feeder cable around radius control guides (Figure 8 boxed inset) to determine length needed for splicing in the splice tray. Step 3: bring feeder cable and splice tray to a work surface and splice feeder cable to pigtails as described in the instructions provided with the splice tray.
  • Page 7 Step 1: Remove the blank panels from the unit and replace with connector panels (purchased separately). Step 2: Route buffer tube around the radius control guides (Figure 9 boxed inset) to determine length required for buffer Tube Fanout (bTF) body (purchased separately).
  • Page 8 A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks. All other trademarks are the properties of their respective owners. Corning Optical Communications is ISO 9001 certified. © 2009, 2012, 2015 Corning Optical Communications.

This manual is also suitable for:

Eclipse ecl-c2u
