MODEL: MW589

6.0A

Angle Grinder 4-1/2 in. (115 mm)

Operator's Manual

SAVE THIS MANUAL

You will need this manual for safety instructions, operating procedures and warranty.

Put it and the original sales receipt in a safe dry place for future reference.

If you have a question or experience a problem with your purchase,

please contact us via E-mail service@masterworkstool.com

Table of Contents

Need help?

Do you have a question about the MW589 and is the answer not in the manual?

Questions and answers

Summary of Contents for Master WORKS MW589

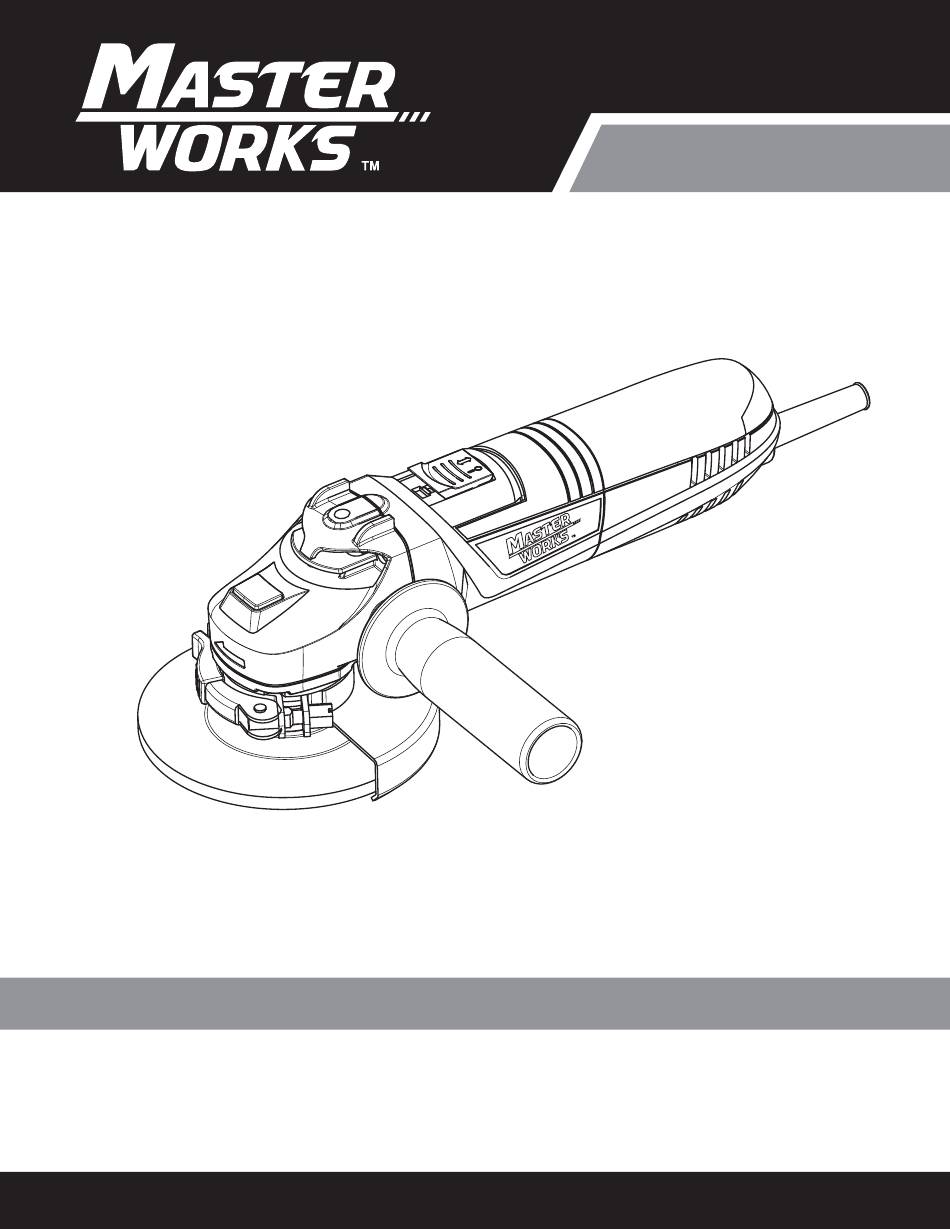

Page 1 MODEL: MW589 6.0A Angle Grinder 4-1/2 in. (115 mm) Operator’s Manual SAVE THIS MANUAL You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.
Page 2: Table Of Contents
PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS Rating: 120V,60Hz,AC Amperes: 6.0AMP Speed: 12000/min(no load) Grinding wheel: 4-1/2 inch (115mm) Spindle thread: 5/8" 4 lbs Weight: TABLE OF CONTENTS Introduction ................................2 General Safety Rules ............................3-4 Specific Safety Rules ..............................4 Symbols ..................................5 Specifications ................................
Page 3: General Safety Rules
GENERAL SAFETY RULES Dress properly. Do not wear loose clothing or jew- WARNING: elry. Contain long hair. Keep your hair, clothing, and Read and understand all instructions. Failure gloves away from moving parts. Loose clothes, jew- to follow all instructions listed below, may result in elry, or long hair can be caught in moving parts.
Page 4: Specific Safety Rules
GENERAL SAFETY RULES Service When servicing a tool, use only identical replace- ment parts. Follow instructions in the Maintenance Tool service must be performed only by qualified section of this manual. Use of unauthorized parts or repair personnel. Service or maintenance performed failure to follow Maintenance Instructions may create by unqualified personnel could result in a risk of injury.
Page 5: Symbols
SYMBOLS Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. s t l Amperes Current Minutes Time Alternating Current...
Page 6: Specifications
ELECTRICAL Double Insulation Extension Cords Double insulation is a concept in safety in electric power When using a power tool at a considerable distance from tools, which eliminates the need for the usual three-wire a power source, be sure to use an extension cord that has grounded power cord.
Page 7: Unpacking
UNPACKING Instructions Packing List Your angle grinder has been shipped completely Angle Grinder with Guard assembled. Grinding Disc Carefully remove the tool and accessories from the Side Handle box. Case Make sure that all items listed in the packing list are Operator’s Manual included.
Page 8: Features
FEATURES Clutch Before using the angle grinder, familiarize yourself with all operating features and safety requirements. However, do The angle grinder is equipped with an automatic clutch. It not let familiarity with the tool make you careless. also the stress load on the motor and gearing. If the clutch is tripped, switch the angle grinder off immediately and solve the problem.
Page 9 FEATURES GUARD CLAMP CLAMP DISC SCREW FLANGE SWITCH SPINDLE LOCK BUTTON WRENCH SIDE HANDLE GRINDING WHEEL Fig. 1...
Page 10: Assembly
ASSEMBLY WARNING: The angle grinder should never be connected to a power supply when you are assembling parts, making adjustments, cleaning, performing main- tenance, or when the tool is not in use. Discon- necting the tool will prevent accidental starting that could cause serious injury.
Page 11 ASSEMBLY • To install optional flap disc (sold separately) : tighten( clockwise ) Place the flap disc over the spindle. Thread the clamp nut on the spindle with the flat side of the nut facing up. Fit the raised, small diameter portion of the clamp nut into the hole in the wheel and finger tighten.
Page 12: Adjustments
ADJUSTMENTS WARNING: The angle grinder should never be connected to a power supply when you are assembling parts, √ making adjustments, cleaning, performing main- tenance, or when the tool is not in use. Discon- necting the tool will prevent accidental starting that could cause serious injury.
Page 13: Operation
OPERATION WARNING: Always wear safety goggles or safety glasses with side shields when operating this tool. Failure to do so could result in dust, shavings, or loose particles being thrown into your eyes, resulting in possible serious injury. DANGER: Never attach a wood cutting or carving blade of any type to this angle grinder.
Page 14: Maintenance
MAINTENANCE Replacing the Guard WARNING: See Figure 9. When servicing use only identical Ridgid replace- After extended use, the guard may wear and need replacing. ment parts. Use of any other parts may create a If you drop your grinder and damage the guard it may also hazard or cause product damage.
Page 15: Exploded View
EXPLODED EXPLODED VIEW VIEW EXPLODED EXPLODED VIEW VIEW...
Page 16: Parts List
PARTS PARTS LIST LIST PARTS PARTS LIST LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the trim router. Any attempt to repair or replace electrical parts on this trim router may create a safety hazard unless repairs are performed by a qualified technician.
