ECLISSE Indoor

PROFILE PL200-I

User Instructions

①

Table of Contents

Need help?

Do you have a question about the ECLISSE INDOOR PL200-I and is the answer not in the manual?

Questions and answers

Summary of Contents for PLUSLITE ECLISSE INDOOR PL200-I

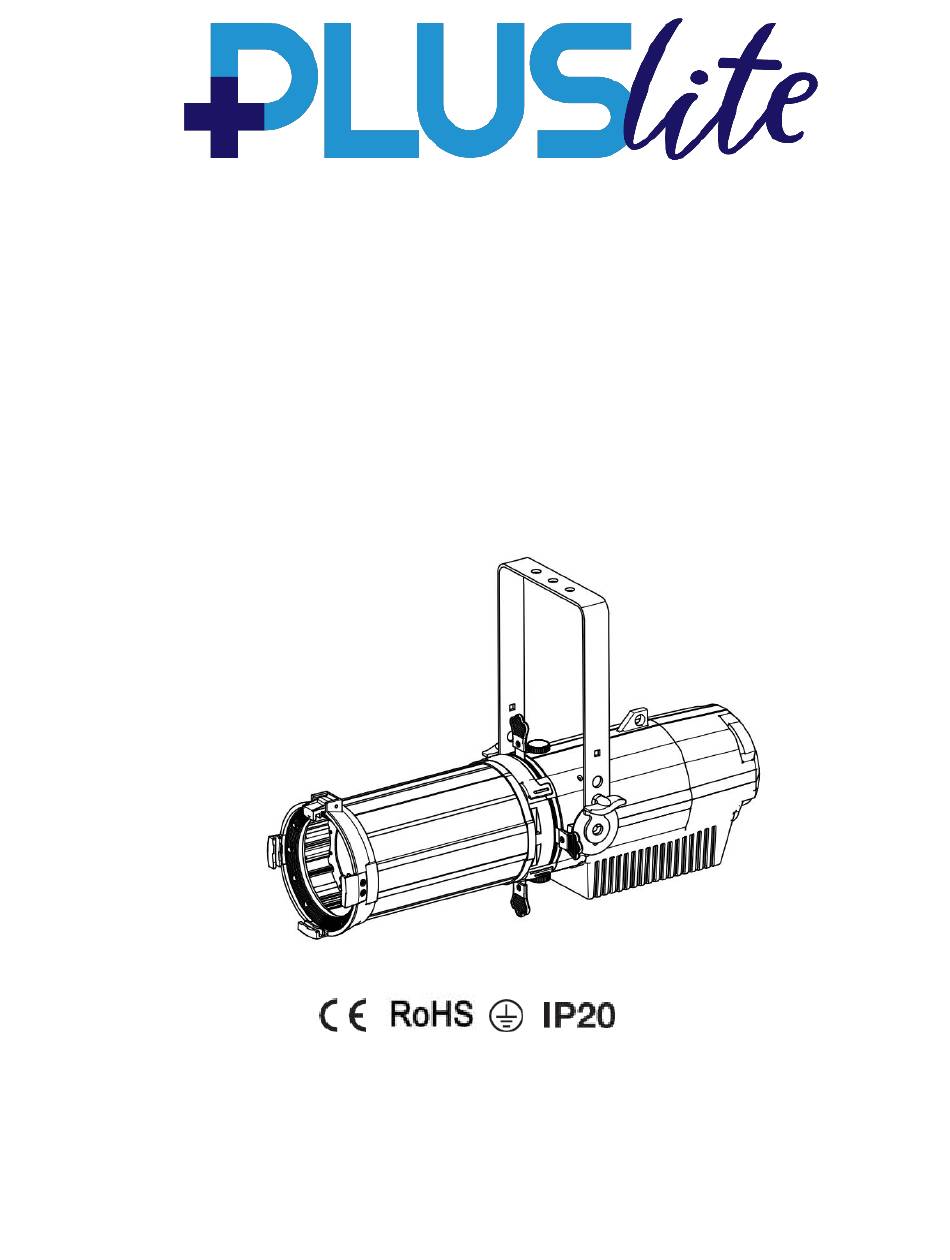

Page 1 ECLISSE Indoor PROFILE PL200-I User Instructions ①...
Page 2: Safety Instructions
ECLISSE INDOOR-PL200-I SAFETY INSTRUCTIONS CAUTION Becareful with your operations.With a dangerous voltage you cansuffer a dangerous electric shock when touching wires! This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.
Page 3 ECLISSE INDOOR-PL200-I Unpacking Thank you for choosing ECLISSE INDOOR PL200I. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs.
Page 4: Features And Specifications
ECLISSE INDOOR-PL200-I FEATURES & SPECIFICATIONS Feature： *1*200W COB LED (Warm white 3200K) *50,000 hours life time and low power consumption *Color Rendering Index(CRI): Ra≥90 *Optimized high definition optical system for improved photometric performance and field uniformity *Projector-quality, high contrast aspheric lens *Glass asphericalr that removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light *Beam Angle: 12°to 30°...
Page 5: Dmx-512 Control Connections
ECLISSE INDOOR-PL200-I DMX-512 CONTROL CONNECTIONS Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors.
Page 6 ECLISSE INDOOR-PL200-I COMMON 1:Ground DMX+ 2:Data(-) 3:Data(+) DMX- DMX Output DMX Input 3-Pin XLR 3-Pin XLR DMX512 Out DMX512 In 3-Pin XLR 3-Pin XLR 120Ω Pin3 Pin2 For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator.
Page 7: Product Feature
ECLISSE INDOOR-PL200-I Product Feature  2 kinds of running model  External control mode (Slave model) DMX 512 controller control(2 kinds channel modes)  Master/salve model control (auto match the signal from controller and the Master  light, no need to set by menu) ...
Page 8: Operation Status
ECLISSE INDOOR-PL200-I Main Menu 6.1 Main Menu Reverse Display Running Status Vice Menu Button 6.2 Operation Status Mode Display Description DMX Mode Axxx “A”stand for standard channel mode,， “xxx”stand for ID address Dxxx “D”stand for basic channel mode，“xxx”stand for ID address Manual S-MC...
Page 9: Dmx Settings
ECLISSE INDOOR-PL200-I Vice Menu DMX Settings Menu Operation Option Description DMX Start Address Press key of “OK” enter to 1~512 edit mode, press “UP” and ”down” to edit the DMX address DMX Profile Press key of “OK” change Standard Channel Mode the DMX channel mode Basic Channel Mode Single Mode Choice...
Page 10 ECLISSE INDOOR-PL200-I Settings Menu Operation Option Description Touch Screen Calibration Touch screen adjust Dimmer Frequency Change 500HZ dimmer …… Each 100HZ for increase frequency or decrease 25000HZ Dimmer Curve Change dimmer Standard curve Incandescent Linear Quick Over Temperature Temperature 45~95 Each 5 for increase or setting decrease...
Page 11: Dmx Channels
ECLISSE INDOOR-PL200-I DMX CHANNELS Standard channel mode(2CH) Chann Data Function Remark 0~255 Dimmer 0~10 No function 11~25 Strobe speed （255 is the fastest） Basic channel mode(1CH) Channel Data Function 0~255 Color 1 ⑪...
Page 12 ECLISSE INDOOR-PL200-I Spectrogram /CRI Ra≥90 Ra≥95 ⑫...
Page 13: Operation & Specifications
ECLISSE INDOOR-PL200-I OPERATION & SPECIFICATIONS · The ECLISSE INDOOR is an LED profile light for on-site decoration purpose. · Don't turn on the fixture if it's been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature.
Page 14 ECLISSE INDOOR-PL200-I Please ensure that the led profile spotlight is hung using the appropriate "C" clamp or half cheeseboro. A safety chain or cable should also be used as a secondary point of holding the fixture in case the clamp comes loose. Never hang the fixture without a safety chain or cable. There is an eye-bolt on the back of the fixture to which the safety chain or cable can threaded through and then hung from the secondary point.
Page 15: Cleaning And Maintenance
ECLISSE INDOOR-PL200-I Cleaning and maintenance Now ignoring maintenance and cleaning is very good way of creating problems "down the road" and many companies and installations do just that. However the net result is, no matter what the fixture, premature failure! Changing the oil in a car, most people do on a regular basis.
Page 16 RDM/DMX, Auto run and Master/Slave 1/2CH DMX Channels Manual zoom 25-50° Weight: 11.4Kgs Dimension: 820(D)*330(W)*315(H)mm Warranty: 2 Year Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. https://www.piu39av.com/pluslite-lighting/ ⑯...
