BILL CHANGER
Installation Guide
Model: BC500
BILL CHANGER ASSEMBLY
1._Specifications:
(1) Dimension: (H) 24¾ (W) 7 2/16 (D) 11½
Shipping Dimensions: (H) 30
(W) 13
(D) 17
(2) Weight: Empty 39 lbs. Shipping Weight: 42 lbs.
(3) Power Requirement: AC 115v 60Hz
(4) Operating Temperature: 48 F to 120 F
(5) Operating Humidity: 30% to 85% RH
(6) Installation Location: Indoor
(7) Coin Capacity: Approx. 500 coins
(8) Counting Method: Two Optical Sensor

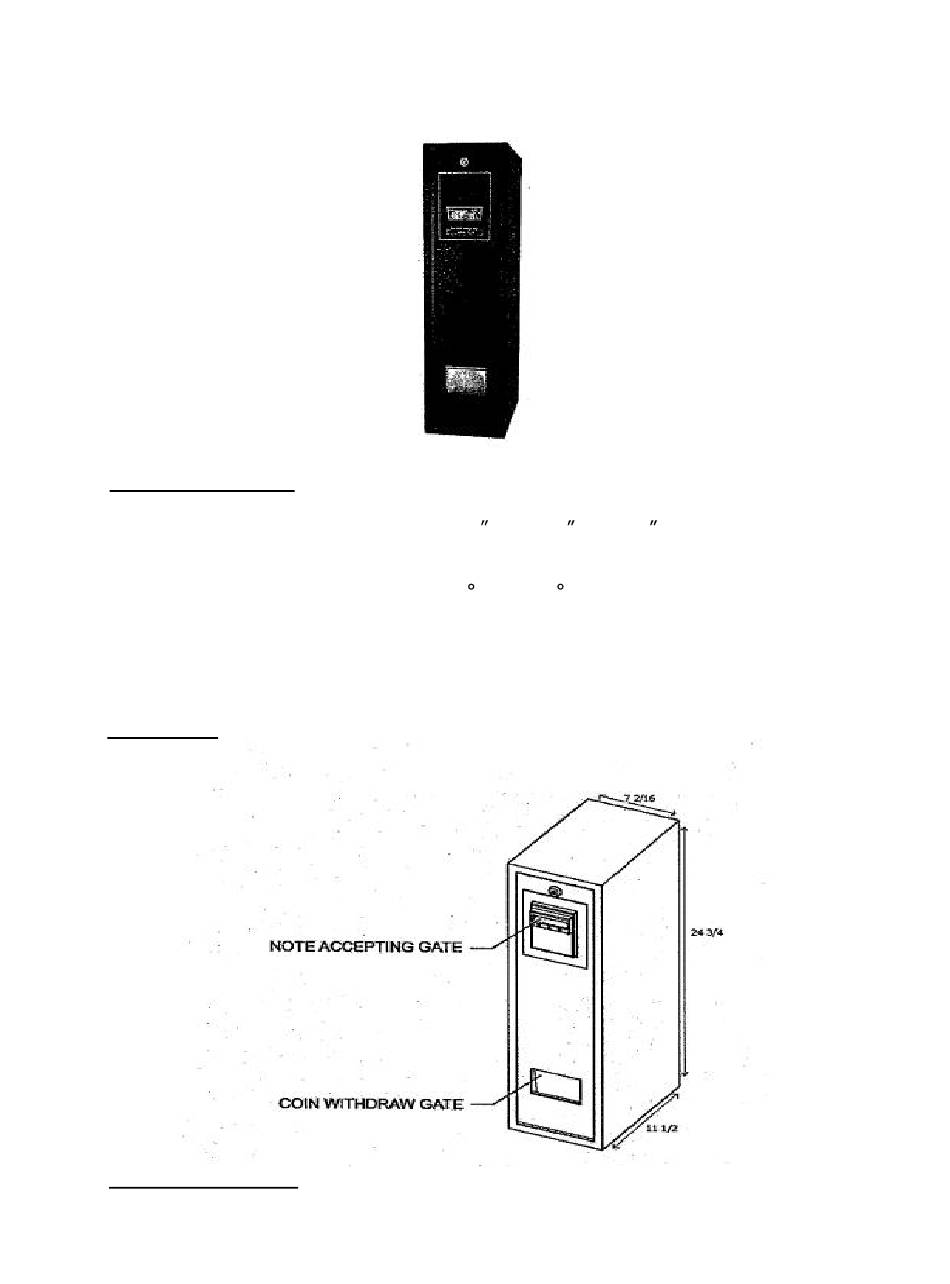

2. Panel:
3. Subassembly:
