Austro Engine AE300-Wizard User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Electric/Electronic

Dept.:

These technical data and the information contained therein are the property of Austro

Engine GmbH and may not be reproduced either in full or in part or passed on to a third

party without written consent from Austro Engine GmbH.

This text must be included in any full or partial reproduction of this documentation.

Wiener Neustadt, 2019-09-03

Date:

Austro Engine GmbH

Author:

Rudolf-Diesel-Straße 11

2700 Wiener Neustadt

AUSTRIA / EUROPE

Revision:

AE300-Wizard

User Guide

Type:

AE300-Wizard

User Guide

E4.08.09

Document No.:

Revision:

Page:

1 of 89

Table of Contents

Need help?

Do you have a question about the AE300-Wizard and is the answer not in the manual?

Questions and answers

Summary of Contents for Austro Engine AE300-Wizard

Page 1 Engine GmbH and may not be reproduced either in full or in part or passed on to a third party without written consent from Austro Engine GmbH. This text must be included in any full or partial reproduction of this documentation.
Page 2: Table Of Contents
.NET Environment ................17 4.3.2 Driver for PCAN-Adapter (USB/CAN) ............18 4.3.3 AE300-Wizard and Visual C++ Runtime Library ........18 Installation for Evaluating Log Files ............... 18 Upgrade Installation ................19 Download Upgrade Package ................. 19 Remove Previous AE300-Wizard Version ............19...
Page 3 Document No.: AE300-Wizard Revision: 3 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Overview and First Steps ..............20 CAN Connection ..................20 Starting the AE300-Wizard ................20 Setting up the Aircraft .................. 20 6.3.1...
Page 4 Live View – Importing Live View Recordings ........65 8.3.4.3 Live View – Analyzing Live View Recordings ........66 8.3.5 Live View – Working with Austro Engine Support ........67 8.3.5.1 “LiveView-Config” Files ..............67 8.3.5.2 Live View Data saved during Measurements ........67 IQA Codes ....................
Page 5 11.1.5 Fifth Step (optional) – IQA Data File ............87 11.2 Sending Maintenance Information ..............87 Appendices ..................88 12.1 Error Messages of the AE300-Wizard ............. 88 12.2 Details – Freeze Frame ................88 12.2.1 Combined Engine Status ............... 88 12.3 Details –...
Page 7 E4.08.09 Document No.: AE300-Wizard Revision: 7 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Revision History Change Description Author of Date Rev. Change Initial document, first draft. Mannsberger 2009-03-19 Update to include Wizard V1051 functionality...
Page 8 Copyright © 2019, Austro Engine GmbH Dept.: Type: Abbreviations Abbreviation Designation act. active Austro Engine .ae3 Extension of AE300-Wizard files (compressed and encrypted) AE300 Austro Engine 300, marketing name of engine E4 Authorization Request Atmos. Atmospheric binary BATT Battery Boost Pressure Actuator Controller Area Network;...
Page 9: Table 1 Abbreviations And Definitions
E4.08.09 Document No.: AE300-Wizard Revision: 9 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Abbreviation Designation Kl31 Engine ground Kl50 Starter control KWP2000 Keyword Protocol 2000 (Diagnostic Protocol) KWPonCAN KWP2000 on the CAN Bus...
Page 10: Preface
Subject The AE300-Wizard is a diagnostic tool required to perform both maintenance in the field and serial production tasks on the Austro Engine (AE) AE300 series engine (E4, E4P) and its elec- tronic engine control system (EECS).
Page 11: Purchased Parts Package
Purchased Parts Package The package contains the following parts. The CD containing the AE300-Wizard program installer, Visual C++ 2010, .NET environment version 4.0 and the CAN driver for the AE300-Dongle. The AE300-Dongle connects the EECU (9-pin CAN connector) to your PC (USB connector).
Page 12: Trademark Notice
Type: Trademark Notice 1.7.5 Austro Engine and AE300-Wizard are trademarks or registered trademarks of Austro Engine Corporation and/or its affiliates. All Microsoft trademarks are used under license and are trademarks or registered trademarks of Microsoft. PCAN is a trademark or registered trademark of the PCAN Corporation.
Page 13: Limitations

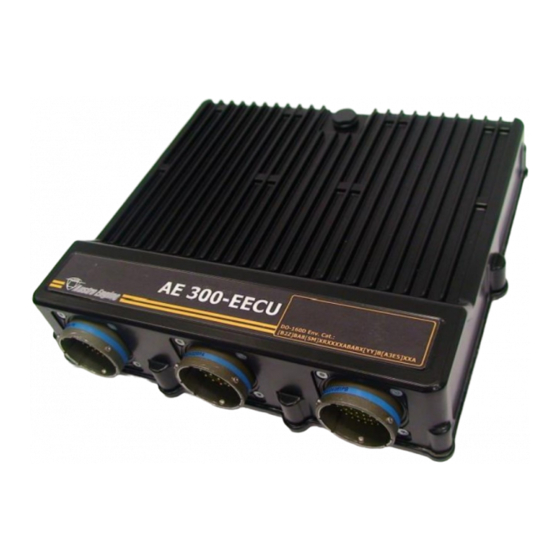

 Use only with an Austro Engine EECU (part number E4B-92-000-000).  Use no other device parallel to the AE300-Wizard to maintain the EECU firmware.  The AE300-Wizard is only available in English (The AE300-Wizard may be installed on a system with a different system language, but the GUI will remain in English.
Page 14: Requirements
AE300-Wizard distribution CD. AE300-Wizard 3.1.5 It is recommended to use the latest version of the AE300-Wizard software. Use at least ver- sion 1.3.4.xxx. To support Flash Container of SW Version VC33.6 use at least the AE300- Wizard software version 1.3.3.xxx.
Page 15: Hardware
CAN bus of the EECU. It connects to a USB port (at least USB 2.0) of the PC sys- tem on one end and provides a CAN bus male connector on the other. Additionally this adapter also acts as a license dongle to enable the AE300-Wizard in one of two operating modes defined by the license: AE-order number “IPEH-002021-M CAN-USB Adapter M”...
Page 16: Aircraft
Document No.: AE300-Wizard Revision: 16 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Aircraft Ground Power Supply 3.3.1 For diagnostic sessions to be performed while the engine is NOT running it is important to avoid draining the aircraft battery.
Page 17: New Installation
New Installation Pre-Conditions Austro Engine provides a distribution CD of the AE300-Wizard for initial installation of the tool, the required runtime libraries and device drivers. This CD also includes the folder “Doc- umentation” which contains the AE300-Wizard User Guide (this document) and a Power Point presentation as well as predefined practical exercises for self-study purposes.
Page 18: Driver For Pcan-Adapter (Usb/Can)
You only have to perform the following steps:  Install .NET environment (see chapter “4.3.1 .NET Environment” on page 17), and  Install the AE300-Wizard and the Visual C++ runtime library (see chapter “4.3.3 AE300-Wizard and Visual C++ Runtime Library” on page 18).
Page 19: Upgrade Installation
Type: Upgrade Installation Users with a working installation of an older AE300-Wizard release who wish to perform an upgrade rather than a new installation can do so, using an MS-Installer (upgrade) package which is downloadable from the Austro Engine homepage: Data\AE_Wizard.msi...
Page 20: Overview And First Steps
For details see chapter “7 Modes of Operation” on page Setting up the Aircraft For safety reasons certain functions of the AE300-Wizard are available only in a safe context (e.g. aircraft on the ground, engine not running etc.). Below is a summary of those consid- erations.
Page 21: Alternator
AE300-Wizard Revision: 21 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: 6.3.2.3 Alternator For aircraft equipped with alternator regulators part number E4A-91-100-000 (“old regula- tors”): If the engine is not running (both engines not running in case of DA42), the alternator regu- lator is sensing a battery voltage below 29V and therefore excites the alternator to produce an output voltage.
Page 22: Start Of Diagnostic Session
Dept.: Type: Start of Diagnostic Session After the AE300-Wizard has started it will initialize and try to detect the (license) type of USB/CAN adapter used. If no USB/CAN adapter could be found the following dialog-box will be displayed: In this case no interactive diagnostic session with an ECU will be possible After accepting this dialog box the AE300-Wizard will be activated in its “offline”...
Page 23: Saving Of Data During A Diagnostic Session
“Event Logs”, “Data Logs” or IQA data on the PC system for later offline analysis. Offline analysis doesn’t require a USB/CAN-adapter dongle Default location for saved data is: “My Documents\Austro Engine\AE300-Wizard” Data is organized by folders like: “Engine_Log”, “Flash”, “HexDump”, “LiveView”, etc.
Page 24: Saving Screenshots From Data Displays
JPG to avoid compression artifacts which will reduce readability of small letters. End of Diagnostic Session After finishing diagnosis, downloading and saving maintenance data the logical connection to the EECU should be terminated by pressing the Disconnect ECU button. After that the AE300-Wizard may be closed.
Page 25: Modes Of Operation
Dept.: Type: Modes of Operation Depending on the license type the AE300-Wizard offers one of three possible operating modes and their set of functions. Offline Mode This mode of operation, does not require a USB/CAN adapter dongle as described in chapter “6.4 Start of Diagnostic Session on page 22”.
Page 26: Live View Tab
Switch from standard to expert mode to gain access to over 150 internal ECU-signals Enable an auxiliary signal, which might be used on request by Austro Engine support personal. It allows to select one ECU-internal signal per ECU which is not on the drop- down list and has to be configured by its hex address.
Page 27: Maintenance Mode
Revision: 27 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Maintenance Mode This is the standard mode of operation. Suitable for routine diagnostic and maintenance tasks to be performed by engineers while trouble shooting or servicing the AE300 series en- gine.
Page 28: Engine Logs Tab
AE300-Wizard Revision: 28 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: 7.2.1.2 Engine Logs Tab Buttons to: Save ECU/Engine ID, contents of Fault Code Memory and engine operating statistics into one engine log file ( Save Engine Log )
Page 29: Primary Display - Right Page
Switch from standard to expert mode to gain access to over 150 internal ECU-signals Enable an auxiliary signal, which might be used on request by Austro Engine support personal. It allows to select one ECU-internal signal per ECU which is not on the drop- down list and has to be configured by its hex address.
Page 30: Statistics Tab
30 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Timers which are updated only once during initial connection to the ECU Total ECU power on time (the accumulated time this ECU has been powered up, regard- less of the engine running or not –...
Page 31: Fault Details Tab
AE300-Wizard Revision: 31 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Buttons to: Switch between table and bar graph display ( Show/Hide Chart ) 7.2.2.3 Fault Details Tab Provides details about the Fault Code Memory entries which have been selected on the left page: ECU status at time of failure (i.e.
Page 32: Primary Display - Left Page
Document No.: AE300-Wizard Revision: 32 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Primary Display – Left Page 7.3.1 7.3.1.1 Update SW Tab Display of progress information during SW updates (flash progress information) Display of status and/or result of the SW update (“success”, “failure” statement or error information and recommended further steps).
Page 33 Revision: 33 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Buttons to: Download the IQA codes currently stored in ECU-A and ECU-B ( Read All Cylinders ) Save IQA data which has been downloaded from the ECUs into a file together with en-...
Page 34: Diagnostic Procedures
This chapter details the most important diagnostic steps to be performed during routine maintenance or fault finding. Note: The following procedures assume, that both the AE300-Wizard and the aircraft have been set up and are connected as described in chapter “6 Overview and First Steps” on page Analyzing Operational Data...
Page 35: Operational Statistics
AE300-Wizard Revision: 35 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Operational Statistics 8.1.2 Provides statistical information about the operation of the engine over its total life time. 8 predefined physical parameters are sampled once per second and it is accumulated how many hours the engine has been operated in one of 8 ranges of these specified physical pa- rameters.
Page 36: Bar-Graph Format
E4.08.09 Document No.: AE300-Wizard Revision: 36 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: 8.1.2.2 Bar-Graph Format Steps: 1) Connect to ECU 2) Select «Engine Logs» tab 3) Click on Read Statistics button 4) Click on Show/Hide Chart for ECU A 5) Click on Show/Hide Chart for ECU B 6) Select the physical parameter (e.g.
Page 37 E4.08.09 Document No.: AE300-Wizard Revision: 37 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Gearbox oil temperature Battery voltage Atmospheric pressure Power lever position...
Page 38: Routine Maintenance
AE300-Wizard via the standard e-mail systems used on the internet. The “new” AE300-Wizard is able to read and interpret the “old” file format (saved by AE300- Wizards before V1.2.0.xxx), but it will save only the “new” files, which cannot be read by the...
Page 39: Engine Log File
1) Connect to ECU 2) Select «Engine Logs» tab 3) Click on Save Engine Log button 4) Select file name 5) Press Save button 6) A compressed and encrypted engine log of the name “Engine_Log_YYYYMMDD.ae3” is available in “My Documents\Austro Engine\AE300-Wizard\HexDump”.
Page 40: Event Recorder File
Analysis Using the Engine Log” on page 49 for details on fault finding using the event re- corder. The following steps will ask the AE300-Wizard to download the event recorder data from both ECUs and to save this hex dump into an XML formatted file.
Page 41: Data Logger File (Full Flight Time)
AE300-Wizard Revision: 41 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Data Logger File (Full Flight Time) 8.2.3 Each AE300-ECU contains non-volatile flash memory storage (called RecMng-Flash) which is used to store 16 channels of signals. These signals are being sampled at an interval of 1 second as long as the ECU is powered up.
Page 42 Document No.: AE300-Wizard Revision: 42 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Steps: 1) Connect to ECU 2) Select «Engine Logs» tab 3) Click on Save DataLog button 4) Select file name for the data logger file (“DataLog_YYYYMMDD.ae3) 5) Press Save to store the compressed and encrypted DataLog in “My Documents\Austro Engine\AE300-Wizard\HexDump”.
Page 43: Partial Data Logger File (Fraction Of Flight Time)
6) Press Save to store to “My Documents\Austro Engine\AE300-Wizard\HexDump”. Trouble Shooting 8.2.5 To help in fault finding missions, the AE300-Wizard processes and interpretations described below are recommended. Note: The following procedures assume that all precautions concerning aircraft setup (see chapter “6.3 Setting up the Aircraft”...
Page 44: Using The Fault Code Memory (Fcm)
A problem caused by the boost pressure actuator power stage or circuit. The DTC “2526” translates into “Boost pressure actuator power stage failure”. This translation will be done automatically by the AE300-Wizard when reading the FCM. For this DTC all 4 error types have been defined and have the following meaning: MAX: “Short circuit to BATT of BPA power stage output”.
Page 45 Env9: Depending on the DTC When the AE300-Wizard reads the FCM and displays the fault details it automatically con- verts the stored freeze frame data into readable physical units wherever possible (i.e. pres- sures in hPa, temperatures in °C and so on).
Page 46: Displaying Fault Details
Displaying the contents of the FCM and interpreting the fault details can be done either in- teractively by connecting the AE300-Wizard to the aircraft as described above, or offline by importing a previously downloaded “engine log” as indicated in chapter “7.1.1.2 Engine Logs Tab”...
Page 47 AE300-Wizard Revision: 47 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: By selecting a line in the fault summary window of an ECU, the detailed FCM entry will be shown: Interpretation for ECU A: Occurrence “1”...
Page 48: Clearing The Fault Code Memory
3) Click on Read Fault Code Memory button 4) Click on Clear Fault Code Memory button (to prevent inadvertent clearing of the FCM, the contents of the FCM has to be read out first, before the AE300-Wizard al- lows clearing the FCM).
Page 49: Offline Analysis Using The Engine Log
Offline Analysis Using the Engine Log 8.2.7 Since AE300-Wizard version 1.1.0.xxx a functionality to import a previously saved engine log for further offline analysis is available. These engine logs have been saved in XML format with a name of the form “Engine_Log_YYYYMMDD.xml”.
Page 50: Displaying Engine Operational Statistics
Revision: 50 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: 8) Faults are to be selected on the left hand page and the corresponding details are then displayed on the right hand page 8.2.7.2 Displaying Engine Operational Statistics The content of the engine statistics counters will be presented in the same way as it would be seen in interactive mode.
Page 51: Offline Analysis Using The Event Recorder
Chapter “8.2.2 Event Recorder File” explains how to download the event recorder data from the RecMng-Flash and how to save it into a hex dump file. Chapter “7.1 Offline Mode” explains the “offline” mode of the AE300-Wizard (without a USB/CAN-adapter dongle connected to it) which can be used to import the event recorder hex dump file downloaded from the aircraft earlier in the convenience of an office desk and without draining the aircraft battery like during an interactive (live) diagnostic session.
Page 52: The Event Recorder Window
Dept.: Type: 8.2.8.1 The Event Recorder Window The previous steps will cause the AE300-Wizard to read in and interpret the selected event recorder hex dump file and to open a new window displaying the result (combining data from both ECUs):...
Page 53: Using Filters In The Event Recorder
Revision: 53 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: 8.2.8.2 Using Filters in the Event Recorder Filtering event records can be realized by using the “Set View Filter” button at the bottom end of the “Event Recorder” window. Pressing this button will result in a new fully scalable window: The “Events Filter”...
Page 54: Offline Analysis Using The Data Logger
RecMng-Flash and how to save it into a hex dump file. Chapter “7.1 Offline Mode” on page 25 explains the “offline” mode of the AE300-Wizard (without a USB/CAN adapter dongle connected to it). Which can be used to load and analyze...
Page 55: Saving Data Logger Displays As Screenshots
Dept.: Type: The Data Logger Window The previous steps will cause the AE300-Wizard to import and interpret the selected data logger hex dump file and to open a new window displaying the result (combining data from both ECUs): Time axis:...
Page 56 AE300-Wizard Revision: 56 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Example 1 (negative-G event): Barometric air pressure Rail pressure Clicking on a point of the signal displays a full time stamp and the physical value of the signal at that point in time (e.g.
Page 57 E4.08.09 Document No.: AE300-Wizard Revision: 57 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Example 2 (normal take-off): Lead-in Propeller speed Power lever position Combined engine status Time line from left to right: Lead-in: At 20.4.2009 13:58:53 (UTC), means ECU-A was powered up and initialized at...
Page 58: Live View
1.2.0.xxx the files where saved in XML format and a name of the form “LiveView_YYYYMMDD.xml” or “LiveView_Config_YYYYMMDD.xml”. Hint: Since AE300-Wizard version 1.3.4.xxx it is possible to record up to 74 signals per ECU. The maximum number of signals that can be recorded at once depends on the performance of the used PC.
Page 59 Document No.: AE300-Wizard Revision: 59 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Steps: 1) Connect to ECU 2) Select «Live View» tab 3) Select sample interval (default = 0.1s) 4) Select up to 52 signals per ECU, e.g. ECU-A:...
Page 60 Document No.: AE300-Wizard Revision: 60 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Steps continued: 7) Press the “Record” button to start recording session: 8) Select a file name 9) Click on the Save button...
Page 61: Live View - Expert Mode
Austro Engine expert may require access to auxiliary signals which have no name as- signed and are not part of the list of 158 signals defined in the AE300-Wizard. Application of this functionality is outside of the scope of this user guide and is meant to be used only under the guidance of an Austro Engine design engineer.
Page 62 AE300-Wizard Revision: 62 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type:  Boost-pressure test (e.g. after repairs of the turbo charger or air intake system)  Power lever test (e.g. to aid with power lever sensor adjustments) ...
Page 63: Live View - Online Analysis Using User-Defined Measurements
AE300-Wizard Revision: 63 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Live View – Online Analysis Using User-Defined Measurements 8.3.3 This Live View mode of operation is very similar to the previous “Pre-Defined Measurement”...
Page 64: Live View - Offline Analysis
(standard/user), sample interval and signal sets for recurring measurements. Steps: 1) Enter “offline” mode by running the AE300-Wizard without CAN adapter 2) Go to «Live View» tab 3) Select desired sample interval and mode (47 standard or 158 expert signals)
Page 65: Live View - Importing Live View Recordings
8.3.4.2 Live View – Importing Live View Recordings Live View recordings saved during previous sessions can be analyzed offline using the AE300-Wizard without a CAN adapter, by a maintenance technician at the office or by an Austro Engine expert in case of escalated situations.
Page 66: Live View - Analyzing Live View Recordings
Revision: 66 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: 8.3.4.3 Live View – Analyzing Live View Recordings Live View recordings imported as explained above can be analyzed very similar to the offline analysis of Data Logger recordings.
Page 67: Live View - Working With Austro Engine Support
Austro Engine “After Sales” support. 8.3.5.1 “LiveView-Config” Files Configuration files may be sent to the local service center by the Austro Engine representa- tive with the request to import it into the AE300-Wizard in order to collect data from special measurements. Steps: 1) A configuration file has been received by email or download 2) The “LiveView-Config”...
Page 68: Iqa Codes
For smooth running and predictable engine power the AE300 EECU has to know the injection behavior of each individual injector (indicated by its IQA code) for each cylinder position. The AE300-Wizard’s IQA functions described below support the maintenance organizations in their documentation, installation, trouble shooting and repair tasks.
Page 69: Reading Iqa Codes
Document No.: AE300-Wizard Revision: 69 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Reading IQA Codes 9.1.2 This allows to see the IQA codes currently stored and used by the EECU. Steps: 1) Enter “Qualified Maintenance” mode 2) Select «IQA»...
Page 70: Saving Iqa Codes
For documentation purposes or to be able to reuse the IQA codes (e.g. in case of EECU re- placement) it is recommended to save the IQA codes read from an EECU into a file. Since AE300-Wizard version 1.2.0.xxx the IQA data files are compressed and encrypted with a name of the form “IQA_eng-serial_YYYYMMDDhhmmss.ae3” while prior to version 1.2.0.xxx the files where saved in XML format and a name of the form...
Page 71: Entering Iqa Codes
AE300-Wizard Revision: 71 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Entering IQA Codes 9.1.4 When a new injector has to be installed, the IQA data of this injector has to be entered at the corresponding cylinder position.
Page 72: Scanning Injector Iqa Codes
1) DataMatrix code 2) IQA Code A special handheld scanner is available from Austro Engine, which has been programmed for this situation (size, contrast and lighting) and will scan the DataMatrix field, extract the IQA code from the data stream read and send the resulting 6 letters/numbers via USB to the PC system running the AE300-Wizard.
Page 73: Eecu Replacement
If the new EECU shows a “real” IQA code, chances are, the EECU has been initial- ○ ized with the IQA codes on file at Austro Engine for this engine serial number. If the new EECU shows a “not set” in the IQA code fields, the EECU has to be initial- ○...
Page 74 AE300-Wizard Revision: 74 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: 4) Load the IQA data file saved from the previous EECU 5) Click on Load IQA data from file button 6) Select “Wizard files” or “XML” format...
Page 76: Eecu Software Update
The AE300-Wizard performs pre and post update checks as well as automatic retries to help and guide the maintenance technician through the update process and final decision making.
Page 77 Connect the AE300-Wizard to the CAN bus of the engine to be updated. Load the desired (usually the latest) flash container (FCT) file into the AE300-Wizard. The AE300-Wizard will then use the information from the FCT to check if it is possible to update the EECU with this specific FCT.
Page 78: Detailed Steps Of The Software Update Process
10.3 The EECU software update process consists of the following steps which are performed by using the AE300-Wizard «Update SW» tab. Before starting the update process, the flash container file (FCT) received should be copied into the standard folder holding software update related files.
Page 79 E4.08.09 Document No.: AE300-Wizard Revision: 79 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: 7) After a successful software update the following GREEN MESSAGE BOX will be shown: Note the name of the “Flash_Autosave_Engine_Log_YYYYMMDD_hhmmss.ae3”...
Page 80 80 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: To document the successful software update, the following three files are required: 1. Engine data (i.e. serials, HW and SW versions) before the software update:...
Page 81 Dept.: Type: 8b) If the information in the MESSAGE BOX after an unsuccessful software update asks to call “Austro Engine After Sales” for support – please do so and do not re- lease the engine in question back to service.
Page 82: Software Update Retry
If the AE300-Wizard is not able to establish connection to any of the ECUs, then it will not offer any option to continue or retry the update, but will ask the operator to contact Austro Engine “After Sales”...
Page 83: Error Handling During Software Updates
Copyright © 2019, Austro Engine GmbH Dept.: Type: Error Handling during Software Updates 10.5 The AE300-Wizard uses several methods to ensure successful completion of the update pro- cess or to guide the maintenance technician through situations of unsuccessful attempts or aborts. Pre-Flash Conditions 10.5.1 As indicated in chapter “10.2 Overview of the Software Update Process”...
Page 84: Aborts
Type: Aborts 10.5.3 The reasons for an abort can be grouped into three areas and the AE300-Wizard will report the reason for the specific abort to the maintenance technician and will suggest the next step. Not meeting all of the pre flash conditions will lead to an abort without even attempting the software update session.
Page 85: Unsuccessful Completion
Depending on the type of problem detected by the AE300-Wizard, the information in the message box will either suggest a manual restart of the software update by the maintenance technician, if this is a viable option, or will ask the technician to call Austro Engine for sup- port in determining further actions.
Page 86: Successful Completion
Successful Completion 10.5.5 After an uninterrupted software update session the AE300-Wizard will perform a number of post flash checks (checksums, flash memory related FCM entries, consistency of ECU-A and –B, etc.) to verify success of the update session on both ECUs.
Page 87: Calling For Support
Austro Engine “After Sales” support for help. Saving Failure Information 11.1 Austro Engine “After Sales” and engineering support asks its customers to assemble the fol- lowing failure related data files before calling for support: First Step – Engine Log 11.1.1 As described in chapter “8.2.1 Engine Log File”...
Page 88: Appendices
E4.08.09 Document No.: AE300-Wizard Revision: 88 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Appendices Error Messages of the AE300-Wizard 12.1 List Details – Freeze Frame 12.2 Combined Engine Status 12.2.1 Description 1 = engine status “afterrun”...
Page 89: Details - Liveview
E4.08.09 Document No.: AE300-Wizard Revision: 89 of 89 Page: Electric/Electronic User Guide Copyright © 2019, Austro Engine GmbH Dept.: Type: Details – LiveView 12.4 Self-Test Timeout Flags (SlfTst_stTOutErr) 12.4.1 Description 1 = timeout while waiting for a successful tester intervention (max 1 sec)
