Summary of Contents for THERMAL FLOW Delta 175

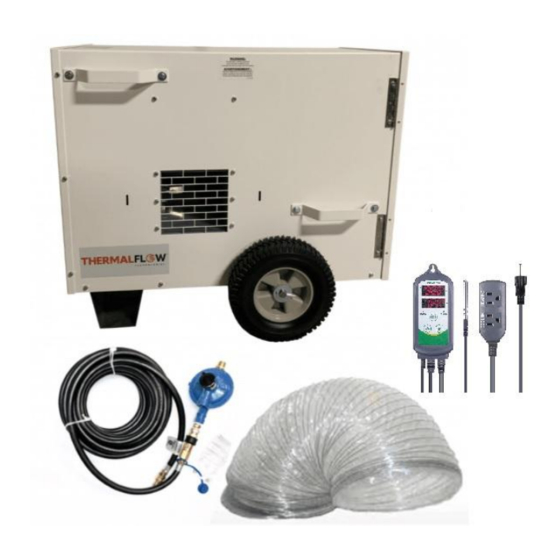

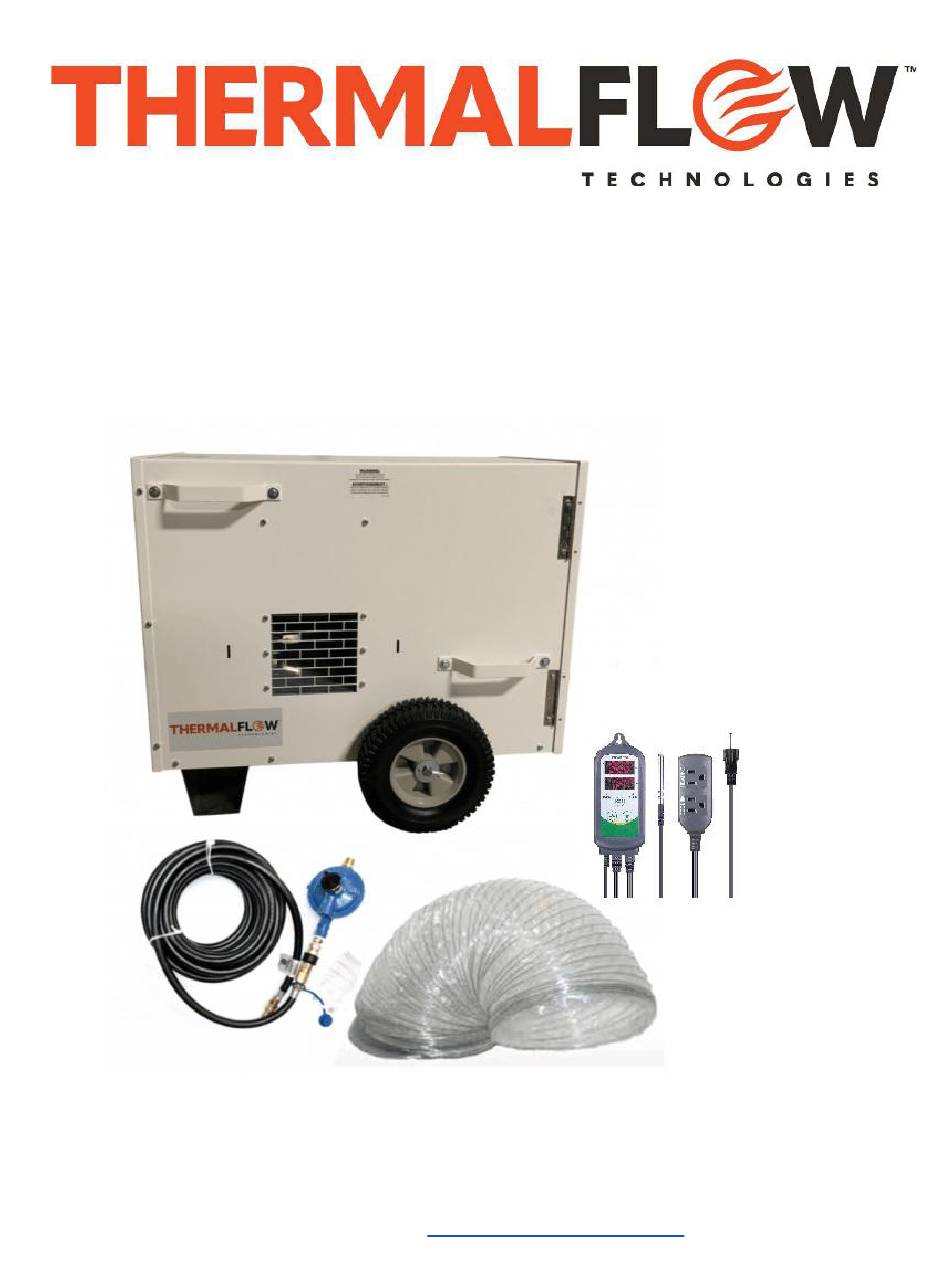

- Page 1 Delta 175 Propane Bed Bug Heater Operating Instructions Manual Thermal Flow Technologies 69 Progress Ct. Moscow Mills, MO 63362 833-401-3569 www.thermalflowtech.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS General Hazards & Warning………………………………………………………………...…2 System Description…………………………………………………………………………..…3 Heater Specifications…………………………………………………………………………...4 Start Up Instructions…………………………………………………………………………….5 Safety……………………………………………………………………………………………..9 Troubleshooting………………………………………………………………………………..10 FAQs…………………………………………………………………………………………….12... -
Page 3: General Hazards & Warning
THIS HEATER. IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS MANUAL, LABEL, ETC. SCAN THE QR CODE ON THE HEATER OR CONTACT THERMAL FLOW TECHNOLOGIES DIRECTLY. ! WARNING: FIRE, BURN, INHALATION, AND EXPLOSION HAZARD, KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER, OR CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY THE INSTRUCTIONS. -
Page 4: System Description
SYSTEM DESCRIPTION The Delta 175 Propane Bed Bug Heater is designed for commercial use in thermal pest remediation. It is intended for use in providing portable, temporary heat to buildings under construction, alteration or repair. Adequate ventilation must be provided while the heater is operating. -
Page 5: Heater Specifications
HEATER SPECIFICATIONS... -
Page 6: Start Up Instructions
START UP & SHUT DOWN INSTRUCTIONS Connecting the Heater to the Thermostat & Power 1. You will need two 12-gauge extension cords to complete steps 2 - 6. 2. The heater has a short black power cord coming off of it. The first step in connecting the thermostat to the heater is to plug the short black power cord coming off the heater into the female end of one 12-gauge extension cord. - Page 7 Attach Duct Adapter and Duct 7. Next, connect the duct adapter to the heater by inserting the two small hooks on the adapter into the two small slots on the side of the heater. Attach the mylar duct to the duct adapter with the provided metal strap. 8.
- Page 8 10. Connect the 50’ gas hose to the machine by sliding the female quick connect pictured below over the male connection on the heater. 11. Insert the male connection to the female quick connect on the regulator. 12. Return to the propane tank/s & slowly open the valve on the tank to prevent the safety fitting from locking out gas flow to the gas line.
- Page 9 13. Slowly open the shutoff valves on all connected tanks to release the flow of gas through the regulator and to the heater. Make sure the shutoff valve handle is parallel with the gas hose. Turning the Heater On 14. Flip the fan switch up to the “on” position, then flip the burner switch to the “on” position.
-
Page 10: Safety
SAFETY REQUIRED 1. A fresh air source is when operating the unit inside the treatment space. Be sure to have an adequate air source by connecting a section of ducting 8” in diameter or larger, to the rear grated panel of the machine and running the connected ducting outside of the structure. -
Page 11: Troubleshooting
TROUBLESHOOTING PLEASE NOTE: In order to facilitate troubleshooting, unit panels have been removed in some of these pictures for ease of identification only. All panels and fasteners must be in place as provided by the manufacturer to ensure the safe and efficient operation of this gas fuelled appliance. - Page 12 PROBLEM: BURNER TURNS ON & OFF REPEATEDLY. POSSIBLE CAUSE: Reverse polarity, or bad/no ground from power source. REMEDY: Switch outlets, ensure only the green light on the heater is illuminated. POSSIBLE CAUSE: Kink or block in gas line. REMEDY: Unkink or unblock gas line. POSSIBLE CAUSE: Faulty On-Off switch.
-
Page 13: Faqs
Home Depot, and most local hardware stores.) ● Two 12-gauge extension cords, one for the heater, and one for the thermostat What size propane tanks do I need to use with my Delta 175 Propane Bed Bug Heater heater? ● 3 thirty-pound tanks or greater... - Page 14 thermostat. DO NOT attempt to plug into the “thermostat” connection on the heater itself. b. Next, you'll take male end of the long black power cord coming off of the thermostat and plug that into the female end of the second extension cord. c.
