Summary of Contents for Sveaverken Intelligent Technology SSHL175s

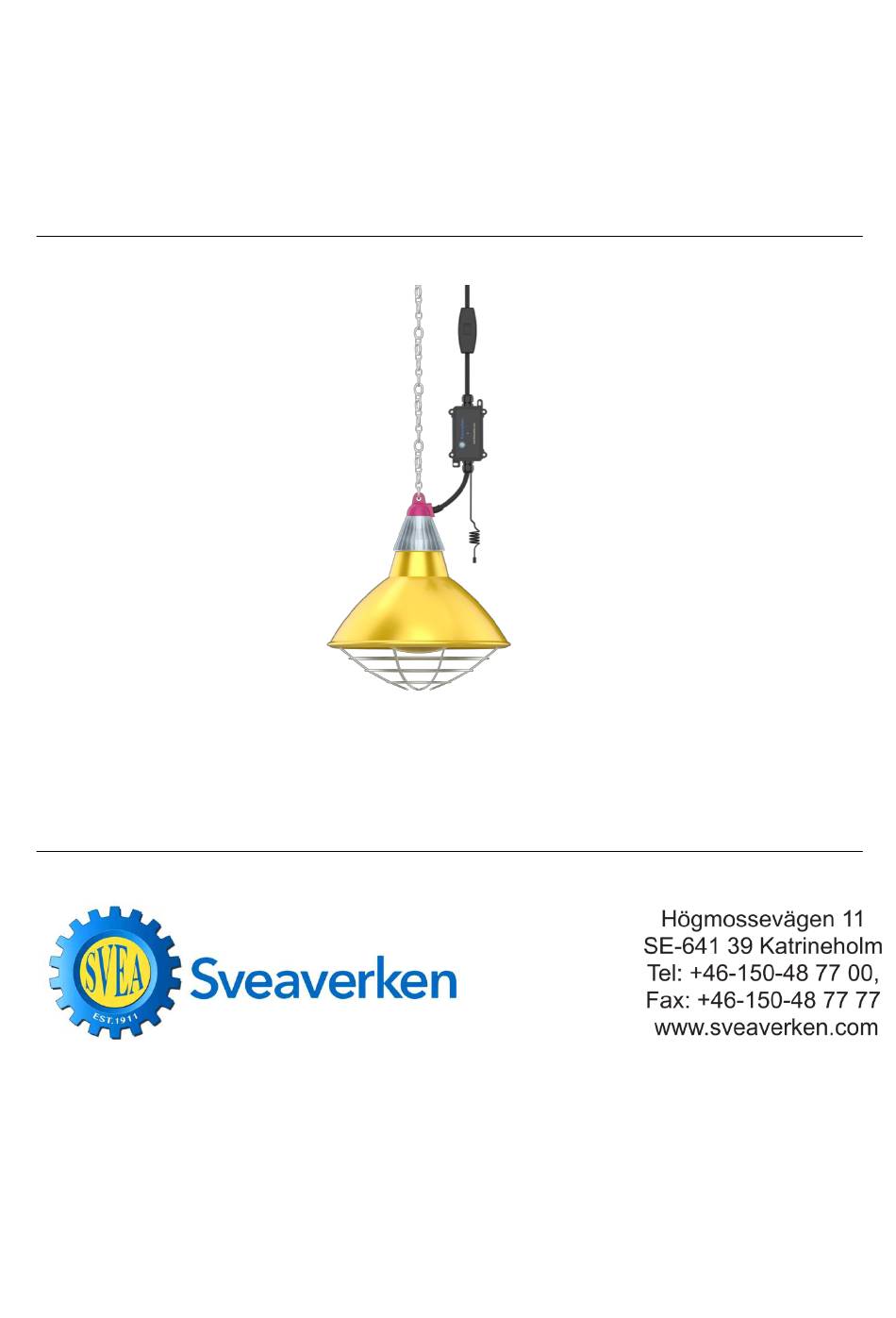

- Page 1 User Manual for Sveaverken Intelligent Heat Lamp SSHL175s Sveaverken Intelligent Technology (Shenzhen) Co., Ltd.
-
Page 2: Table Of Contents
User Manual for Sveaverken Intelligent Heat Lamp Table of Contents I. Safety Precautions ........................... 1 II. Product Introductions ........................2 III. Specifications ..........................2 IV. Device Installation .......................... 3 1. Device Composition ......................3 2. System Architecture ......................4 3. Assembly Steps ........................4 V. -
Page 3: Safety Precautions
User Manual for Sveaverken Intelligent Heat Lamp I. Safety Precautions Note Please read this manual before installing, adjusting, inspecting, and maintaining the Intelligent Heat Lamp. Improper installation and operation may cause serious injury, for which the manufacturer will assume no responsibility! ... -
Page 4: Product Introductions
Tests show that a 175 W traditional heat lamp consumes about 1,500 watts a year, while the Sveaverken Intelligent Heat Lamp consumes only 1,000 watts a year, saving 1/3 of the cost. Executive standard: Model Executive standard SSHL175s GBT/23140-2009 III. Specifications Specifications of Sveaverken Intelligent Heat Lamp... -
Page 5: Device Installation
User Manual for Sveaverken Intelligent Heat Lamp Model SSHL175s/SSHL175 AC220V~AC240V Power supply voltage Rated power 175 W Hanging chain 2 m stainless steel Type of light source Infrared bulb Wire length 1.5 m/1.75 m/2 m/2.5 m Wire specification 0.75 cm... -
Page 6: System Architecture
User Manual for Sveaverken Intelligent Heat Lamp 1.2 Heat-resistant lamp holder, with good flame retardance and heat dissipation effect. 1.3 Aluminum alloy lamp shade, with heat-resistant coating to prevent oxidation. 1.4 Manual switch, convenient and efficient. 1.5 Intelligent control box, more intelligent and energy-saving. 1.6 Temperature probe, with high accuracy and large range. -
Page 7: App Instructions
User Manual for Sveaverken Intelligent Heat Lamp After aligning lamp hanging iron chain to the thread with the lamp base, lamp holder, and fix the turn the bulb clockwise, and other end to the hanging tighten and fix it to the lamp position;... -
Page 8: Homepage
1. Homepage 1.1 Ready-to-use in local mode without login; 1.2 Icon-based display that delivers the real-time status of devices; 1.3 Top search box where you can enter keywords to quickly select devices; 1.4. Clicking the ON/OFF icon enables you to quickly turn on/off the bulbs; 1.5 Clicking the “+”... - Page 9 Intelligent Heat Lamp Control Pad Input Device Location to Search Exception Block up Manual Auto Maintenance Device Auto mode Manual mode Auto mode Record Pigsty 01 Shed 001 Pigsty 01 Shed 001 Setting Device Switch Device Switch Device Switch Exception Maintenance Stop Mode Mode...
-
Page 10: Device Adding
Intelligent Heat Lamp Control Pad Language Setting System Language Simplified Chinese 3. Device Adding 3.1 Click “+” to display a list of nearby connectable devices 3.2 Click the device icon to complete the device information. Intelligent Heat Lamp Control Pad Add Device List of Connectable Devices Intelligent Heat... -
Page 11: Device Deletion
Intelligent Heat Lamp Control Pad Complete Device Information Device Name Intelligent Heat Lamp SN12345676 Installation Location For example Pigsty 01 Shed 001 Remarks Input Remarks Cancel Intelligent Heat Lamp Control Pad Complete Device Information The device is added successfully! After clicking Save or Add, a pop-up window will appear and go to the device management interface 4. -
Page 12: Device Management
Intelligent Heat Lamp Control Pad Delete Device Delete 1 device selected Auto mode Manual mode Auto mode Pigsty 01 Shed 001 Pigsty 01 Shed 001 Pigsty 01 Shed 001 Device Switch Device Switch Device Switch Exception Maintenance Stop Mode Mode Mode Pigsty 01 Shed 001 Pigsty 01 Shed 001... - Page 13 Intelligent Heat Lamp Control Pad Device Management Auto mode Monitor the ambient temperature and automatically adjust the light intensity based on the set birthday of pigs. Pigsty 01 Shed 001 Brthday of pigs Manual mode Keep the light intensity constant based on the set temperature or power. Work Mode Auto mode Device Stop...
-
Page 14: Information Management
Intelligent Heat Lamp Control Pad Device Management Set Time Day Repeat Pigsty 01 Shed 001 Week Repeat Monday Work Mode Auto mode End time 2:02 Start time 2:02 Setting Time Open Device Information Device Switch Confirm Intelligent Heat Lamp Control Pad Device Management Device Name Intelligent Heat Lamp SN12345676... - Page 15 Intelligent Heat Lamp Control Pad Pad Name Intelligent Heat Lamp Control Pad of Miaohong Farm Building A1 Cancel Search Intelligent Heat Lamp Control Pad Complete Device Information The device is added successfully! After clicking Save, a pop-up window will appear and go to the homepage...
